Home Laser Diode 500-600nm Laser Diode Osram 520nm 20mW PLT5 520EA-P N-type with PD / K-type without PD Laser Diode TO56
Osram 447nm 450nm 3W PLPT9 450LA-E  Laser Diode TO9
Osram 447nm 450nm 3W PLPT9 450LA-E Laser Diode TO9 $58.00 Original price was: $58.00.$38.00Current price is: $38.00.
Back to products
NEC AE0203D08F piezoelectric actuator piezoelectric displacement device piezoelectric ceramic.
NEC AE0203D08F piezoelectric actuator piezoelectric displacement device piezoelectric ceramic. $179.00 – $13,900.00Price range: $179.00 through $13,900.00

Osram 520nm 20mW PLT5 520EA-P N-type with PD / K-type without PD Laser Diode TO56

$19.00 – $79.00Price range: $19.00 through $79.00

Clear
Compare
Add to wishlist
SKU: N/A Category: 500-600nm Laser Diode
Share:
  • Description
  • Additional information
  • Reviews (0)
Description

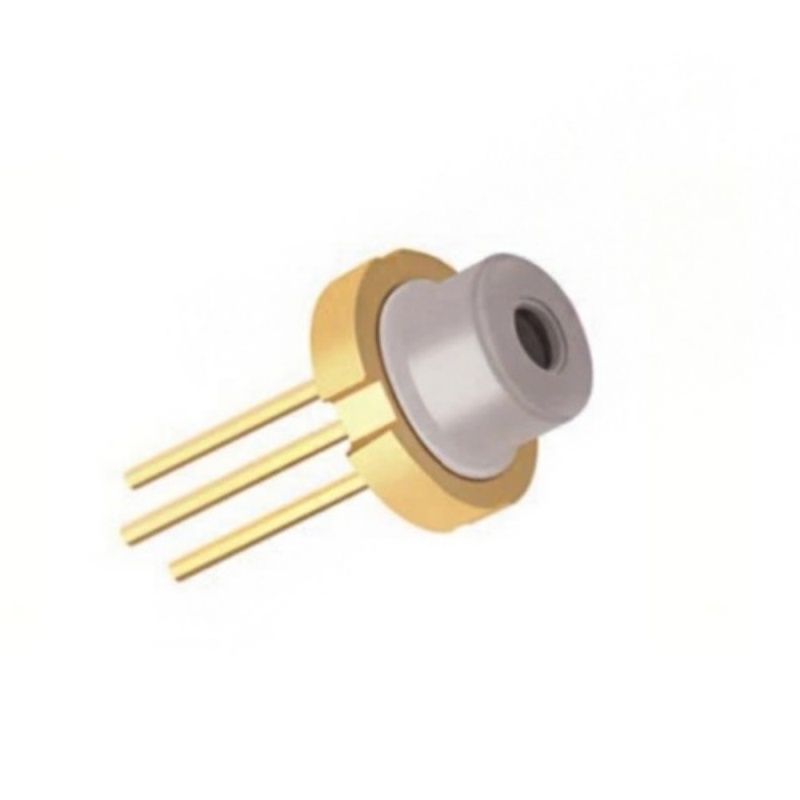

Osram 520nm 20mW PLT5 520EA-P  N-type with PD / K-type without PD Laser Diode TO56

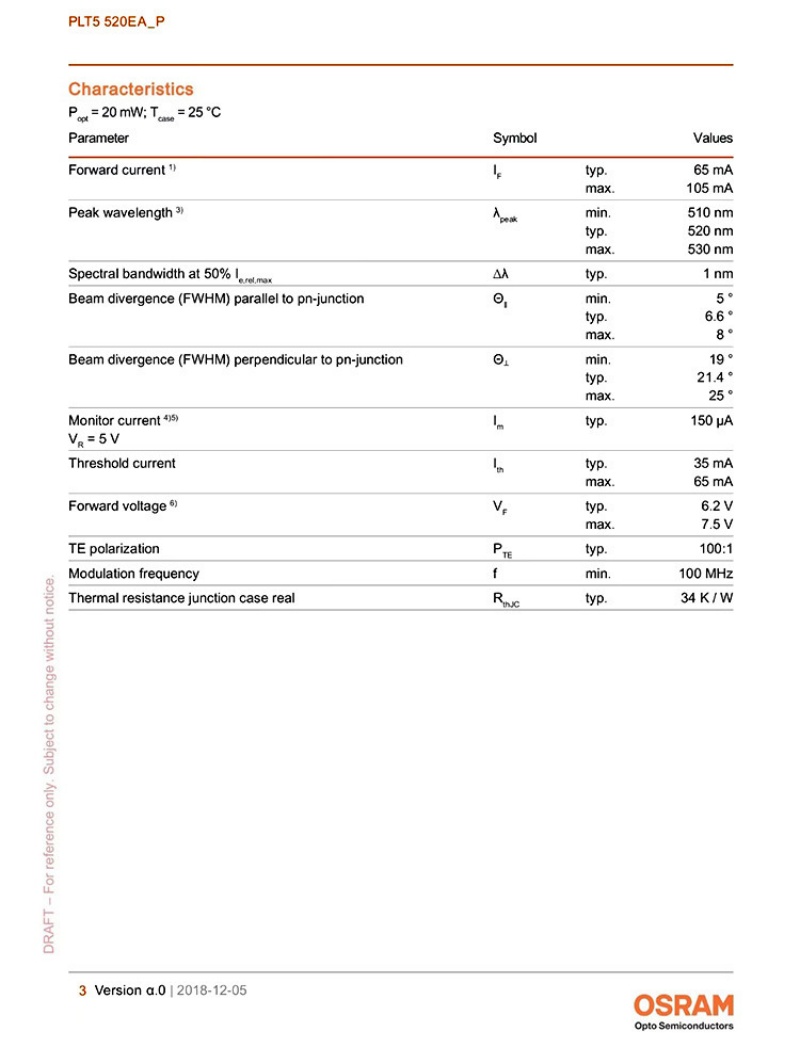

Specifications:
– Center wavelength: 520nm
– Output optical power: 20mW
– Operating current: 65 mA (typical drive current for 20mW)
– Threshold current: 30 mA, max 50 mA
– Forward voltage: 6.3 V @ 65mA
– Beam divergence: 7° (fast axis) / 22° (slow axis), single transverse mode green laser
– Current: 25 μA at VR=5V, for power closed-loop control
– Modulation bandwidth: ≥100 MHz, suitable for high-speed modulation
