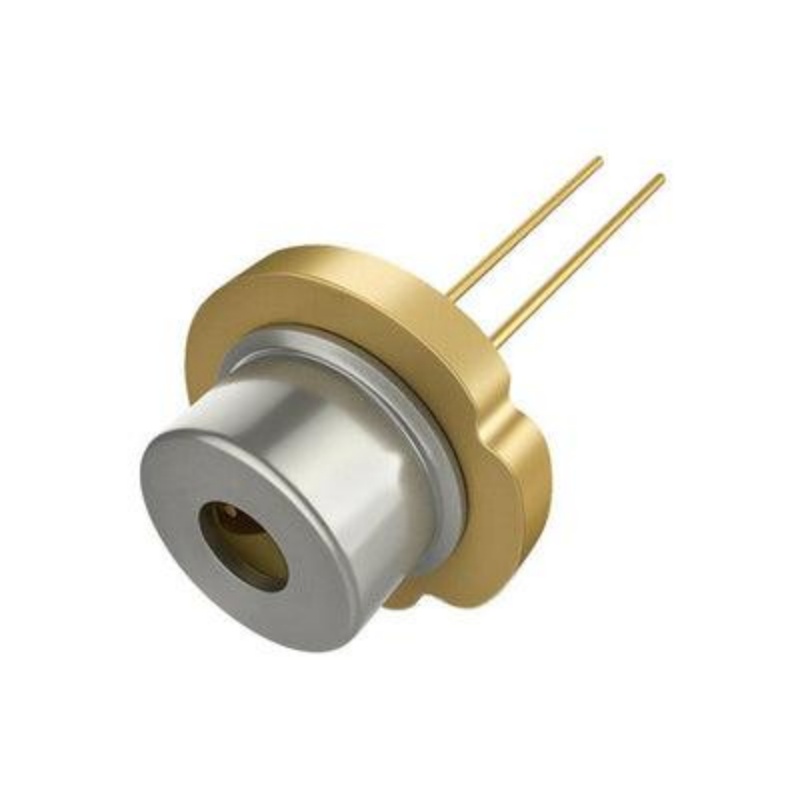

Osram 447nm 450nm 3W PLPT9 450LA-E Laser Diode TO9

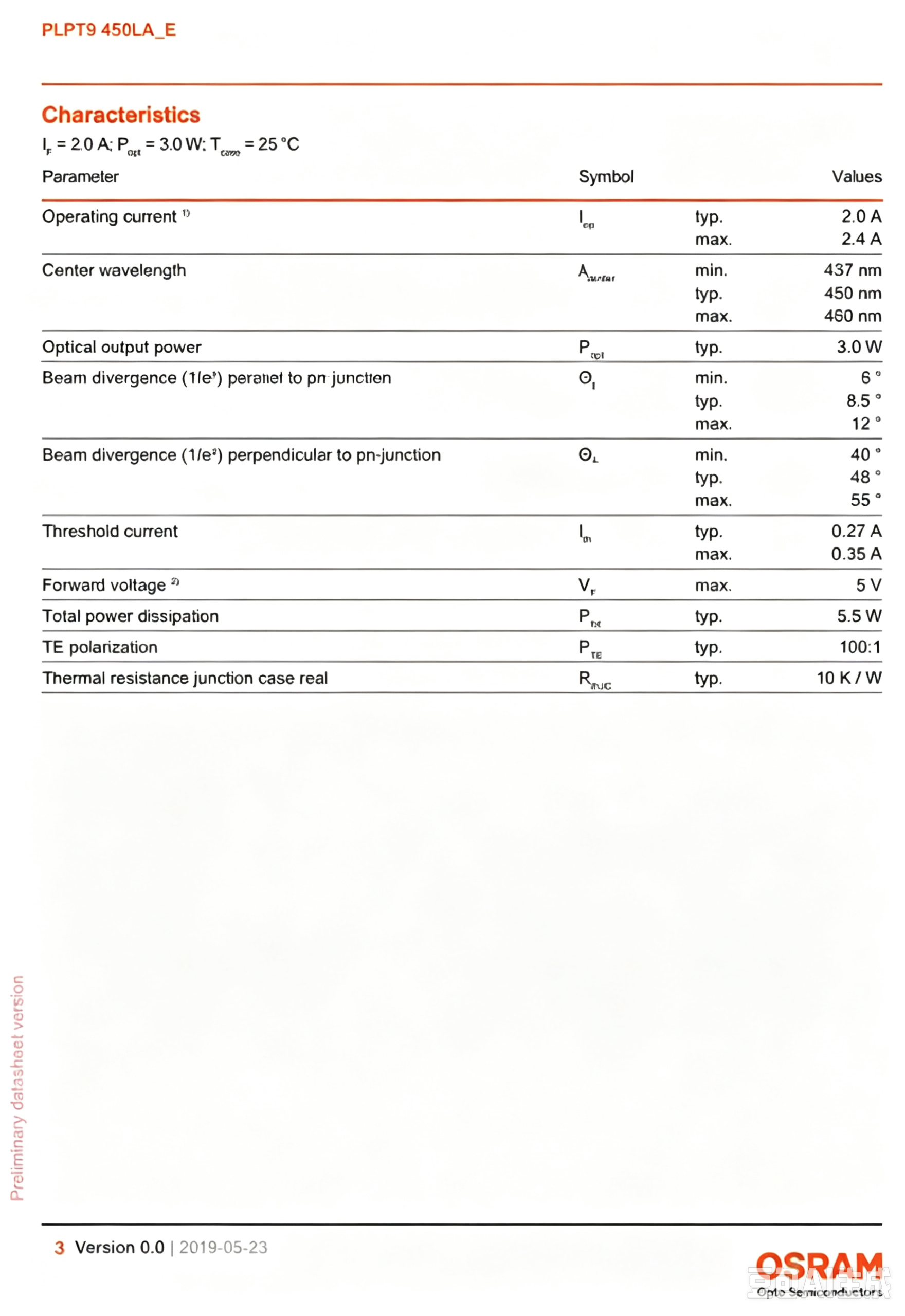

Specs:
– Center Wavelength: 447 nm
– Output Power: 3.0 W
– Operating Current: 2.0 A
– Forward Voltage: 4.3 V
– Total Power Consumption: 5.3 W
– Thermal Resistance: 10 K/W
– Beam Divergence (1/e²): Parallel to PN junction 8°; Perpendicular to PN junction 48°; Multimode blue light with elliptical spot
– Polarization Ratio: 100:1

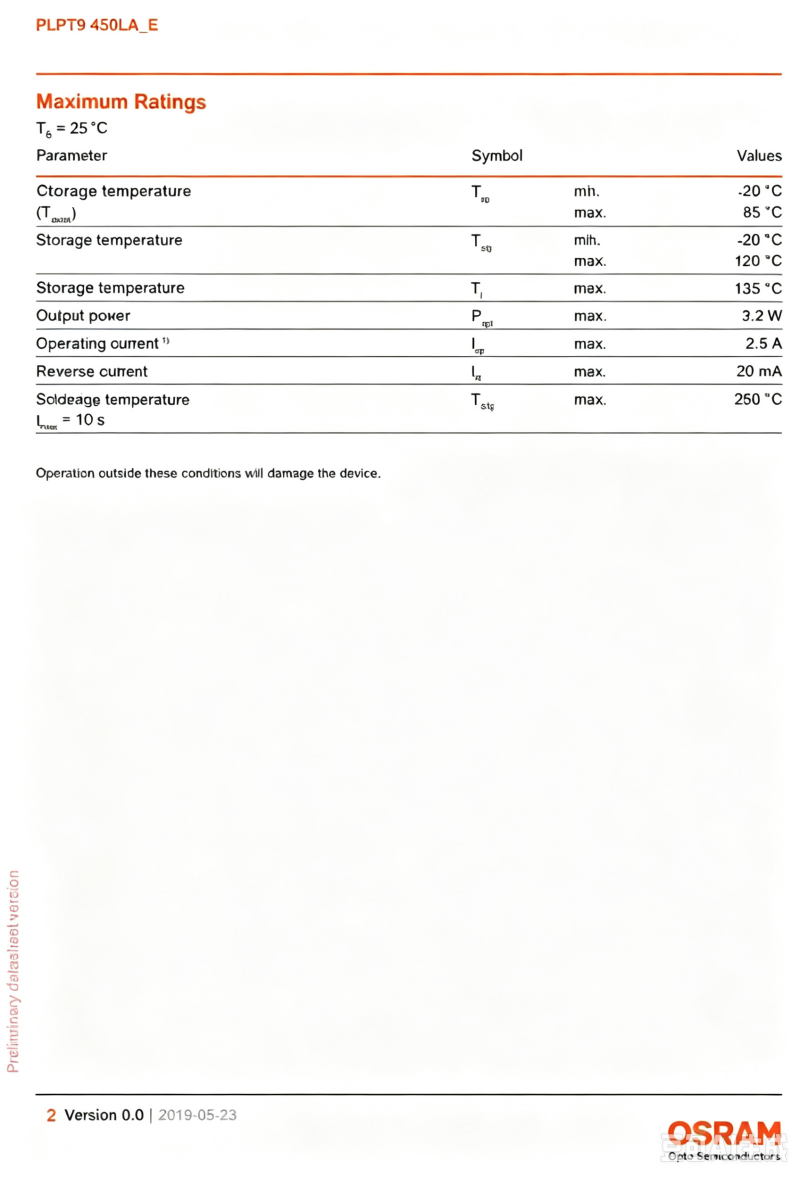

– Operating Temperature Top: -20 ~ 85 ℃
– Storage Temperature Tstg: -40 ~ 100 ℃
– Max Junction Temperature Tj max: 135 ℃ (must not exceed, will quickly degrade or burn out)
– Maximum Forward Current: 2.5 A
– Reverse Current: 20 mA
– Soldering Temperature: 260 ℃, ≤10 s
