Green 532nm 50mW 100mW 12V Dot Laser Module
Specifications:

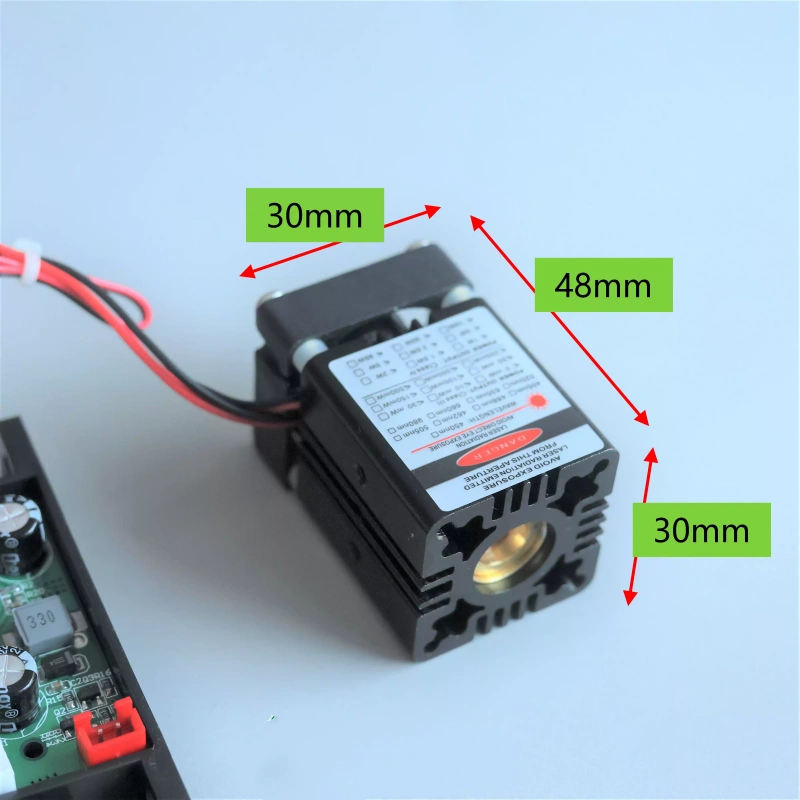

Host size: 48mm (L) x 30mm (W) x 30mm (H)
Circuit size: 72mm (L) x 35.5mm (W) x 16mm (H)
Output wavelength: 532nm
Output power: 50mW, 100mW
Cooling method: Air cooling
Modulation frequency: 1-20KHZ
Operating feature: Continuous operation
Surface finish: Black
Housing material: 6063 aviation aluminum
Circuit control: Constant current step-down
Reverse connection protection: Yes, automatically detects polarity
Operating voltage: DC 12V (10-14V)
Operating current: I < 0.6A
Warm-up time: None
Operating temperature: -10℃ ~ 50℃
Storage temperature: -40℃ ~ 80℃

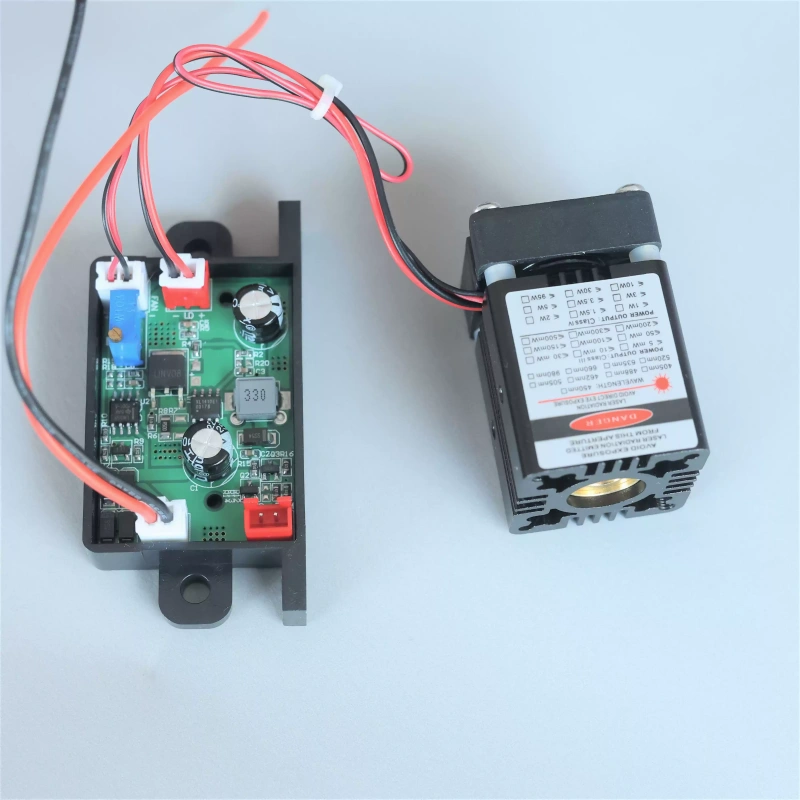

Structural features: Laser tube, lens, heat dissipation housing
Note: Power supply is external
Special reminder: Input voltage is 12V; overvoltage can instantly damage the circuit and module
