545nm 80mW 555nm 20mW 12V Dot Laser Module
Specifications:

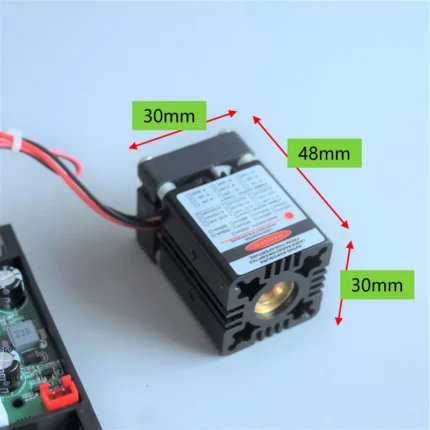

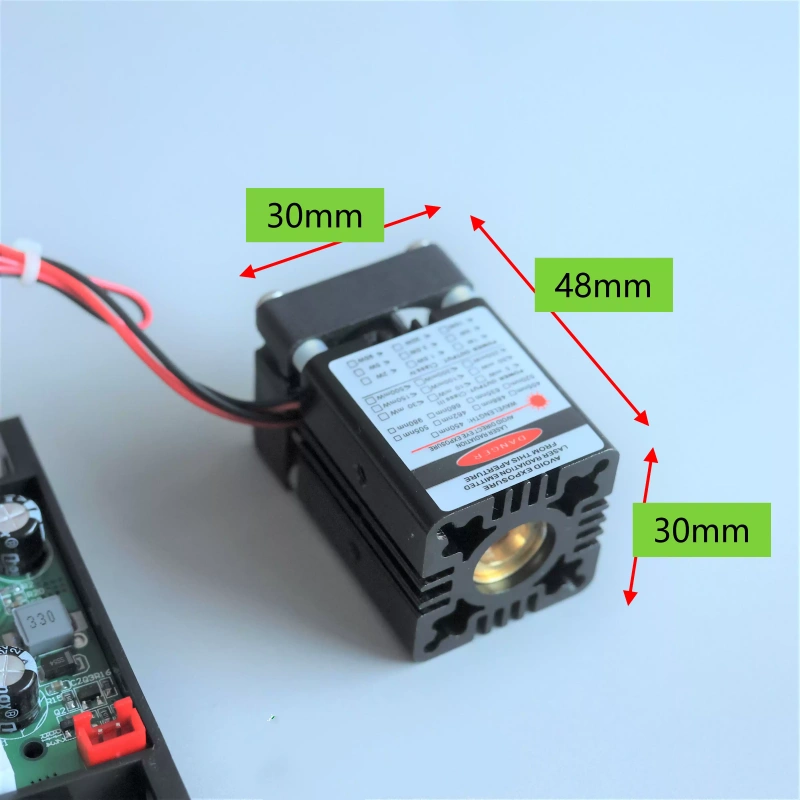

Main unit size: 48mm (L) * 30mm (W) * 30mm (H)
Circuit size: 72mm (L) * 35.5mm (W) * 16mm (H)
Output wavelength: 545nm, 555nm
Output power: 80mW, 20mW
Cooling method: Air-cooled
Modulation frequency: 1-20KHZ
Operating characteristics: Can work continuously
Surface treatment: Black
Casing material: 6063 aviation aluminum
Circuit control: Constant current buck
Reverse connection protection: Yes, automatically detects polarity
Operating voltage: DC 12V (10-14V)
Operating current: I<0.6A
Warm-up time: None
Operating temperature: -10℃ ~ 50℃
Storage temperature: -40℃ ~ 80℃
Structural features: Laser tube, lens, heat dissipation casing
Note: Power supply is external
Special reminder: Input voltage is 12V; overvoltage may cause instant damage to the circuit and module
