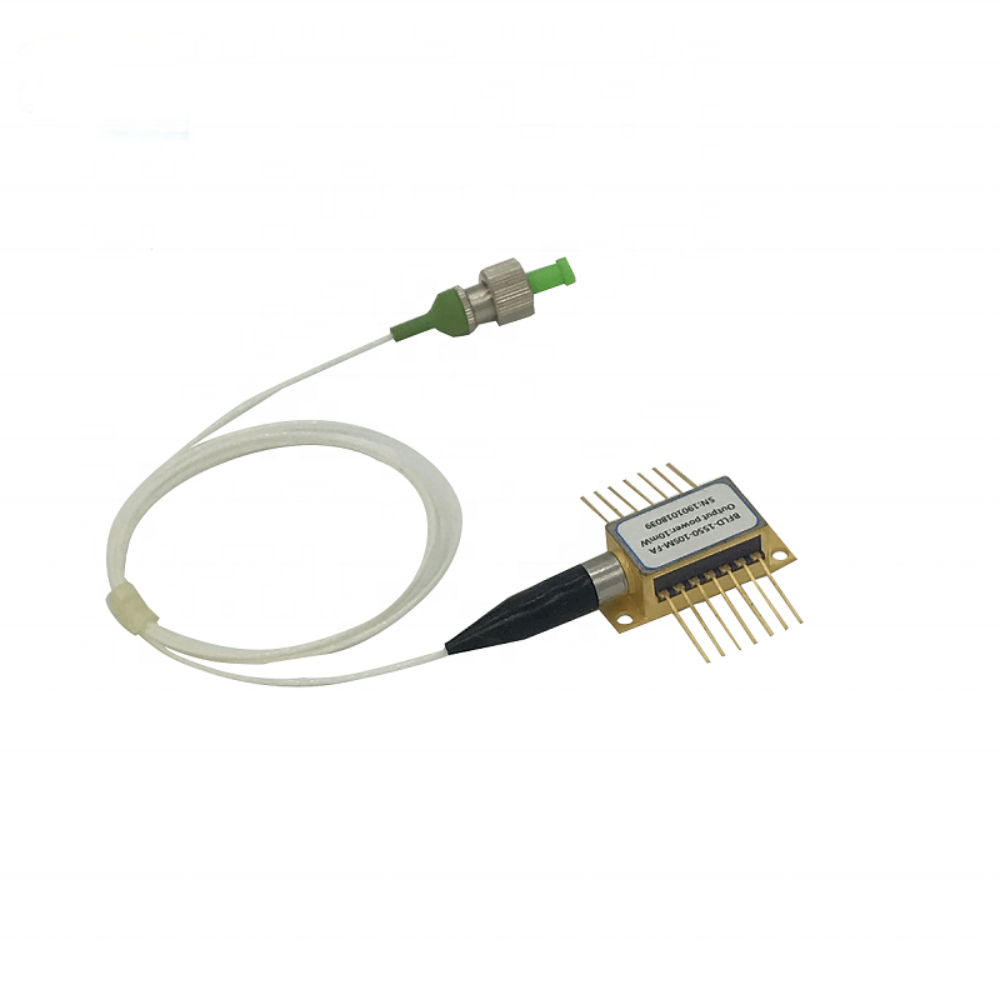

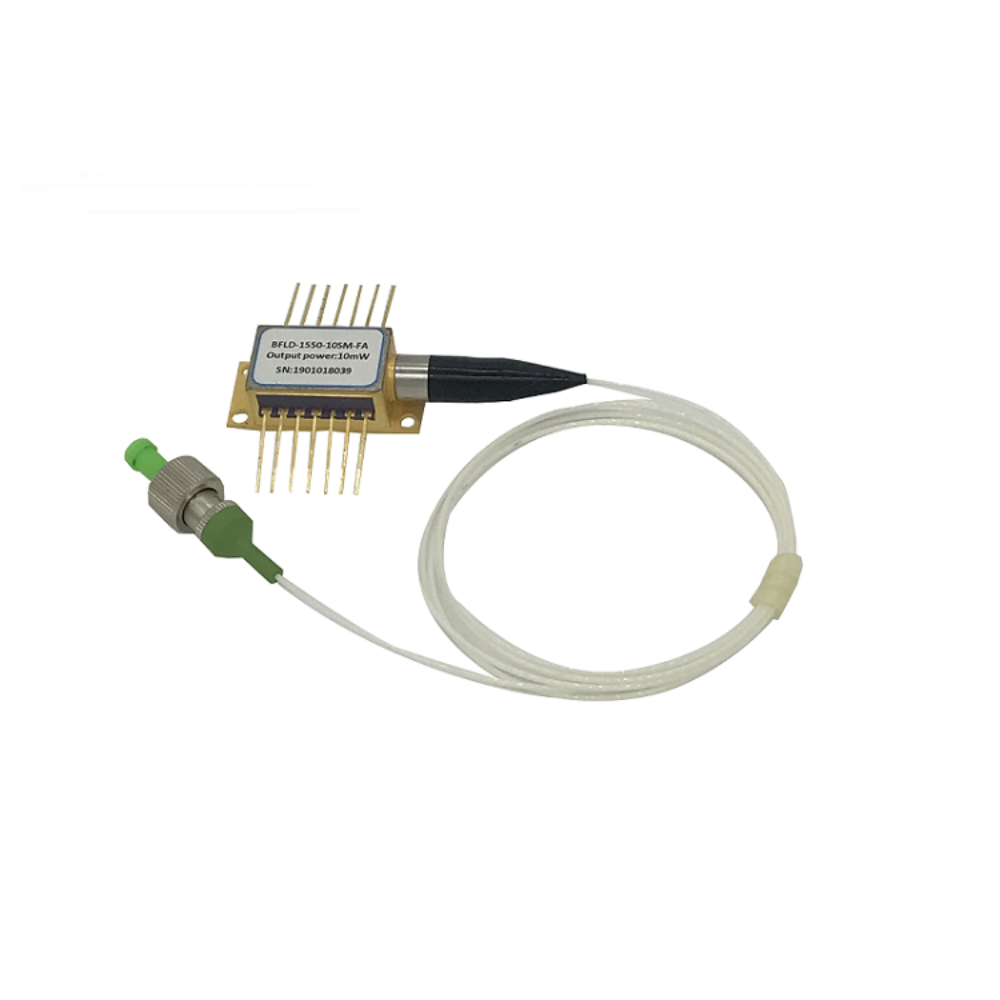

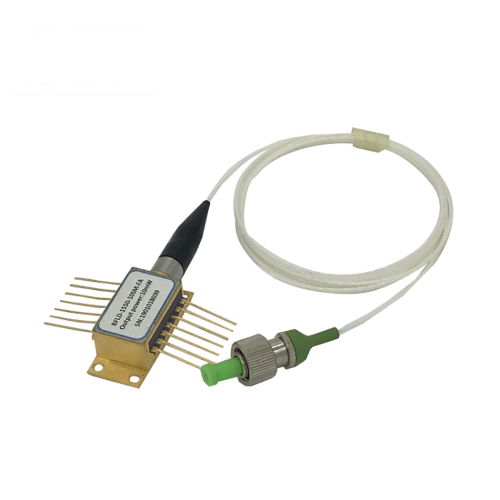

1550nm 2mW SLED 14PIN Butterfly Package  Fiber Laser

1550nm 2mW SLED 14PIN Butterfly Package  Fiber Laser

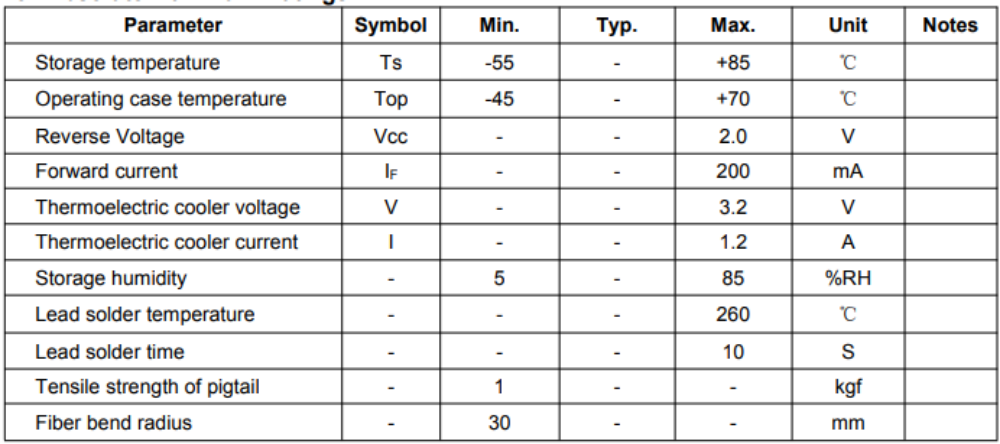

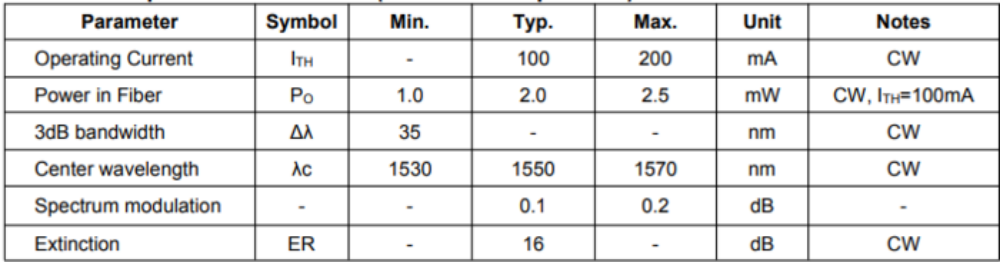

parameter:

Wavelength: 1550nm
Output power: 2mW.
Line width:3db
Fiber specification: single mode Fiber.Polarization fiber，
Forward current:200mA
Operating Voltage:2.0V
Fiber connection: FC/APC.FC/UPC.SC/APC
Chip type: SLED

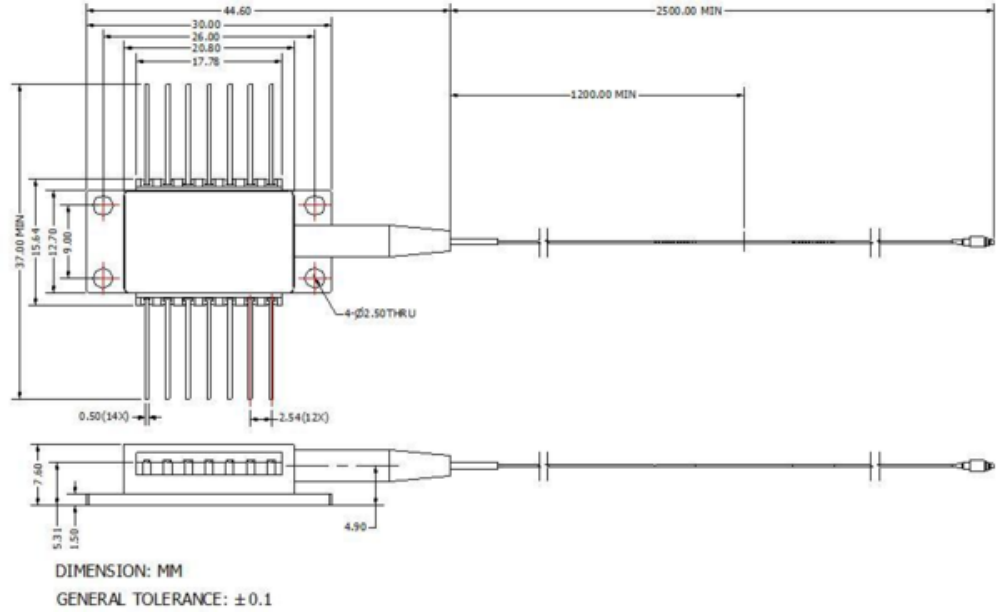

Package Type: Butterfly 14PIN

. Peculiarity:

High output power;
3dB bandwidth> 35nm;

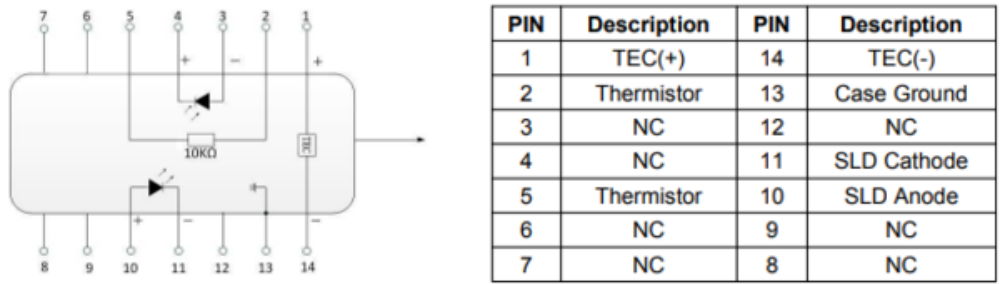

Industry standard, 14-pin butterfly package; SLED.jpg
Operating temperature: -45~+70°C;
M fiber or PM fiber pigtail. Reliability: Telcordia GR-468.

Apply:

Fiber Optic Communication Systems;
fiber optic gyroscopes;
fiber optic sensors;
optical testing instruments;
optical coherence tomography;
Biomedical imaging systems.
