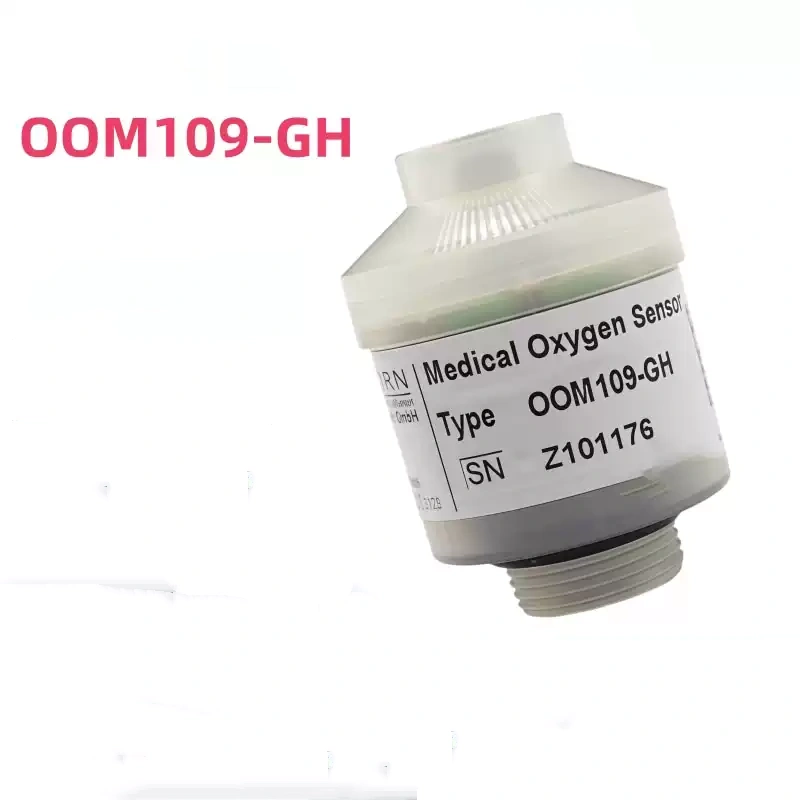

Original Honeywell EnviteC OOM109-GH Oxygen Sensor
Specs:
Brand: Honeywell
Model: OOM109-GH
Principle: Galvanic fuel cell, no power supply needed
Target gas: O₂
Measurement range: 0 ~ 100 %Vol O₂
Output (20.9% O₂, air): 9 ~ 13 mV
Response Time T90: <360 ms
Built-in: NTC thermistor, built-in temperature compensation
Repeatability: <1 % Vol O₂ (constant temperature and pressure)
Linearity error: <3% relative (0~100% O₂)
Drift: <1% Vol O₂ / month
Lifetime: ≥200,000 %Vol·hours
Operating Temp: 0 ~ 50 ℃
Humidity: 0 ~ 99% RH, non-condensing
Connector: 3-pin Molex 22-11-1031
Load resistance: ≥10 kΩ
