Large Circle with Center Point Effect Red, Green, Blue Laser Module for Laser Positioning

Large Circle with Center Point Effect Red, Green, Blue Laser Module for Laser Positioning

Specifications:
Wavelength: 650nm red laser / 520nm green laser / 450nm blue laser (optional)
Output Power: 650nm 100mW / 520nm 50mW / 450nm 100mW
Operating Voltage: DC 2.8~5.2V (customizable)
Operating Current: <500mA

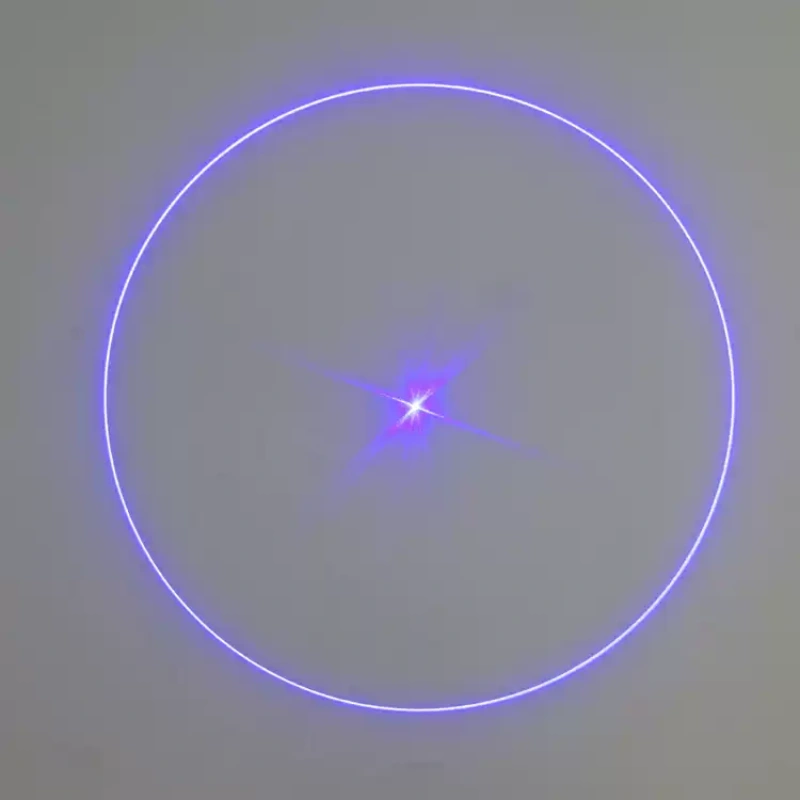

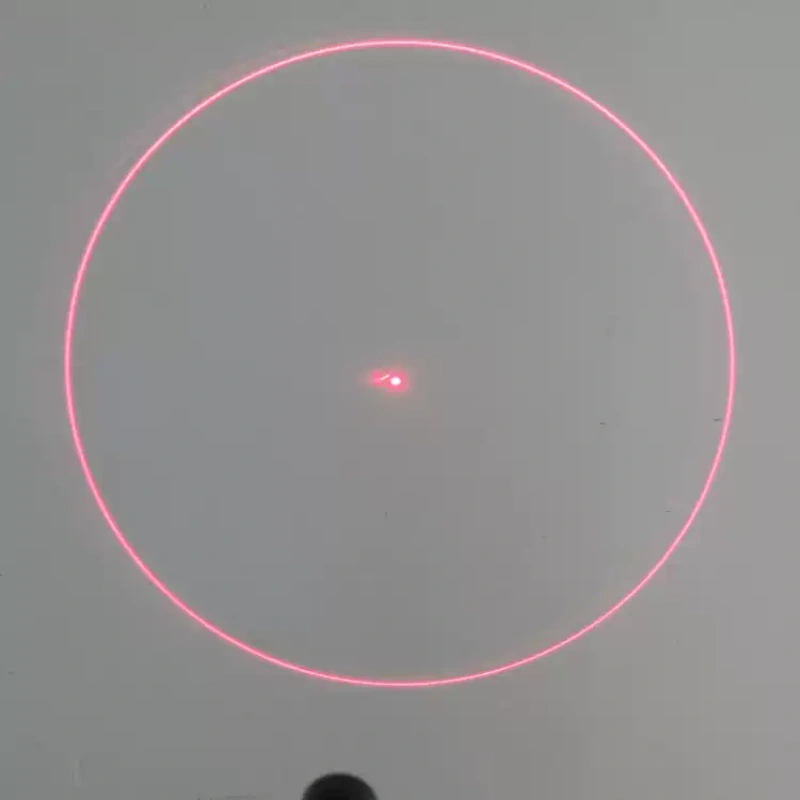

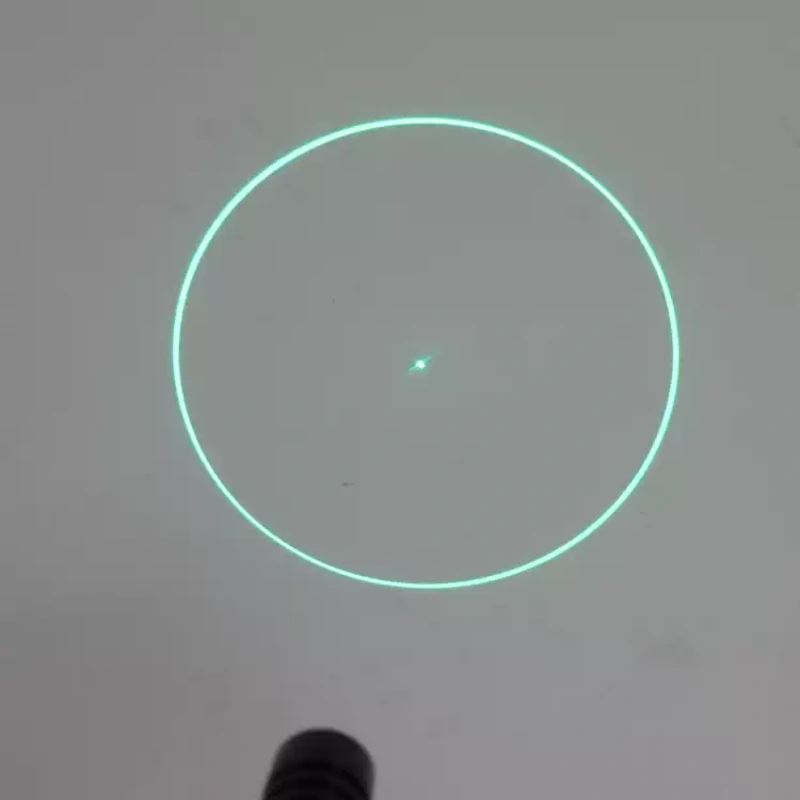

Laser Shape: 100% uniform line width and collimated line;

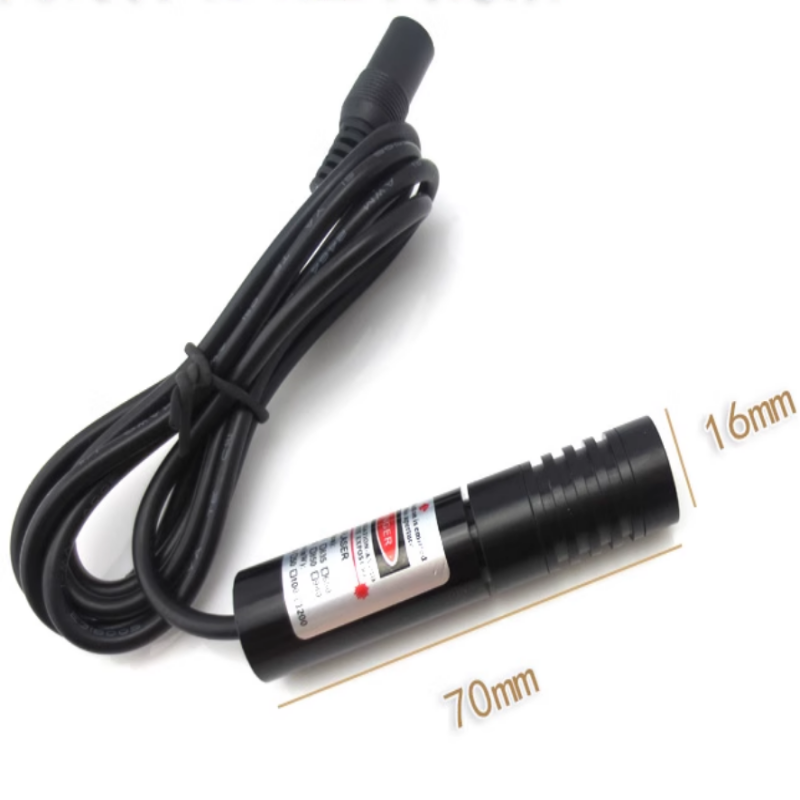

Size: φ16*70mm (customizable)
Optical Lens: Grating (imported from Germany)

34°
Circle diameter at 50cm: 31cm
Circle diameter at 100cm: 62cm
Circle diameter at 150cm: 93cm

56°
Circle diameter at 50cm: 53cm
Circle diameter at 100cm: 106cm
Circle diameter at 150cm: 159cm

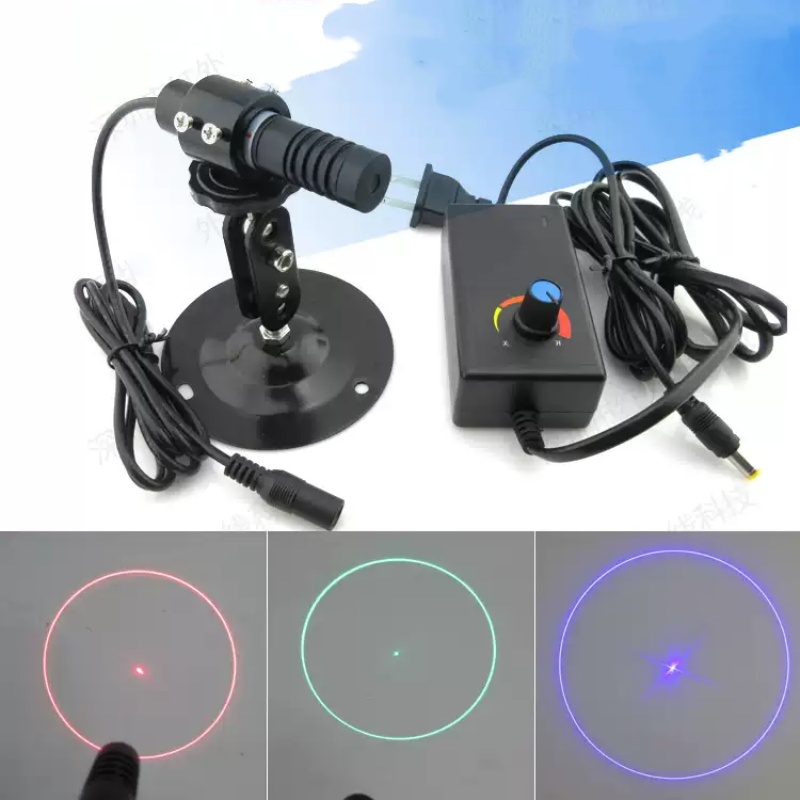

Package Includes:
1* Laser Module;
1* Laser Stand;
1* Adjustable Power Supply.
