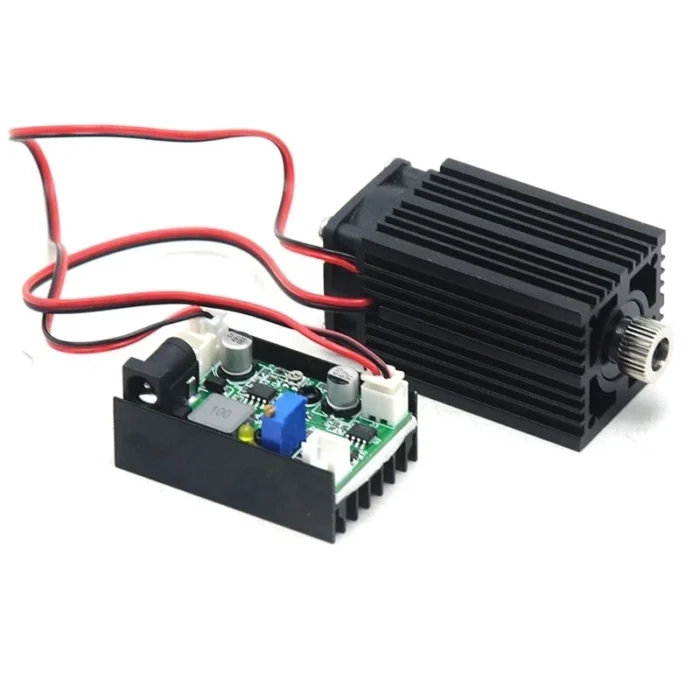

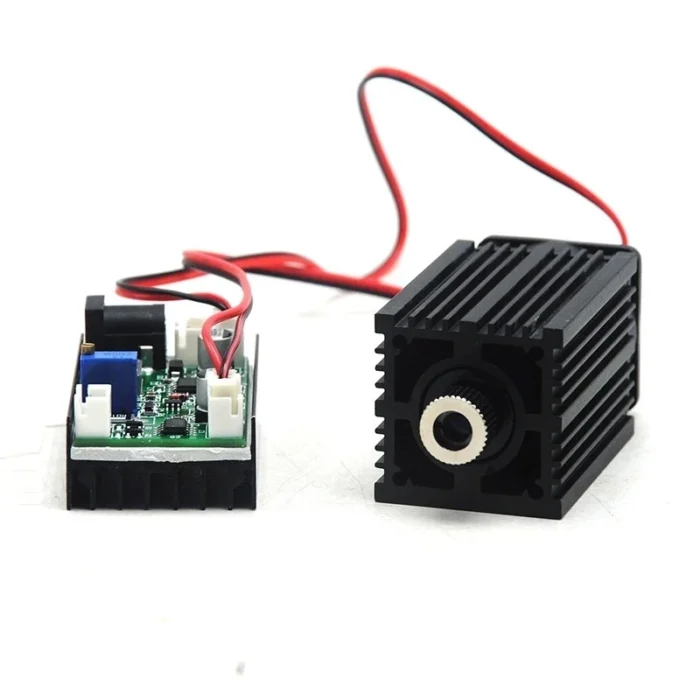

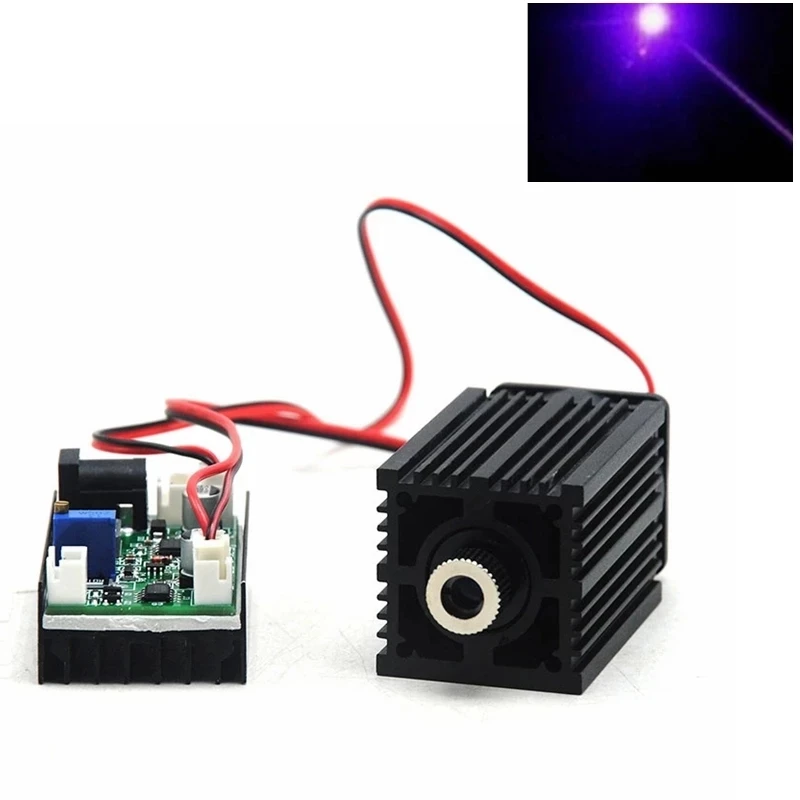

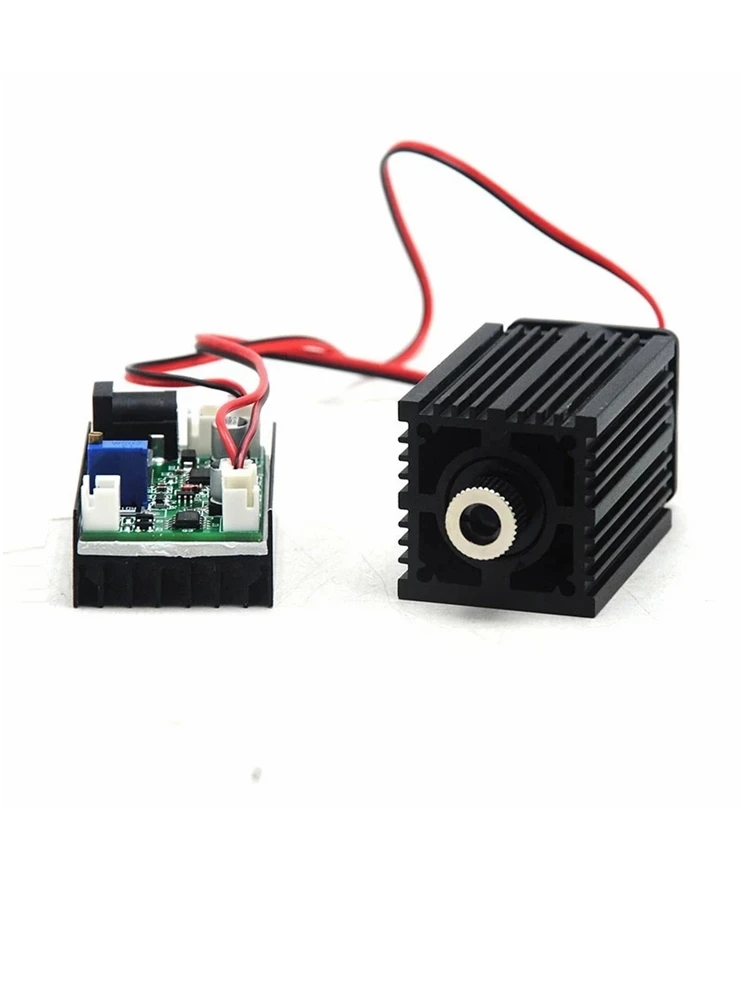

Focusable 405nm 50mW Violet Blue Dot Laser Diode Module Point Lasers 12V with 12V Driver TTL Long-time Working
- Power: 50m
- Model Number: 405nm
- Occasion: Professional Stage & DJ
- Style: DMX Stage Light
- Brand Name: Elubor
- Certification: NONE
- Item Type: Stage Lighting Effect
Parameters
Laser head size: 50mmx33mmx33mm
Circuit Board size: 45mm*34mm
Wavelength: 405nm
Output power: 50mW
Laser shape:DOT
Focusable:YES
Lens:Glass
Modulation frequency: Adujstable TTL modulation
Working:Long time working
Finish Color: Black
Case Material: Aluminum
The circuits control: constant current
Reverse polarity protection: with automatically identify the positive and negative
Operating voltage: DC = 12V
Warm-up time: None
Operating Temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃
Features

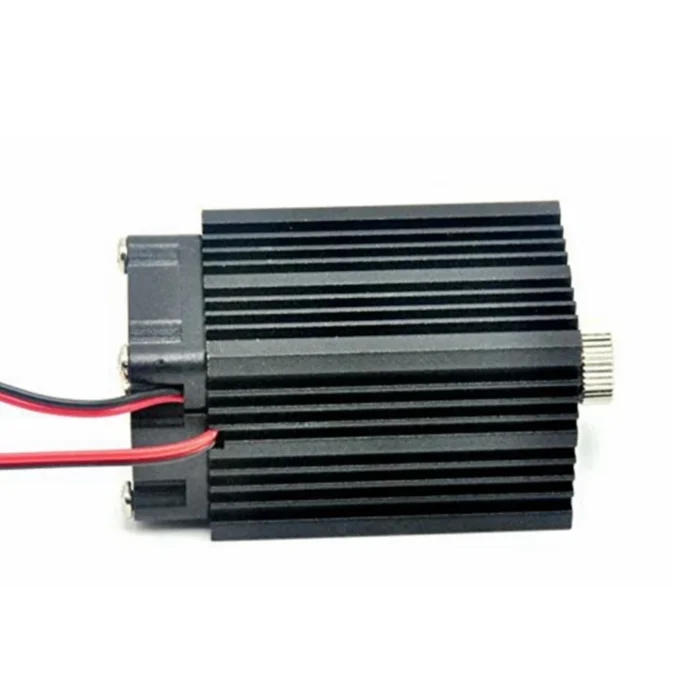

1. This laser module can work for a long time with cooling fan.But please make sure to keep the laser working under 30℃.
2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole. TTL 0V on, 3-5V off. If you don’t use TTL, please just leave the blue and white wire.
3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.
Package
1pc High Power 405nm 50mW Violet/Blue Laser Diode Module
