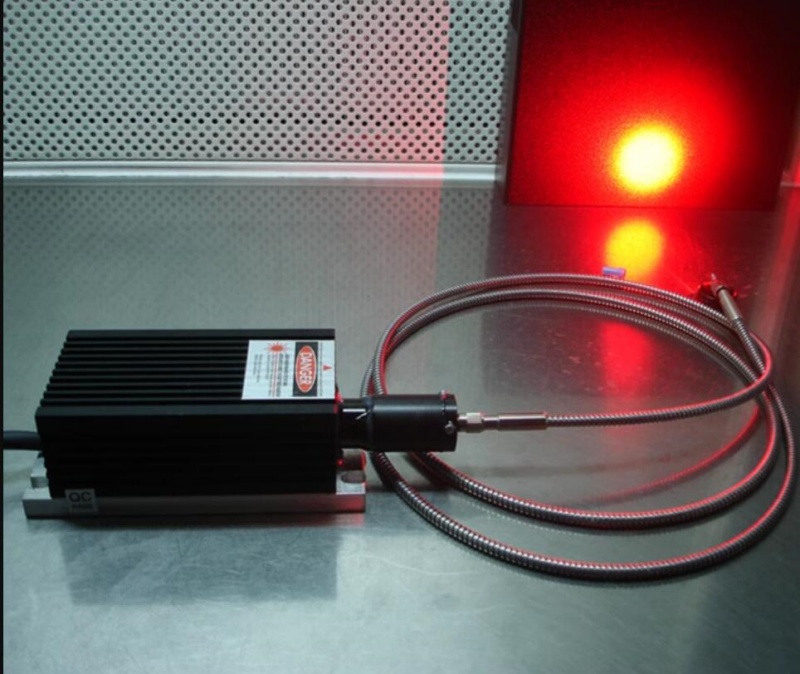

808nm 20mW 30mW 50mW semiconductor infrared laser laser DPSS Adjustable Power Supply

808nm 20mW 30mW 50mW semiconductor infrared laser laser DPSS Adjustable Power Supply

Specifications

Model No:LSR808CHR
Wavelength:808+/-5nm
Spatial Mode:TEMOO
Output Power(average): 20mW 30mW 50mW
Operation Mode: CW or Modulation
Beam Stability: <0.05mrad
Beam Size: 2.8mm
Beam Divergence: <0.65mrad
Beam Quality m2:<1.2
Beam Asymmetry:≤1:1.2
Beam Height from Base :25mm
Power Stability*:<±2% per 4hrs
Temperature Stabilizing :TEC
Warm Up Time:<1minutes
Modulation: 0~30khz Analog or TTL
MTTF** :10,000 hrs
Optimal operating temperature：20-30℃
Storage temperature：10-50℃

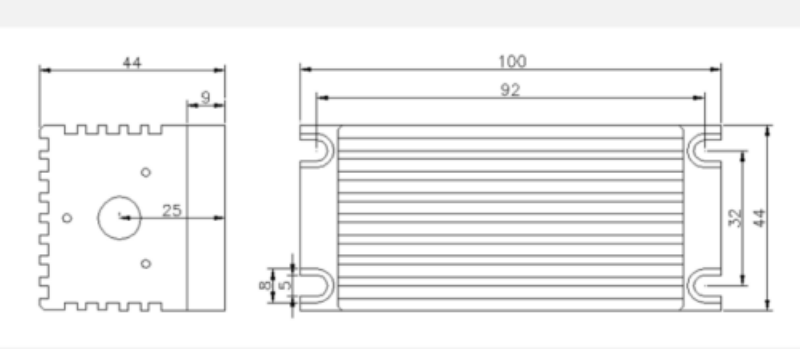

Dimensions ：100(L)x44(W)x44(H) mm
Adjustable power supply：LSR-PS-FA: 179W)x148(D)x56(H) mm3

Add collimator and fiber coupling for $300
