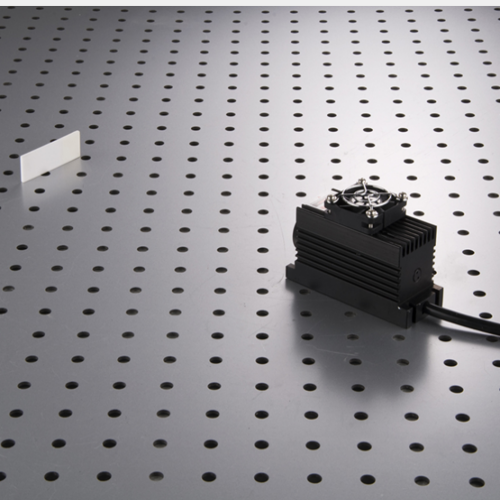

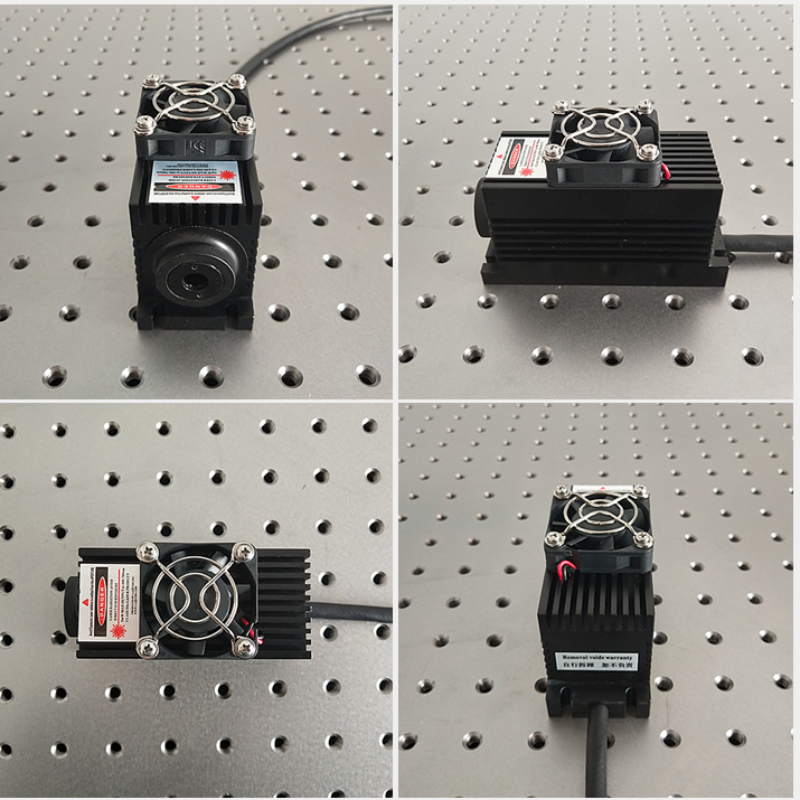

772nm 1W infrared semiconductorlaser laser DPSS Adjustable Power Supply

772nm 1W infrared semiconductorlaser laser DPSS Adjustable Power Supply

Specifications

Model No:LSR772NL
Wavelength:772+/-3nm
Spatial Mode:Multimode
Output Power(average): 1W
Operation Mode: CW or Modulation
Beam Stability: <0.05mrad
Beam Diameter(1/e2): <3mm
Beam Divergence: <3mrad
Beam Quality m2:<2
Beam Asymmetry:≤1:1.5
Beam Height from Base :25mm
Power Stability*:<±3% per 4hrs
Temperature Stabilizing :TEC
Warm Up Time:<1minutes
Modulation: 0~30khz Analog or TTL
MTTF** :10,000 hrs
Optimal operating temperature：20-30℃
Storage temperature：10-50℃

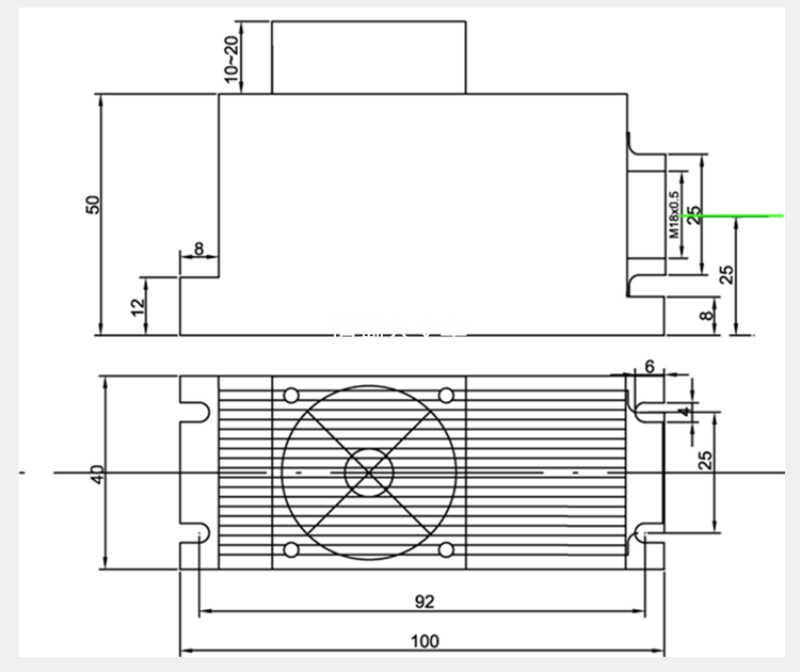

Dimensions ：100(L)x40(W)x50(H) mm
Adjustable power supply：LSR-PS-FA: 179W)x148(D)x56(H) mm3

Add collimator and fiber coupling for $300
