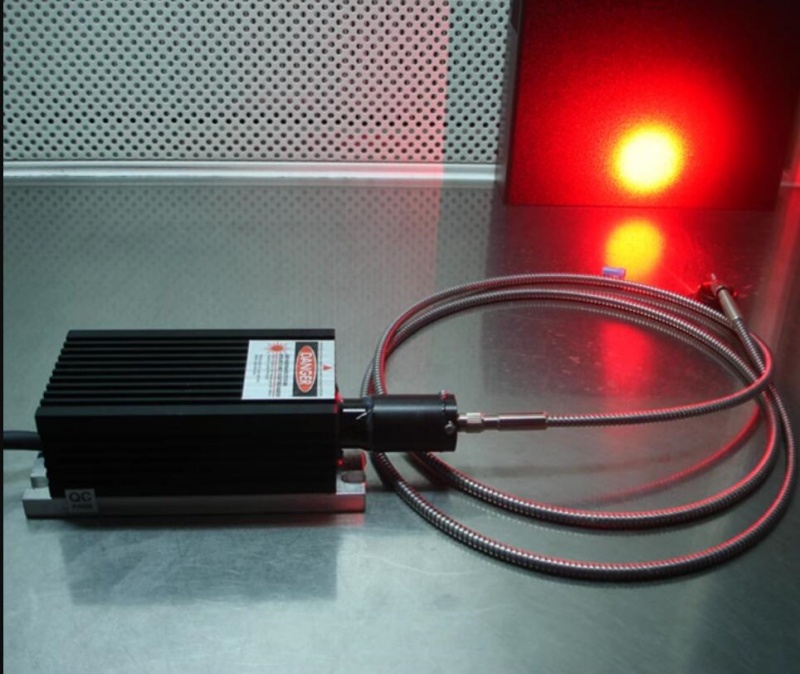

633nm 50mW 80mW Semiconductor lasers DPSS Adjustable Power Supply
Specifications
Model No:LSR633CHR
Wavelength:633+/-1nm
Spatial Mode:TEM00
Output Power(average): 50mW 100mW 150mW
Operation Mode: CW or Modulation
Beam Size: <2.65mm
Beam Divergence: <0.4mrad
Beam Asymmetry:≤1：1.2
Beam Height from Base :25mm
Power Stability*:<±2% per 4hrs
Beam Quality m2:<1.2
Temperature Stabilizing :TEC
Warm Up Time:<1minutes
Modulation: 0~30khz Analog or TTL
MTTF** :10,000 hrs

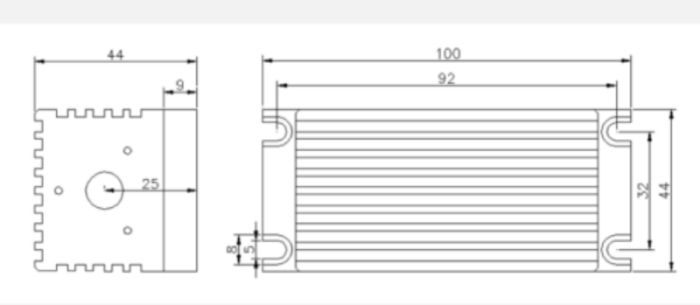

Dimensions ：100(L)x44(W)x44(H) mm

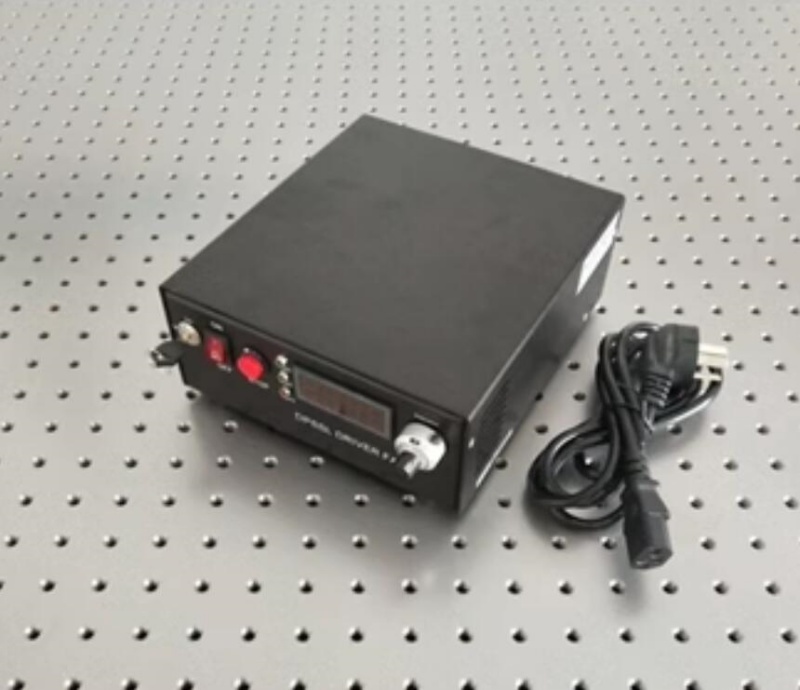

Adjustable power supply：LSR-PS-FA: 179W)x148(D)x56(H) mm3
Add collimator and fiber coupling for $300
