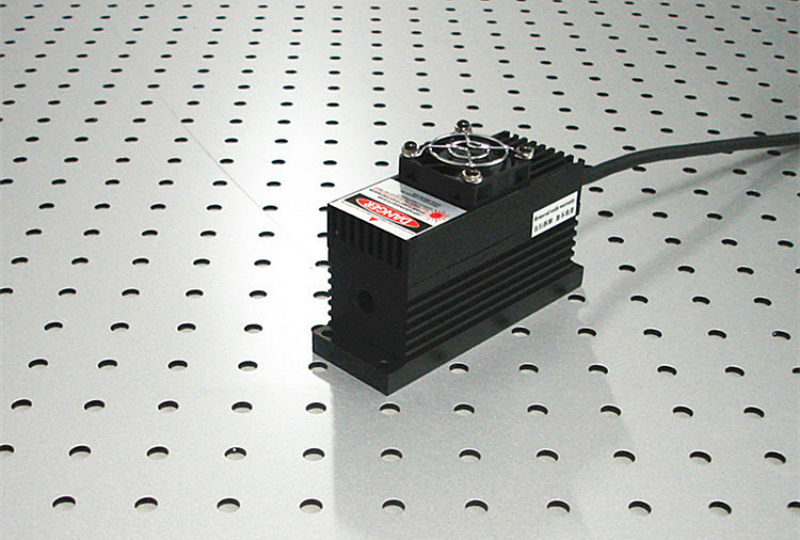

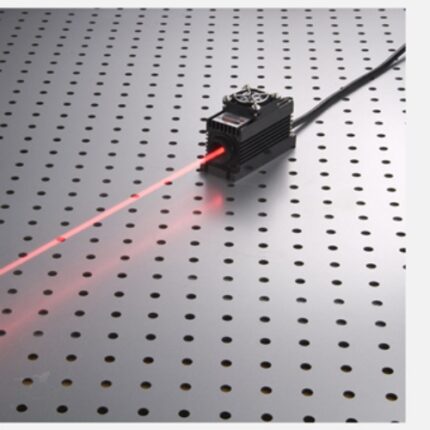

633nm 100mW Semiconductor lasers DPSS Adjustable Power Supply
Specifications
Model No:LSR633NL
Wavelength:633+/-1nm
Spatial Mode:Multimode
Output Power(average): 100mW
Operation Mode: CW or Modulation
Beam Diameter(1/e2): <2.5mm
Beam Divergence: <1.5mrad
Beam Asymmetry:≤1：1.5
Beam Height from Base :25mm
Power Stability*:<±3% per 4hrs
Beam Quality m2:<2
Temperature Stabilizing :TEC
Warm Up Time:<1minutes
Modulation: 0~30khz Analog or TTL
MTTF** :10,000 hrs

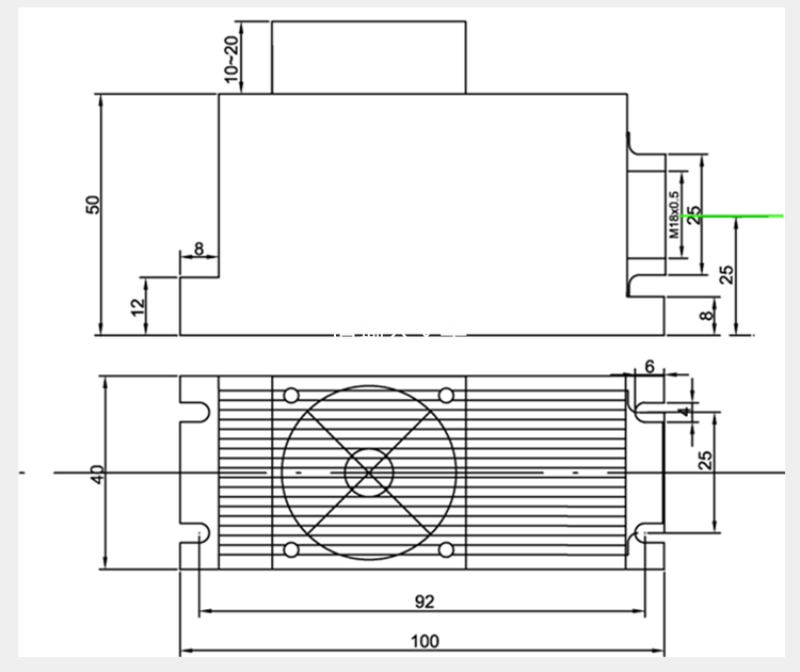

Dimensions ：100(L)x40(W)x50(H) mm

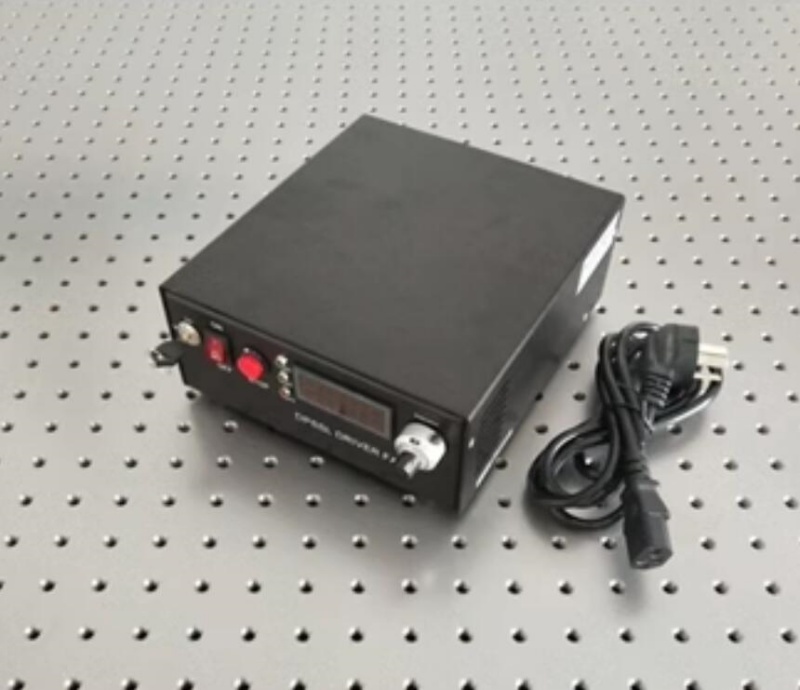

Adjustable power supply：LSR-PS-FA: 179W)x148(D)x56(H) mm3
Add collimator and fiber coupling for $300
