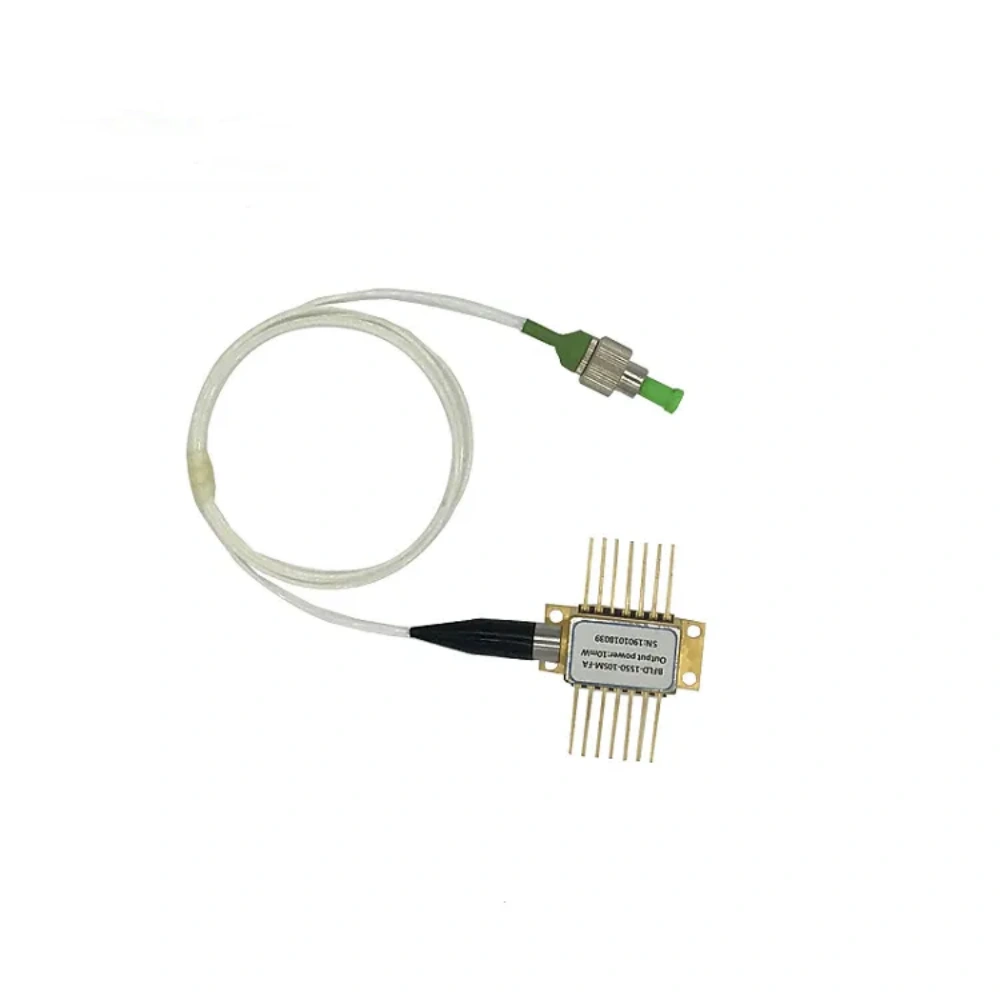

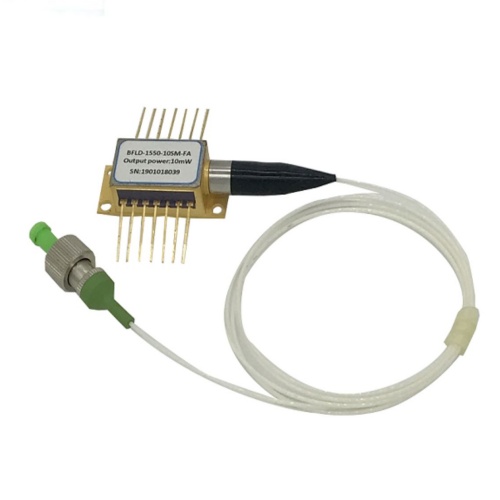

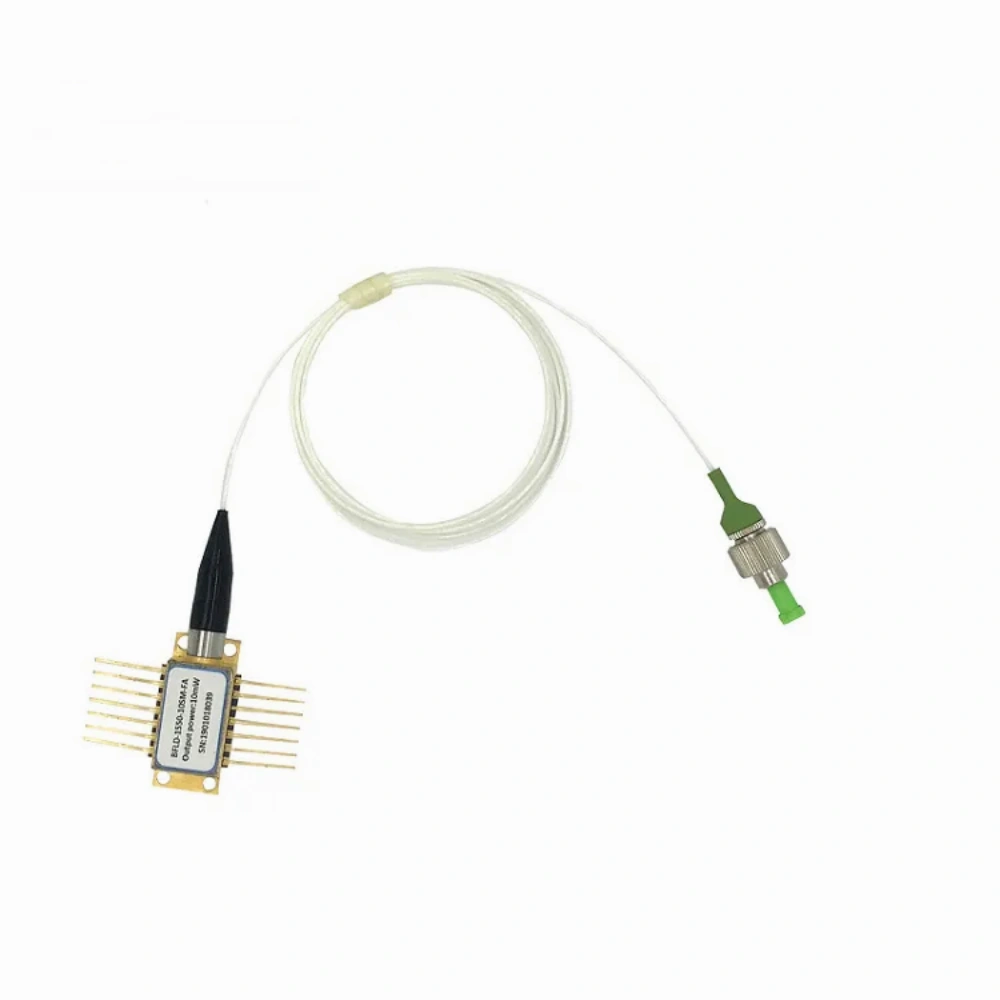

1610nm 10mW DFB 14PIN Butterfly Package Fiber Laser With TEC

1610nm 10mW DFB 14PIN Butterfly Package Fiber Laser With TEC

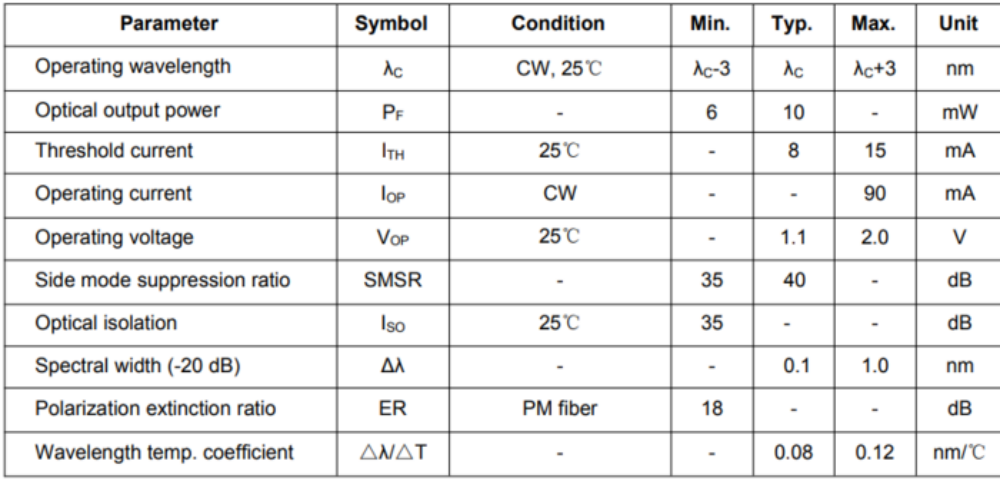

parameter:

Wavelength: 1610nm±3nm
Output power: 10mW
Fiber specification: single mode. Polarization
Threshold current:15mA，
Operating current:90mA
Operating Voltage:2.0V
Fiber connection: FC/APC.
Chip type: DFB

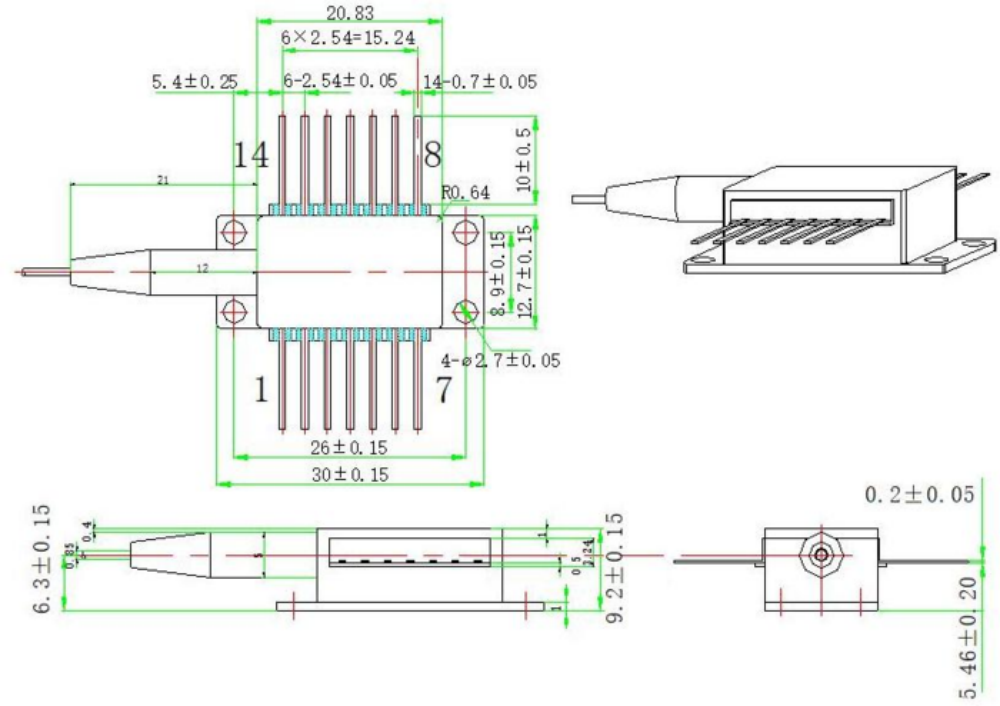

Package Type: Butterfly 14PIN

Peculiarity:

Multi-quantum well (MQW) distributed feedback (DFB) lasers;
14pin Butterfly package;
Built-in thermistor, and TEC;
The fiber type can be SMF-28e or PM fiber;
Working temperature: -20~ +70°C;
RoHS compliant.

Apply:

Optical fiber communication;
optical instruments;
fiber optic sensors;
Light source.
