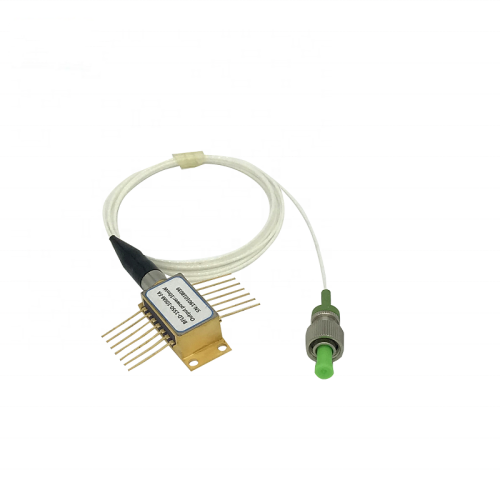

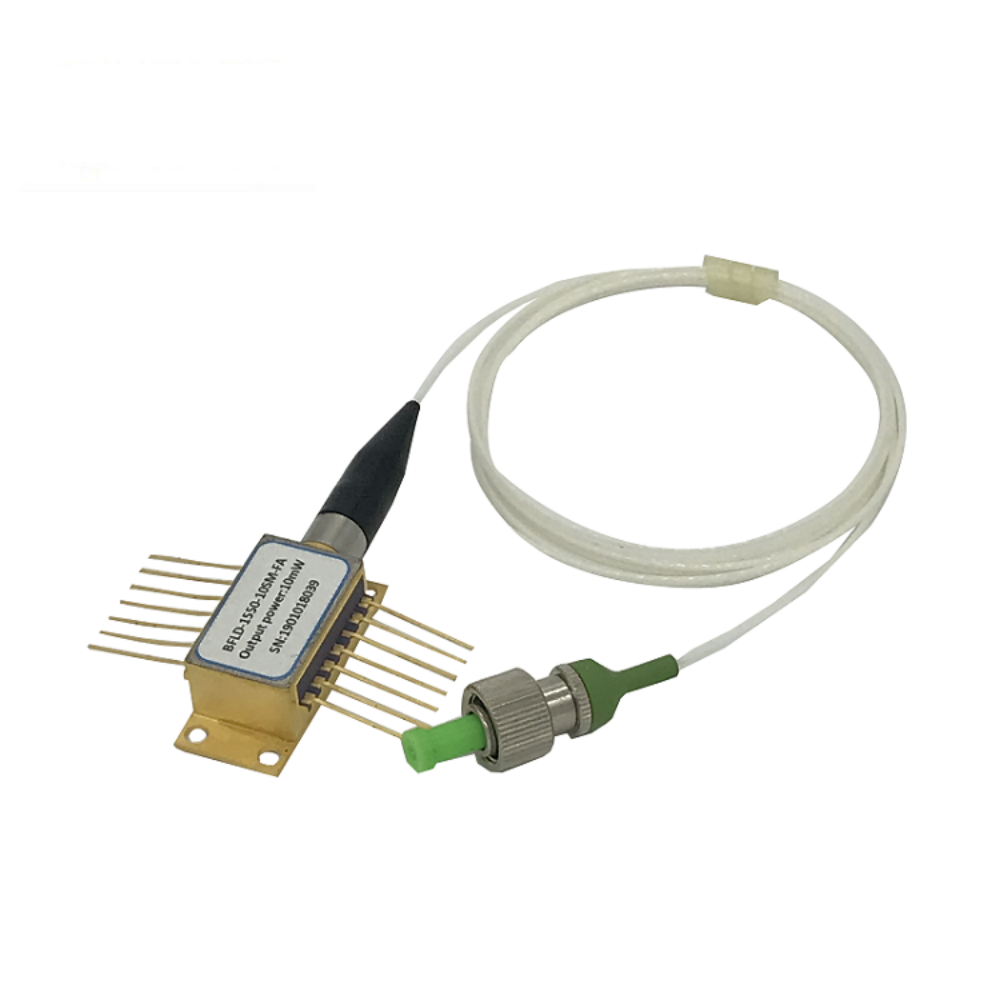

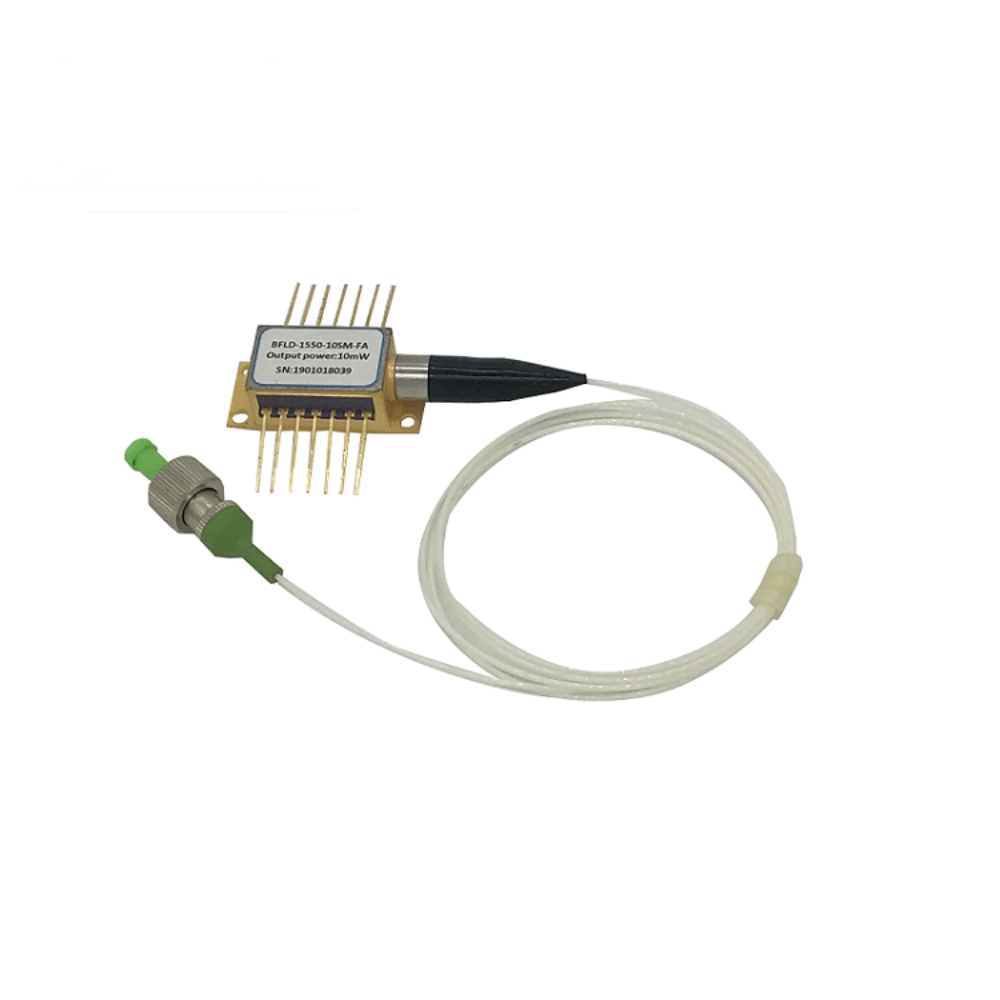

1310nm 2mW SLED 14PIN Butterfly Package SM Fiber Laser for Fiber optic gyroscope system

1310nm 2mW SLED 14PIN Butterfly Package SM Fiber Laser for Fiber optic gyroscope system

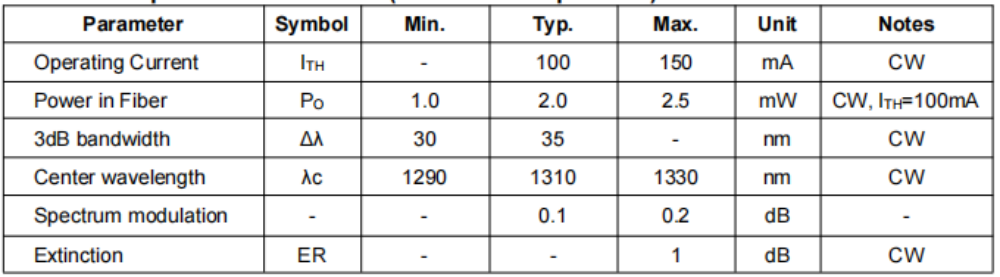

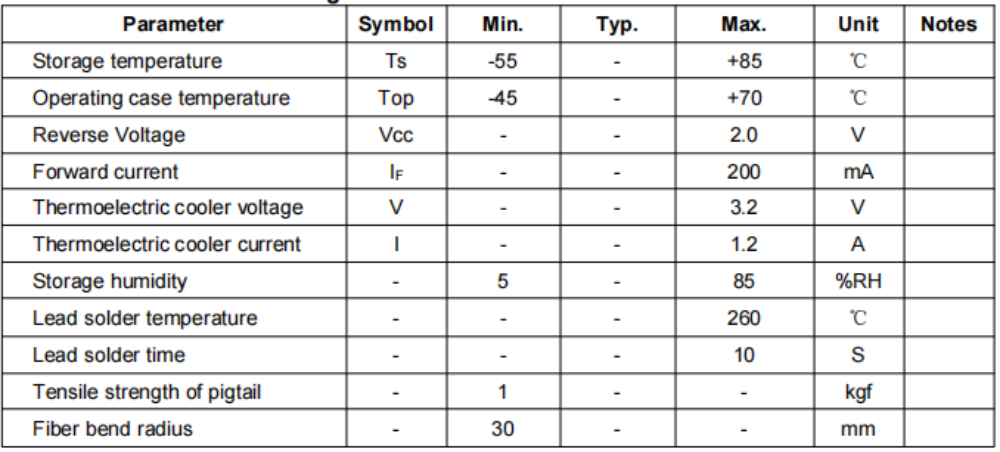

parameter:

Wavelength: 1310nm
Output power: 2mW.
Fiber specification: single mode Fiber.Polarization fiber，
Operating current:150mA
TEC Voltage:3.5V
Fiber connection: FC/APC.FC/UPC.SC/APC
Chip type: SLED
Package Type: Butterfly 14PIN

1. Features:

High output power;
3dB bandwidth> 35nm;
Industry standard, 14-pin butterfly package;
Operating temperature: -45~+70°C;
SM fiber or PM fiber pigtail. Reliability: Telcordia GR-468.

2. Application:

Fiber Optic Communication Systems;
fiber optic gyroscopes;
fiber optic sensors;
optical testing instruments;
optical coherence tomography;
Biomedical imaging systems.
