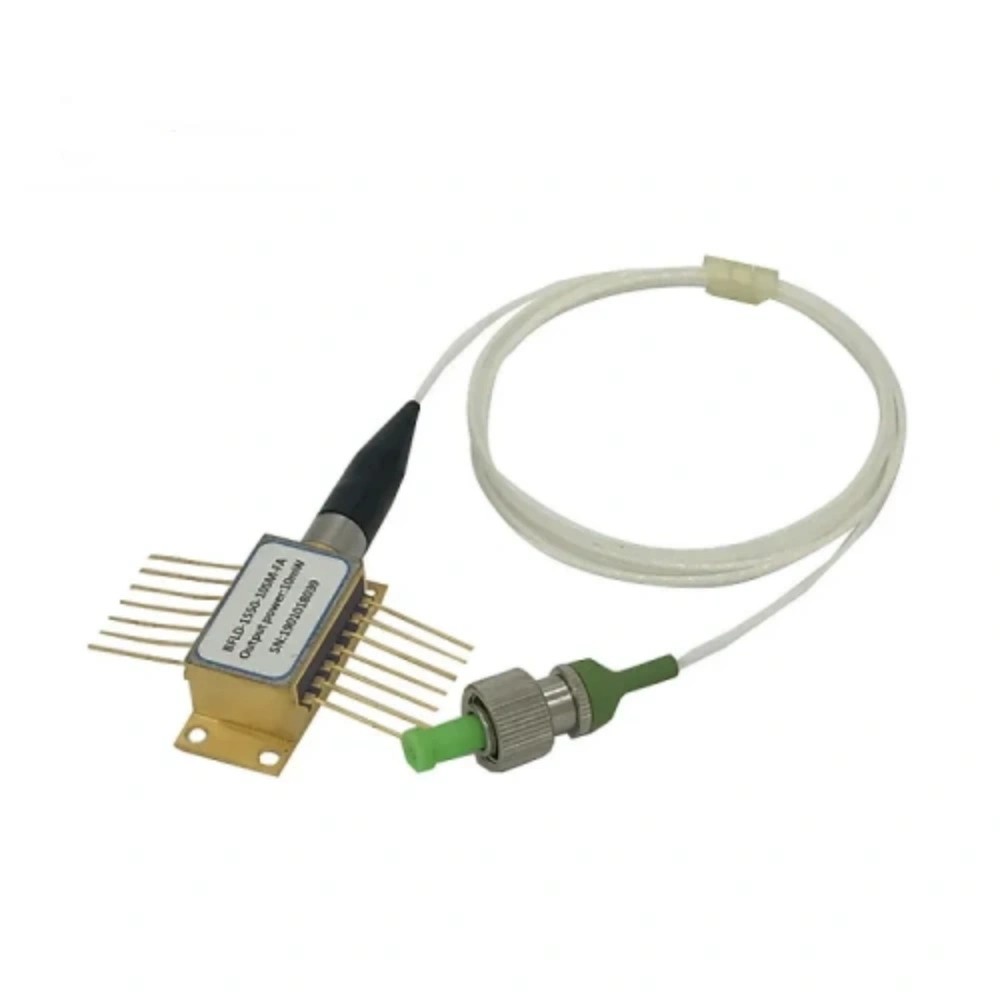

1295.56nm 10mW DFB 14PIN Butterfly Package Fiber Laser With TEC chiller

1295.56nm 10mW DFB 14PIN Butterfly Package Fiber Laser With TEC chiller

parameter:

Wavelength: 1295.56nm
Output power: 10mW
Fiber specification: single mode. Polarization
Threshold current:35mA，
Operating current:200mA
Fiber connection: FC/APC.
Chip type: DFB
Package Type: Butterfly 14PIN

1. Product Description:

The LAN-WDM laser diodes are DFB lasers with 1295.56nm and multiple quantum well (MQW) structures, respectively. The laser diode is housed in a hermetically sealed 14-pin butterfly package that contains a TEC, thermistor, monitor PD, and opto-isolator. We also have full customer selection of output power, package type and SM fiber, PM fiber and other special fibers. This module follows 10~20mW high output. Telcordia GR-468-CORE is required and RoHS compliant.

2. Features:

High output power;
high-performance multi-quantum well distributed feedback (DFB) lasers;
Industry standard 14PIN butterfly package;
Built-in TEC and optical isolator;
ITU wavelength of LAN WDM.

3. Applications:

LAN, WAN and MET;
optical sensors;
laser source;
Data Centers.
