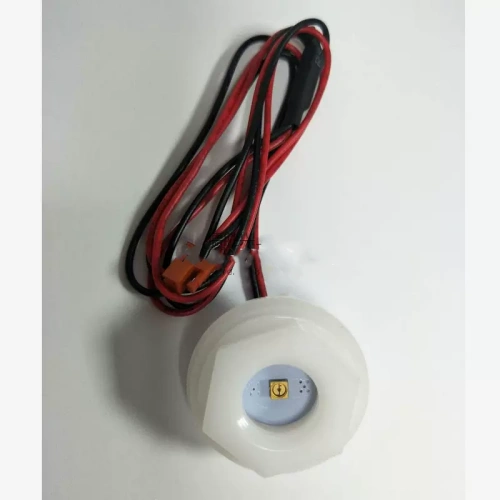

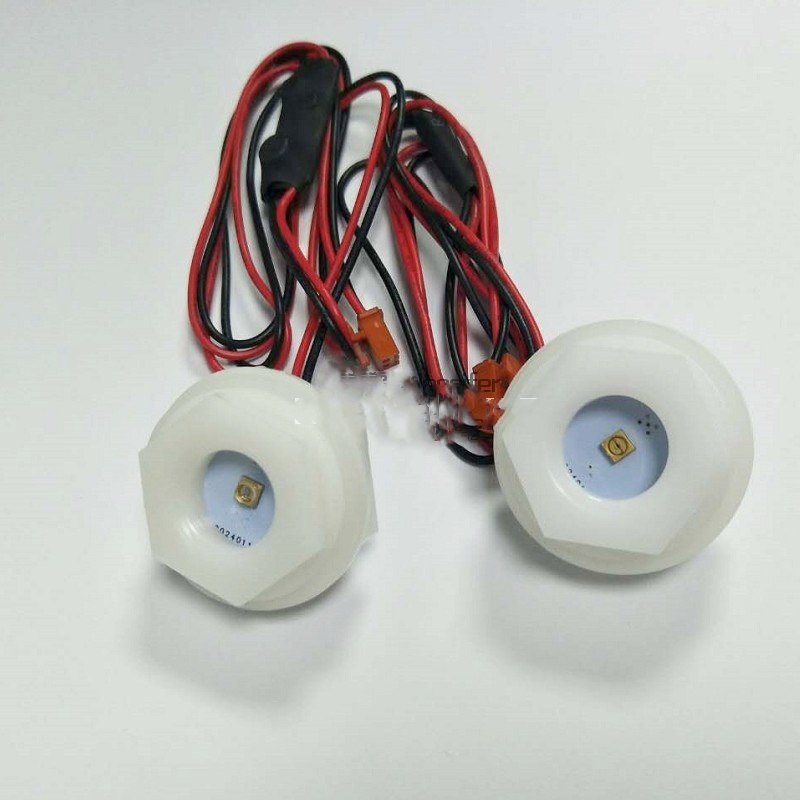

270~285 nm Static Water Ultraviolet Germicidal Lamp Module Water Tank Germicidal Lamp DC24V XH2.54 2P terminal water disinfection

270~285 nm Static Water Ultraviolet Germicidal Lamp Module Water Tank Germicidal Lamp DC24V XH2.54 2P terminal water disinfection

Product Specifications:
Constant voltage drive, 24V
Lead specification: UL2468 24AWG paralleling, wire length 310mm, XHB2.54 terminal header
Terminal specification: 2PIN
Waterproof grade: IP68 dust and waterproof on the front of the module (quartz window surface) (excluding terminals)
Operating temperature: -25~50 °C

Specifications:
Model: M280-BL001
Input voltage: 24 V
Voltage operating current: 40 mA
Optical power: 2-4 mW
Exit angle: 120°
Insulation withstand voltage: DC500V+2Vin / 1 min

Test Method:
Ultraviolet power test: Using the integrating sphere, the ultraviolet power output of the test module is a specified value.
Ultraviolet wavelength range test: 270~285 nm
Insulation withstand voltage test: AC1500 V, 50Hz voltage is applied between the live part and the housing, and the voltage is maintained at 1
min, no breakdown and other phenomena.
High and low temperature test: the product can work reliably in the temperature range of -25~50°C; The temperature of the product –
It can be stored reliably in the range of 50°C~85°C.
