Special light spotsred green blue laser module 19.83° circle with crosshair

Special light spotsred green blue laser module 19.83° circle with crosshair

Cross angle: 19.83 degrees
Circle angle: 14.2 degrees
At 0.5 m:
Reticle length: 175 mm
Circle diameter: 125 mm
The installation height can be used from 0 meters to 5 meters

Other parameters:
Output wavelength: 650nm/520nm/450nm (optional)
Die power: 100MW (optional)
Operating Voltage: DC 2.8V to 5.2V (customizable)
Operating current: <500mA

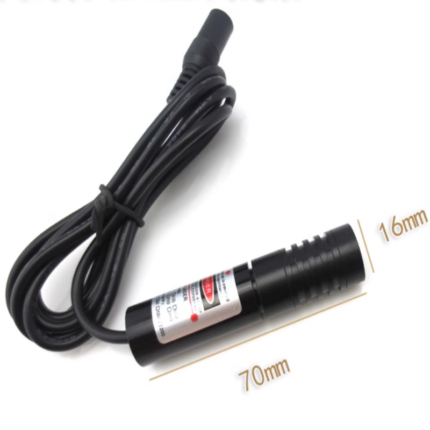

Dimensions: 16*70mm (customizable)
Optical lens: grating sheet (imported from Germany)

Merit:

◆ The light is clear and bright, soft and not dazzling;

◆ The light thickness can be adjusted to meet your different requirements;

◆ The shell is made of aviation aluminum-plated insulating varnish, which fully dissipates heat, is shockproof, anti-drop and anti-static;

◆ Imported laser diode directly emits light, with particularly high stability, and can work 24 hours a day;

◆ Intelligent driver board with imported IC, 2.8-5.2V ultra-wide range power supply (other voltages can be customized);
◆ High temperature resistant, corrosion-resistant DC plug wire, suitable for all-weather and all-environment use;

◆ Wavelength, power, wire length, working distance, spot effect, etc. can be customized according to customer requirements, what you want, here are all there!

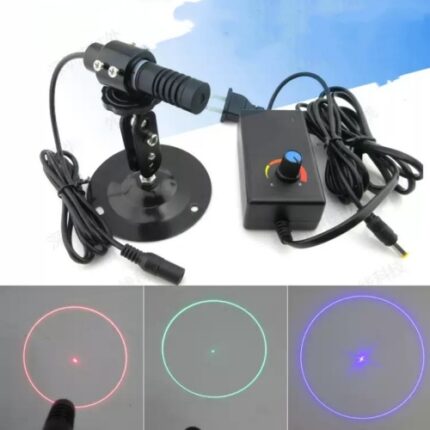

The whole set includes: laser head + bracket + 1-3V adjustable power supply
