Red Green Blue RGB Tricolor Synthetic White Full Color TTL Analog Laser Module 250mW 300mW 450mW 630mW 2000mW White laser

Red Green Blue RGB Tricolor Synthetic White Full Color TTL Analog Laser Module 250mW 300mW 450mW 630mW 2000mW White laser

Product parameters:

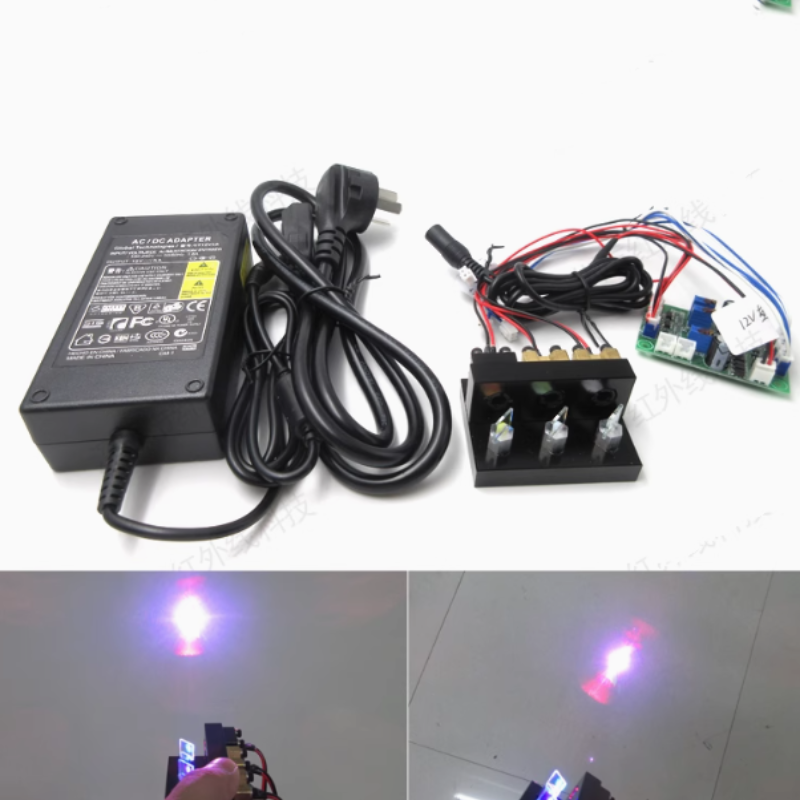

complete set includes: laser module 12V5A power supply

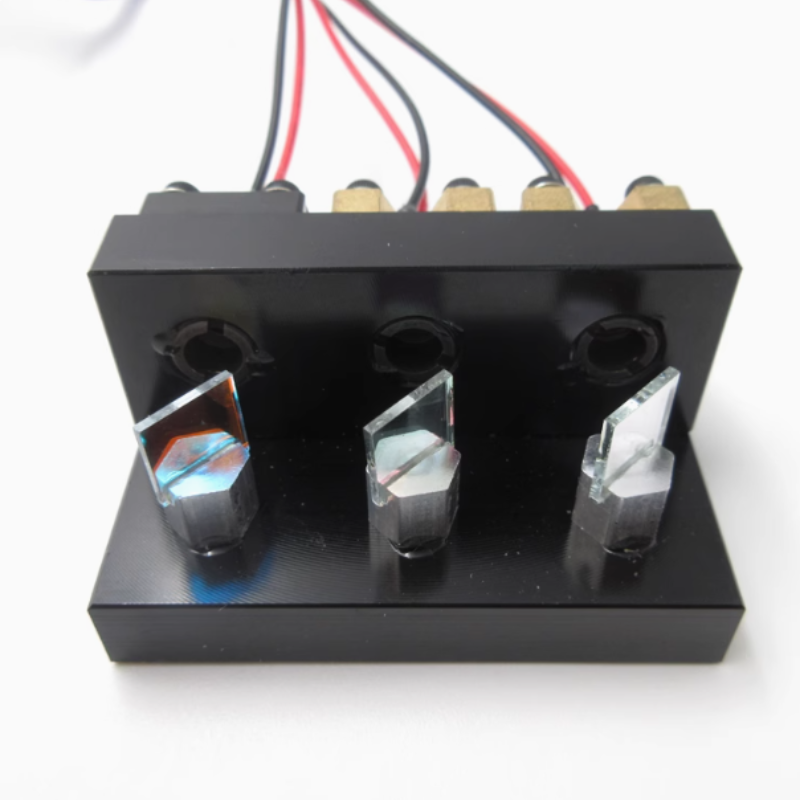

Laser head size: 60*45*32mm (L*W*H)

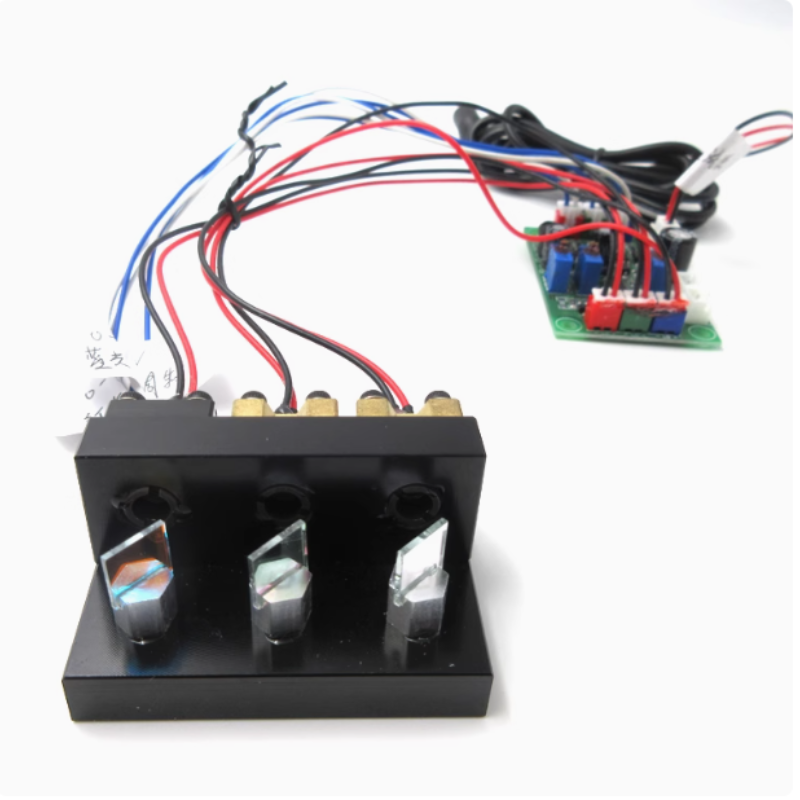

Driver board size: 63*42*15mm (L*W*H)
Mounting hole diameter: 4 M3 holes at the bottom of the laser head, spacing 40*30mm (L*W)
Operating voltage: DC 12V
Operating current: <3AM
odulation signal voltage: 0-5VM
odulation signal frequency: 0-25KHZ
Uses: Can achieve seven colors respectively, including red, green, blue, red-green, red-blue, green-blue, and red-green-blue (white light)

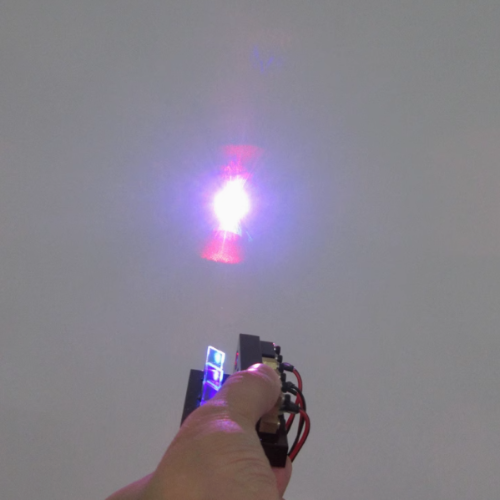

Spot pattern: ovalSpot
size: 5-50mm (the farther the distance, the larger the spot)
Light output height: 23mm
Operating temperature: -20℃ to +50℃
Storage temperature: -40℃ to +85℃
