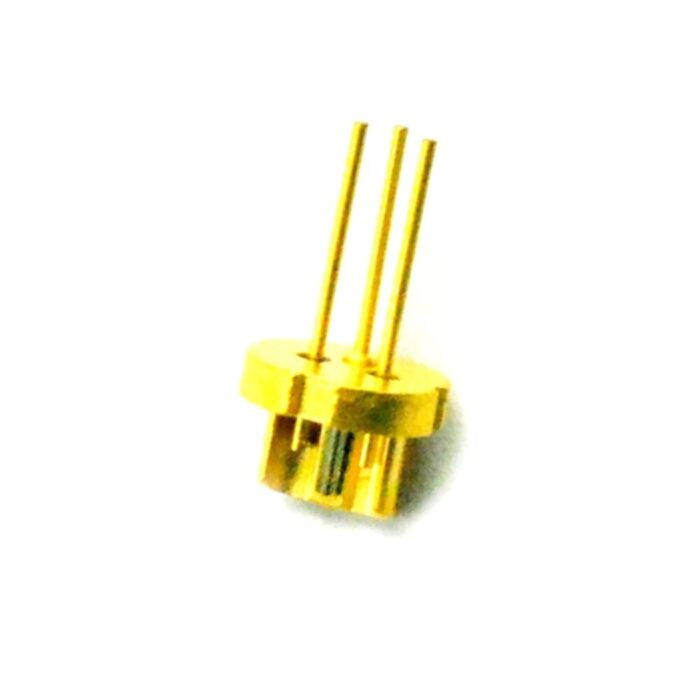

Mitsubishi ML129F27 CW 660nm 120mW Red Laser Diode 3.8mm Pulse 300mW
Parameter:
Module:ML129F27
Diameter: φ 3.8 mm
Life-Span: > 6000 hours
Wavelength: 660nm(typical) / + 5nm
CW Output: 120 mW
Pulse Output Power (tp=50ns, Duty=40％) 300mW
Voltage: 3V DC
Current: 200mA Po=120mW CW
430mA Po=300mW Pulse
Beam Spread: parallel 10° when 120mW CW
vertical17° when 120mW CW
Working Temperature: – 10 ℃ ~ + 80 ℃
Storage Temperature: – 10 ℃ ~ + 80 ℃
Precautions:
Highoperation temperature at 80 ° C and industry’s highest output 300 mW pulse contribute to high-speed recording of laptop computers
Guaranteed high-temperature operation, small-size, high-power “red semiconductor laser diode for recordable DVD.
Mitsubishi Electric Corporation (President & CEO: Setsuhiro Shimomura) is a thin recordable DVD built in a notebook computer
As a light source of the device, it is a compact red semiconductor which realized high temperature operation at 80 ° C and industry’s highest * 1 optical output 300 mW pulse
Package:
1pc Original Red Laser Laser Diode ML129F27 CW 660nm 120mW 3.8mm Pulse 300mW
