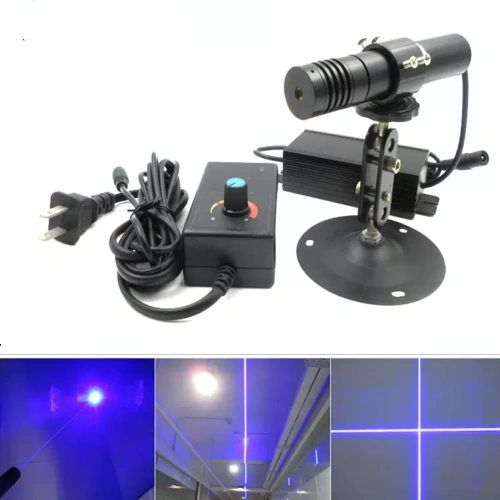

high power laser module 440nm 5W blue adjustable focal length dot line cross laser module positioning light
parameter
Output wavelength: 440nm
Output power: 5W
Die power: 5000MW
Working voltage: DC 9-25(V) can be customized
Operating current: ≤2000mA

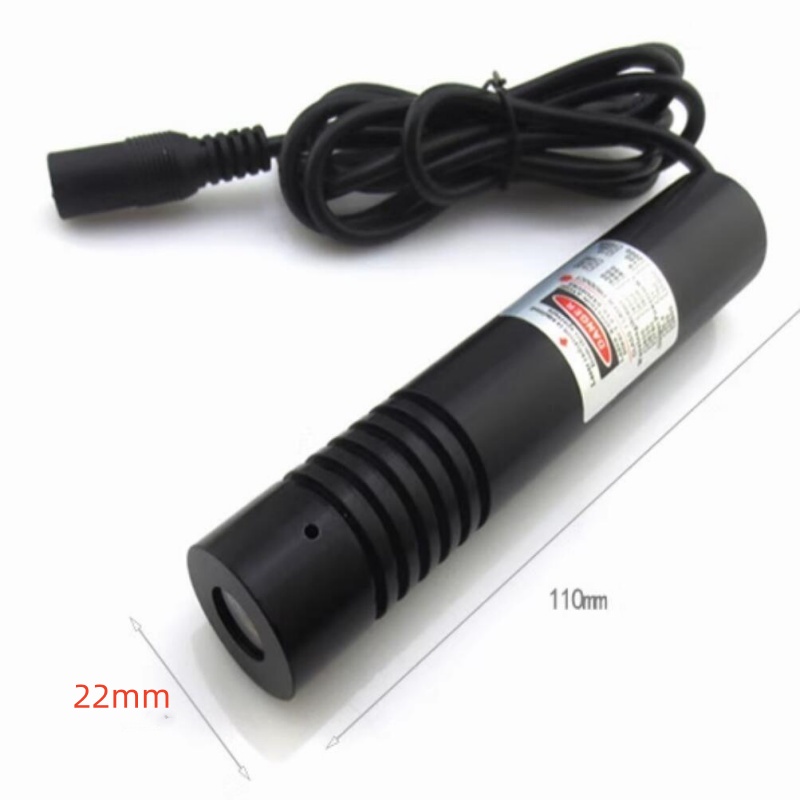

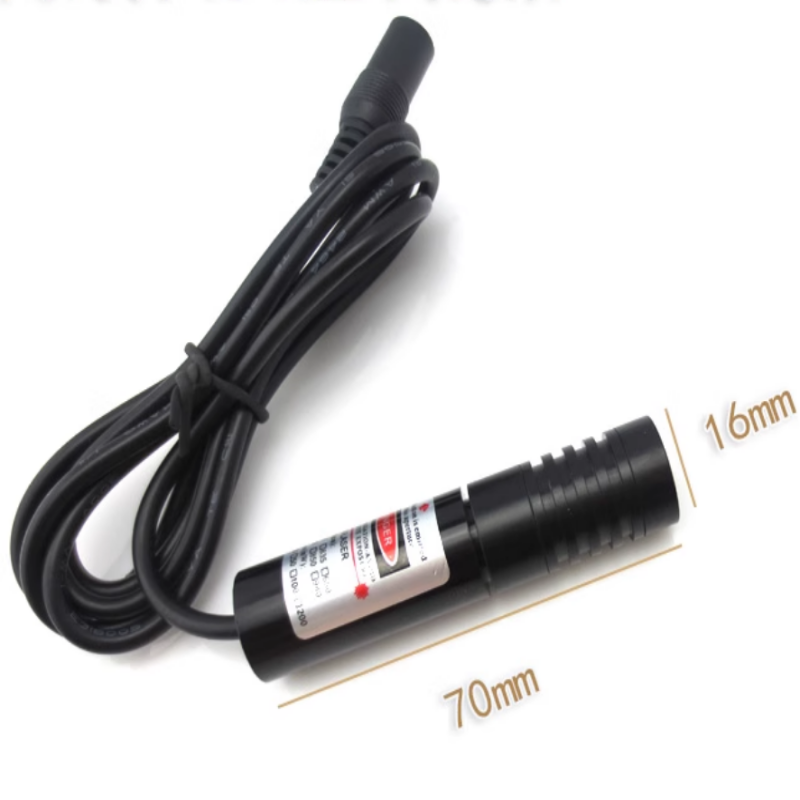

Dimensions: 22*110mm (optional size: 16*70mm)
Dot:
During the day, you can play 0-4500 meters indoors
During the day, you can play 0-1000 meters outdoors
In the dark environment can play 0-6000 meters
Line:
It can reach 48 meters in indoor working environment
It can reach up to 22 meters in semi-outdoor (non-direct sunlight) working environment
It can reach 10 meters in the working environment of full outdoor (direct sunlight).
Cross:
Up to 22 meters in indoor working environment (22 meters long for horizontal and vertical lines of the cross)
Up to 12 m in semi-outdoor (non-direct sunlight) working environment (12 m long for horizontal and vertical lines of the cross)
Up to 7 meters in an outdoor (direct sunlight) working environment (7 meters long for horizontal and vertical lines of the cross)
The blue line is thin and uniform, and the collimation and stability are very high
Line/cross installation heights from 0 m to 20 m
