974nm 200mW-700mW SM Hi1060 Fiber Pump Laser for Erbium-Doped Fiber Amplifier (EDFA)

974nm 200mW-700mW SM Hi1060 Fiber Pump Laser for Erbium-Doped Fiber Amplifier (EDFA)

parameter:

Wavelength: 974nm±/1nm
Output power: 200mW 400mW 600mW 700mW.

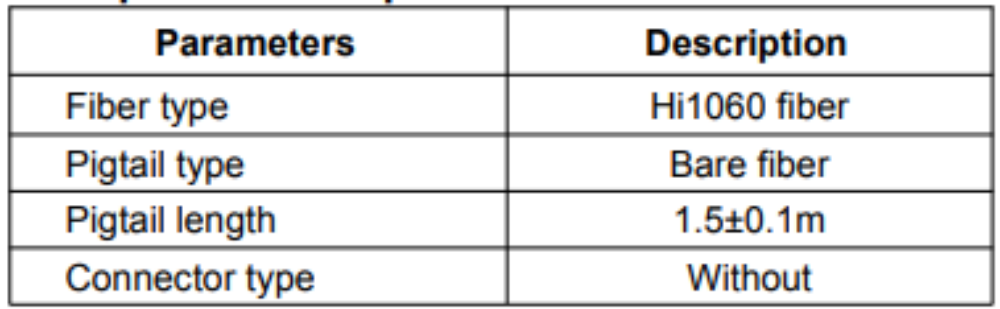

Fiber specification: single mode
LD Forward current:1300mA
TEC Voltage:3.5V
Fiber connection: FC/APC

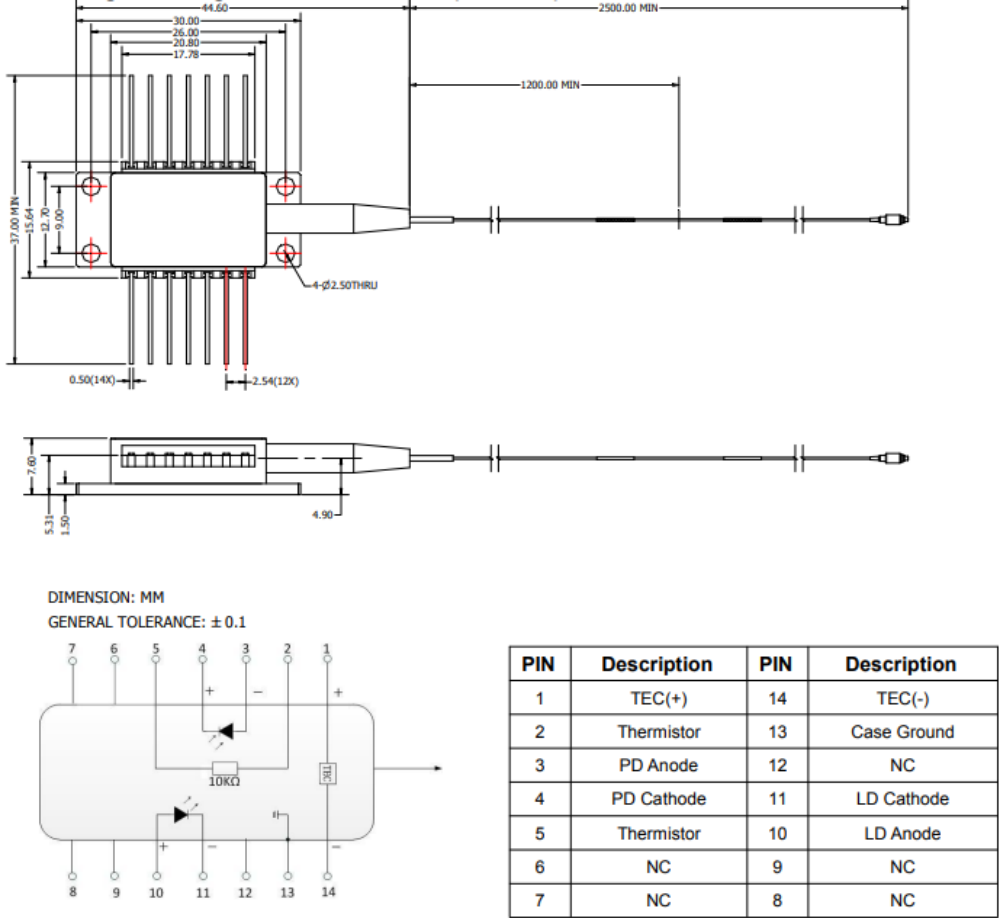

Package Type: Butterfly 14PIN

Peculiarity:

Kink-free working power up to 600mW;
Epoxy-free, flux-free 14-PIN butterfly package, SM Hi1060 or PM fibers;
FBG stabilization;
Support wavelength selection;
Integrated thermoelectric cooler, thermistor and monitoring diode.

Apply:

Dense wavelength division multiplexing (DWDM) erbium-doped fiber amplifier (EDFA);
EDFA architecture to reduce pump counts;
Very long-distance cable television (CATV) trunks and very high node count distributions.
