940nm 10mW  VCSEL Laser Diode TO CAN

940nm 10mW  VCSEL Laser Diode TO CAN

Product Description

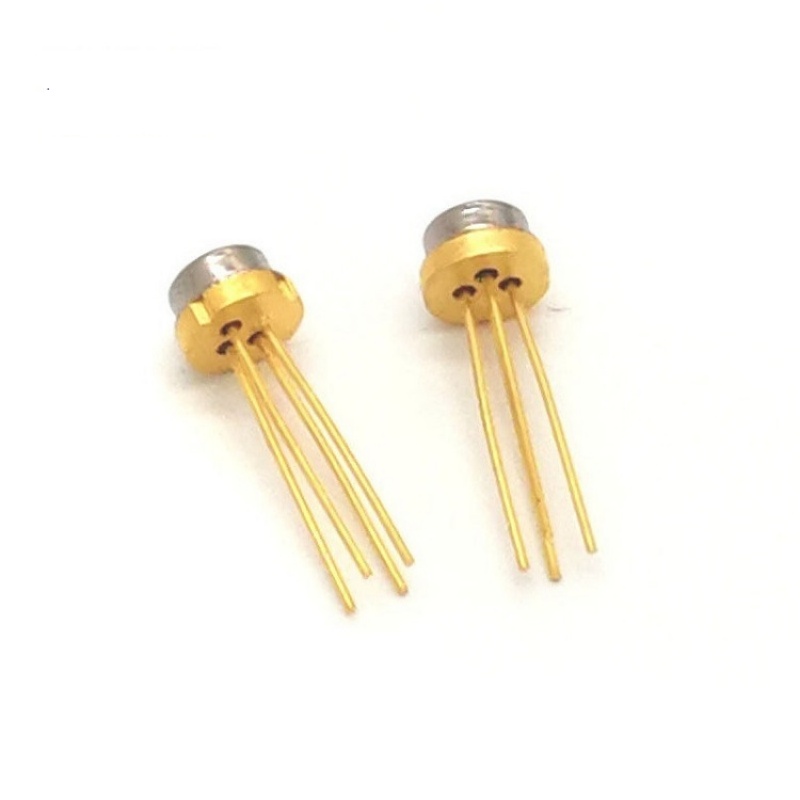

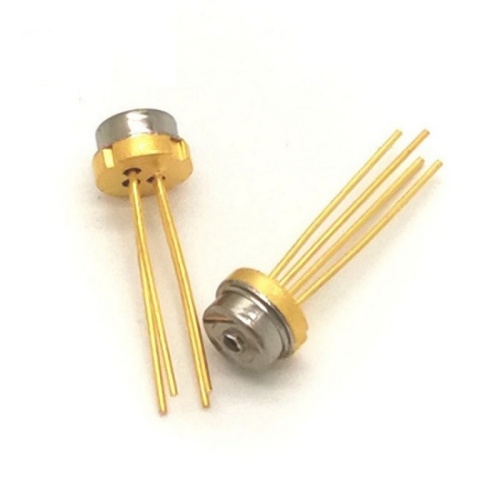

1. Introduction of 940nm 10mW TO CAN VCSEL Laser Diode

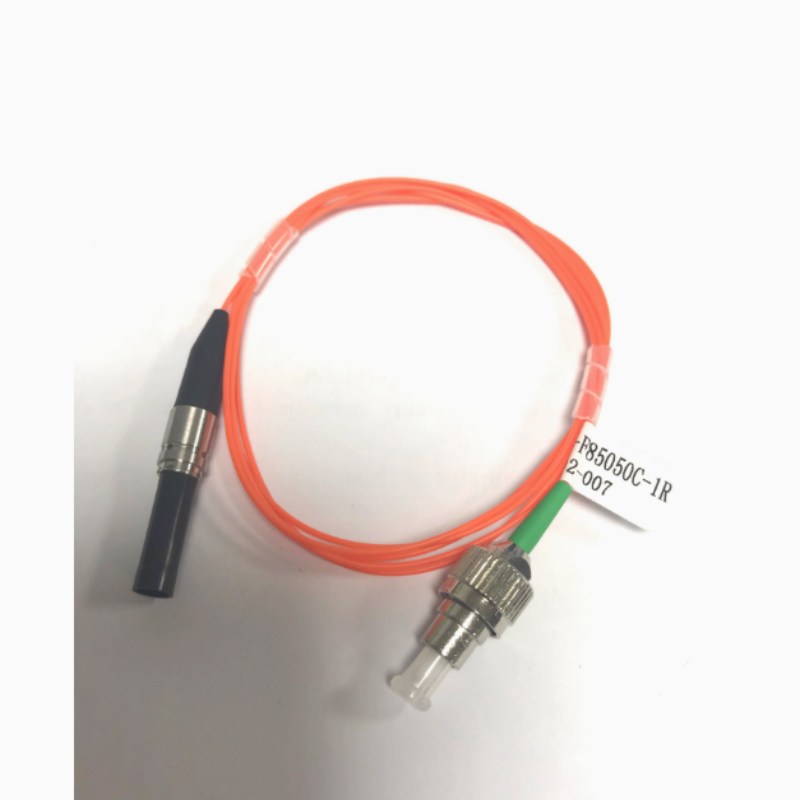

The 940nm 10mW VCSEL Laser Diode is a standard Vertical Cavity Surface Emitting Lasers (VCSELs) in ready to use fiber coupled packages. it is in a small package TO56, Modulation and width >2GHz. We offer the 940nm 10mW VCSEL Laser Diode with multi-mode optical fiber 50um or 62.5um core optical fiber.

2. Features of 940nm 10mW TO CAN VCSEL Laser Diode
940nm single longitudinal mode;

Output power 10mW;

Small emission area;

Modulation and width >2GHz.

3. Application of 940nm 10mW TO CAN VCSEL Laser Diode
Vehicle applications;

IR indicator;

Range finder sensors.

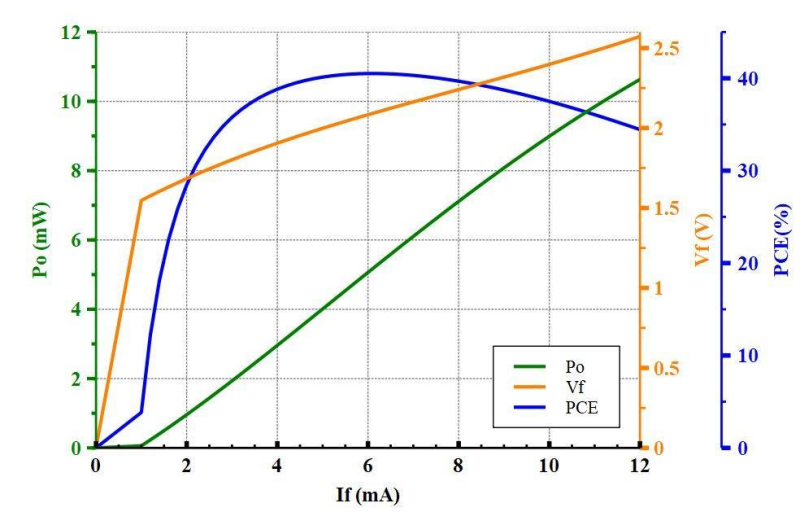

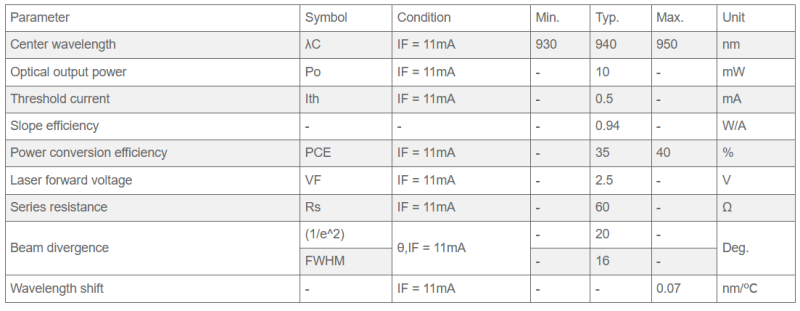

4. Electro-Optical Characteristics(T=25℃) of 940nm 10mW TO CAN VCSEL Laser Diode
