8*8=64 Grids Dot matrix Effect Red Green Blue laser module Adjustable line width laser positioning light

8*8=64 Grids Dot matrix Effect Red Green Blue laser module Adjustable line width laser positioning light

Specifications:

Number of grids: 8 x 8 = 64
Mounting height: 0~5m
Output wavelength: 650nm / 520nm / 450nm
Core power: 100MW (optional)
Working voltage: DC 2.8V to 5.2v
Working current: <500mA

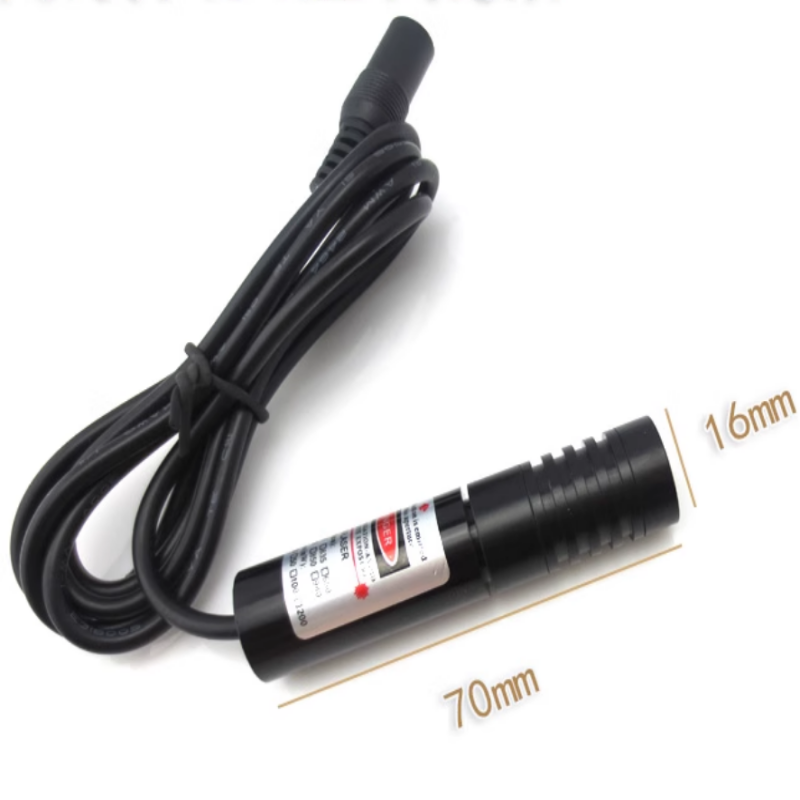

Laser dimension: 16 * 70mm (customizable)
Optical lens: grating ( Germany)

Grid size:

Lens angle: 4°
1, At 50cm distance, outer frame is 3.5cm long (single small grid side is 0.4375cm long);
2, At 100cm distance, the outer frame is 7cm long (single small grid side is 0.875cm long).
3. At 150cm distance, the outer frame is 10.5cm long (single small grid side is 1.3125cm long).

Lens angle: 8°
1, At 50cm distance, outer frame is 7cm long (single small grid side is 0.875cm long);
2, At 100cm distance, the outer frame is 14cm long (single small grid side is 1.75cm long).
3. At 150cm distance, the outer frame is 21cm long (single small grid side is 2.625cm long).

Lens angle: 40°
1, At 50cm distance, outer frame is 37cm long (single small grid side is 4.625cm long);
2, At 100cm distance, the outer frame is 74cm long (single small grid side is 9.25cm long).
3. At 150cm distance, the outer frame is 111cm long (single small grid side is 13.875cm long).
