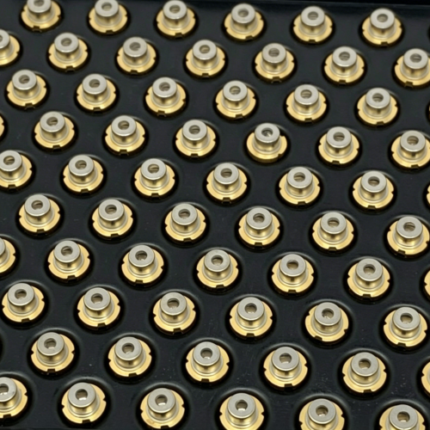

830nm 200mw IR LD TO56 with PD Infrared Light 825nm 250mw Laser Diode

Features

1. Absolute maximum ratings：250mW (CW)
2. TO-56 (Φ5.6mm) packaged

Electrical and Optical Characteristics(Tc=25℃)

Lasing Wavelength:825nm(±10nm)
Optical Output:200mW
Threshold Current:35mA
Operating Current:240mA
Operating Voltage:1.9V
Monitor Current:0.8mA
Operating Temperature:0 to +60℃

Pin Description

Pin1 PD Anode
Pin2 LD Cathode
Pin3 LD Anode,PD Cathode(case)
