785nm high power 10W 18W 27W 35W semiconductor infrared laser laser DPSS Adjustable Power Supply

785nm high power 10W 18W 27W 35W semiconductor infrared laser laser DPSS Adjustable Power Supply

Specifications

Model No:LSR785CPF
Wavelength:785+/-5nm
Spatial Mode:Multimode
Output Power(average): 10W 18W 27W 35W
Operation Mode: CW or Modulation
Beam Stability: <0.05mrad
Beam Diameter(1/e2): 6X6mm
Beam Divergence: 1.5X4mrad
Beam Quality m2:<1.2
Line width:<3nm
Beam Height from Base :29mm
Power Stability*:<±3% per 4hrs
Temperature Stabilizing :TEC
Warm Up Time:<1minutes
Modulation: 0~30khz Analog or TTL
MTTF** :10,000 hrs
Optimal operating temperature：20-30℃
Storage temperature：10-50℃

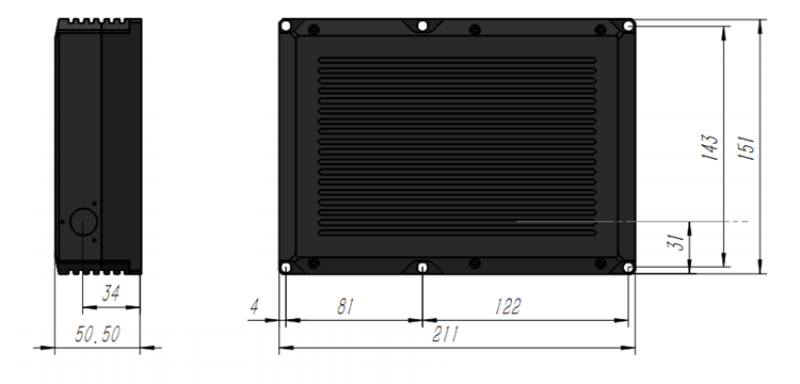

Dimensions ：211(L)x151(W)x50(H) mm

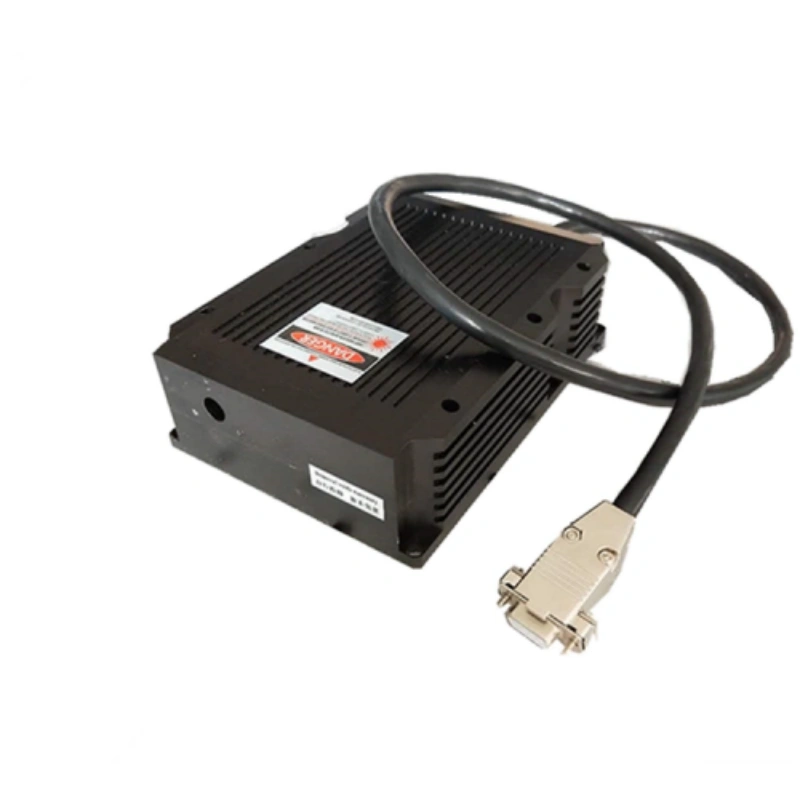

Adjustable power supply：LSR-PS-FA268W)x145(D)x106(H) mm3

Add collimator and fiber coupling for $300
