650nm 100mW 10 parallel line laser multi-line parallel adjustable linewidth laser module or scientific research experiment

650nm 100mW 10 parallel line laser multi-line parallel adjustable linewidth laser module or scientific research experiment

Parameter:

Output wavelength: 650nm

Die power: 100MW

Operating voltage: DC 2.8V to 5.2V

Operating current: <200mA

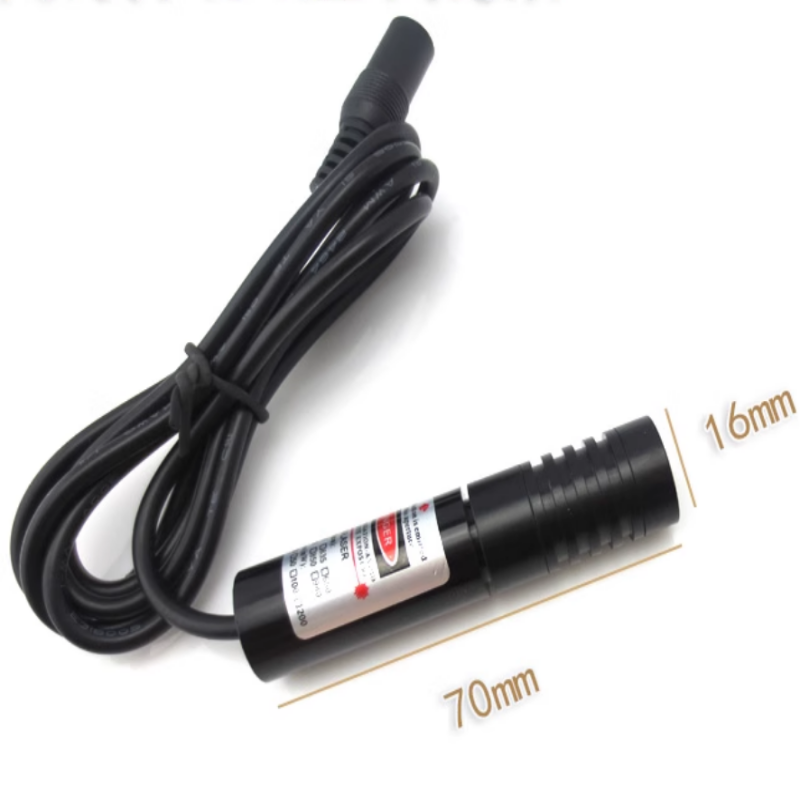

Dimensions: 16*70mm

Optical lens: Grating sheet 47 degrees (Germany)

Spot size: 50 cm: line length 46.2 cm, 10 parallel lines occupy a width of 47.7 cm, line spacing 5.3 cm

At 100 cm: the length of the line is 92.4 cm, the width of the 10 parallel lines is 95.4 cm, and the distance between the lines is 10.6 cm

Merit:

1 Indoor use, clear brightness, not dazzling

2 Parallel line width adjustable to meet your different usage requirements

3. The shell is made of aviation aluminum-plated insulating paint, which can not only fully dissipate heat, but also shock-proof, anti-drop and anti-static

4. German laser diode directly emits light and has a particularly high stability and can work 24 hours a day

5 Intelligent driver board with imported IC can supply 2.8-5.2V ultra-wide range of power supply (other voltages can be customized)

6 High temperature resistant corrosion resistant DC plug cable is suitable for all-weather and all-environment use
