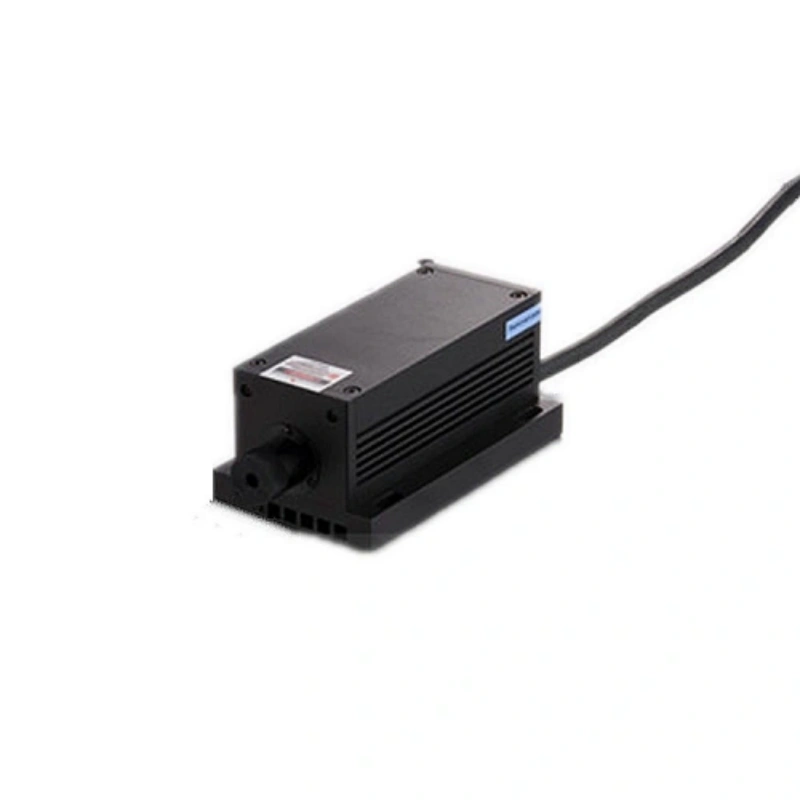

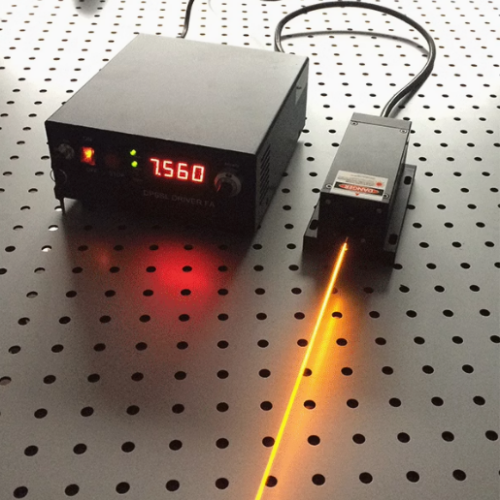

589nm 700mW 1000mW 3000mW Yellow Solid State Laser DPSS Adjustable Power Supply
Specifications
Model No:LSR589W
Wavelength:589nm±0.5nm
Spatial Mode: Near TEM00
Output Power:700mW 1000mW 3000mW
Operation Mode: CW or Modulation
Pointing Stability:<0.05 mrad
Beam Size:<3mm
Beam Divergence: <2mrad
Beam Height from Base :29mm
Power Stability*:<±5% per 2 hrs
Temperature Stabilizing :TEC
Warm Up Time:<5minutes
Modulation: 0~30khz Analog or TTL
Optimum Operating Temperature :20~30oc
Storage Temperature:10~50oC
MTTF** :10,000 hrs
Dimensions ：167(L)x77(W)x60(H) mm

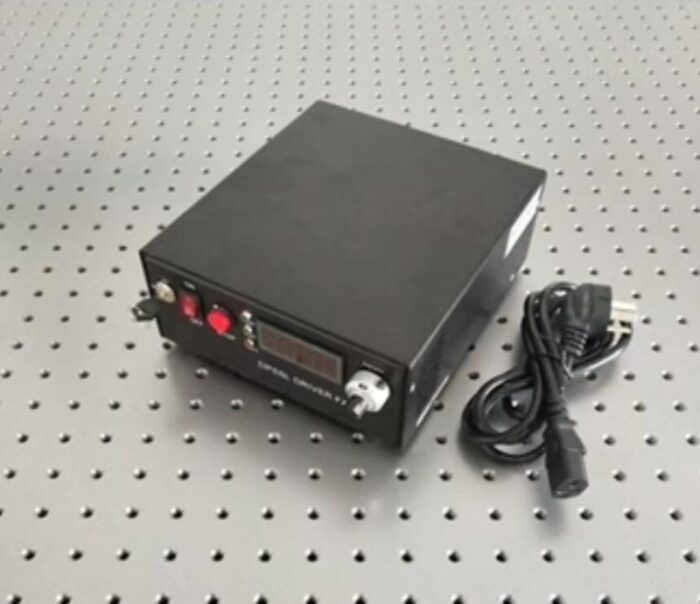

Adjustable power supply：LSR-PS-IIS: 178(W)x197(D)x84(H) mm3
Add collimator and fiber coupling for $300
