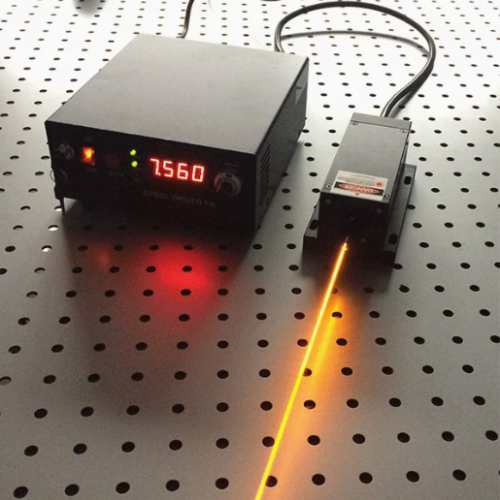

589nm 100mW 200mW 300mW 400mW 500mW 600mW Yellow Solid State Laser DPSS Adjustable Power Supply

589nm 100mW 200mW 300mW 400mW 500mW 600mW Yellow Solid State Laser DPSS Adjustable Power Supply

Specifications

Model No:LSR589H
Wavelength:589nm±0.5nm
Spatial Mode: Near TEM00
Output Power:20mW-300mW
Operation Mode: CW or Modulation
Pointing Stability:<0.05 mrad
Beam Size:<3mm
Beam Divergence: <2mrad
Beam Height from Base :29mm
Power Stability*:<±5% per 4 hrs
Temperature Stabilizing :TEC
Warm Up Time:<5minutes
Modulation: 0~30khz Analog or TTL
Optimum Operating Temperature :20~30oc
Storage Temperature:10~50oC
MTTF** :10,000 hrs

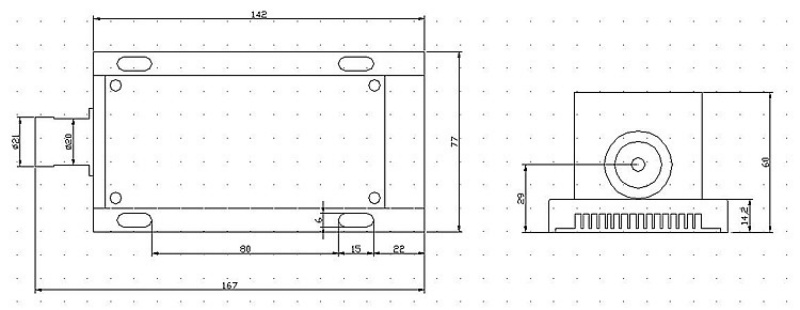

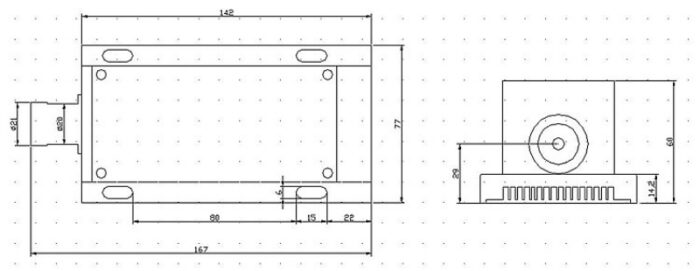

Dimensions ：167(L)x77(W)x60(H) mm

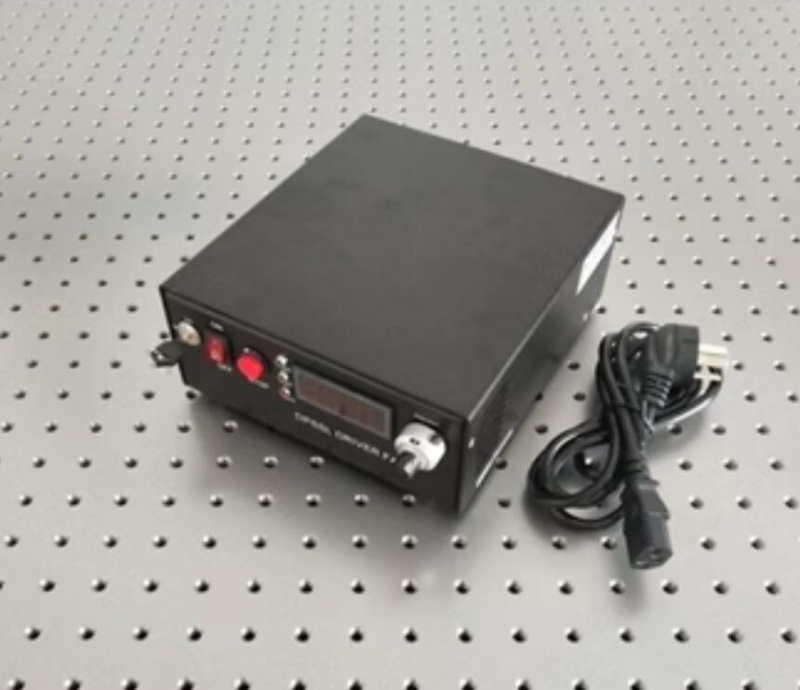

Adjustable power supply：LSR-PS-IIS: 178(W)x197(D)x84(H) mm3

Add collimator and fiber coupling for $300
