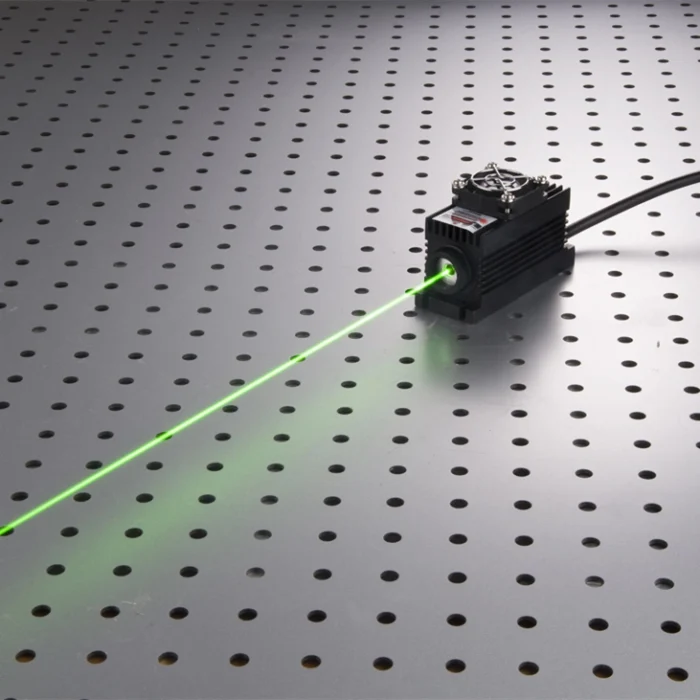

520nm 800mW 1000mW green semiconductor laser DPSS can be coupled with fiber

520nm 800mW 1000mW green semiconductor laser DPSS can be coupled with fiber

peculiarity
Compact form factor
The beam quality is excellent
Stable and reliable, long service life

apply
Scientific research experiments and industrial fields

Specifications

Model No:LSR520SD
Wavelength:520+/-5nm
Spatial Mode: Near TEM00
Output Power:800mW 1000mW
Operation Mode: CW or Modulation
Beam Size:4.5x4mm
Beam Divergence: <1.2×0.5  mrad
Beam Height from Base :29mm
Power Stability*:<±3% per 4 hrs
Temperature Stabilizing :TEC
Warm Up Time:<1 minutes
Modulation: 0~30khz Analog or TTL
Optimum Operating Temperature :20~30oc
Storage Temperature:10~50oC
MTTF** :10,000 hrs

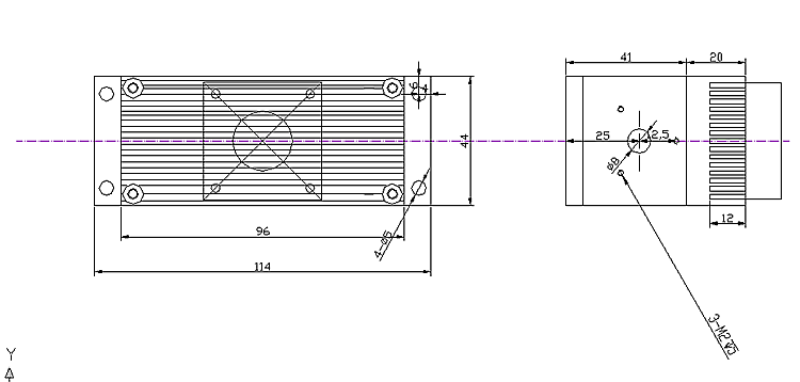

Dimensions ：114(L)x44(W)x65(H) mm

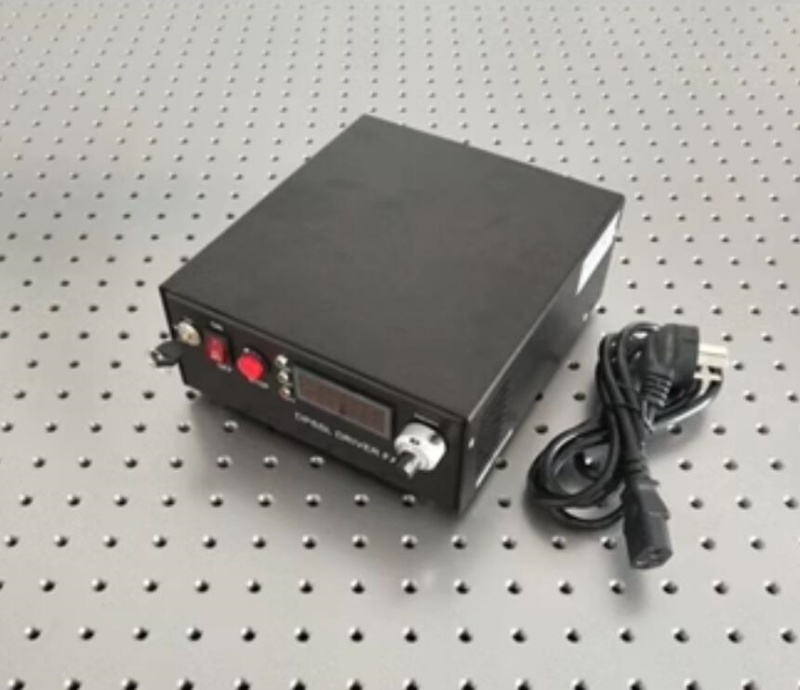

Adjustable power supply：LSR-PS-IIS: 179(W)x148(D)x56(H) mm3

Add collimator and fiber coupling for $300
