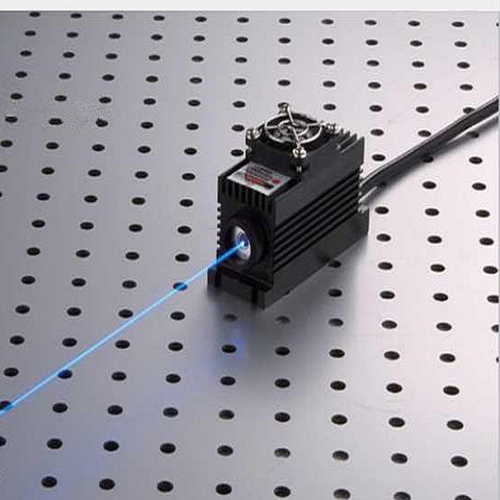

473nm 180mW-600mW blue solid-state laser DPSS can be coupled to an optical fiber

473nm 180mW-600mW blue solid-state laser DPSS can be coupled to an optical fiber

peculiarity
Compact form factor
The beam quality is excellent
Stable and reliable, long service life

apply
Scientific research experiments and industrial fields

Specifications

Model No:LSR473NL
Wavelength:473+/-2nm
Spatial Mode: Near TEM00
Output Power(average): >180mW-600mW
Spectral Linewidth:2nm
Operation Mode: CW or Modulation
Beam Size:3mm.
Beam Height :29mm
Beam Divergence:1.5mrad.
Power Stability*:<±5% per 2hrs
Beam quality: < 2.0m2
Cooling Way:TEC
Warm Up Time:<5 minutes
Modulation:0-30khz Analog or TTL
Optimum Operating Temperature :20~30oc
Storage Temperature:10~50oC
MTTF** :10,000 hrs

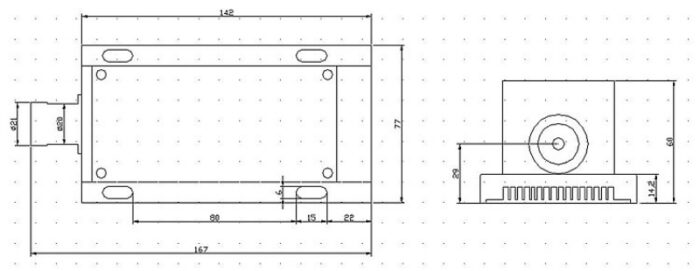

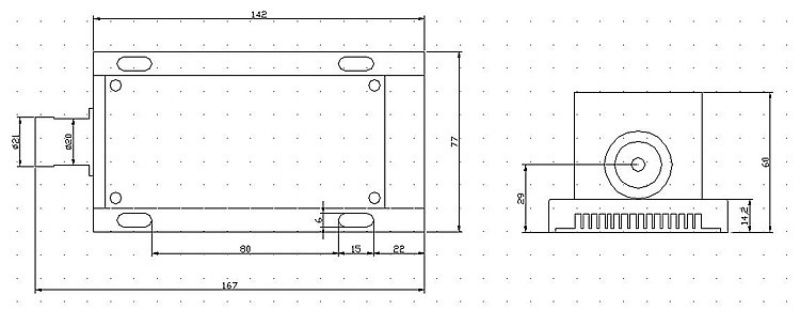

Laser Dimensions ：155(L)x77(W)x60(H) mm

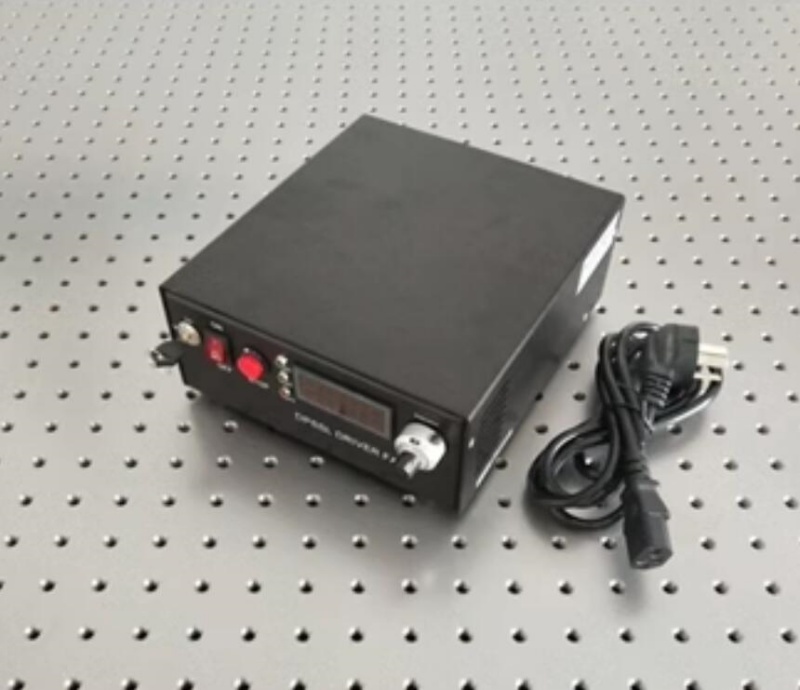

Adjustable power supply：178(W)x197(D)x84(H) mm3

Add collimator and fiber coupling for $300
