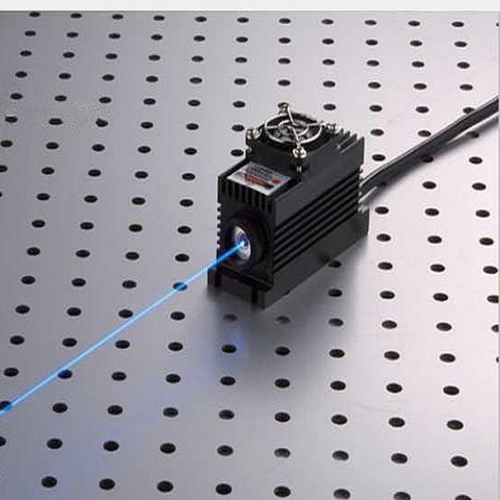

470nm 3.5W-40W blue semiconductor laser DPSS can be fiber coupled

470nm 3.5W-40W blue semiconductor laser DPSS can be fiber coupled

peculiarity
Compact form factor
The beam quality is excellent
Stable and reliable, long service life

apply
Scientific research experiments and industrial fields

Specifications

Model No:LSR470SD
Wavelength:470+/-6nm
Spatial Mode: Near TEM00
Output Power(average): >3.5W-40W
Spectral Linewidth:2nm
Spatial Mode :Multi Mode
Operation Mode: CW or Modulation
Beam Size:4mmx2mm.
Beam Height :29mm
Beam Divergence:<1.0×0.4mrad.
Power Stability*:<±3% per 4 hrs
Cooling Way:TEC
Warm Up Time:<1 minutes
Modulation:0-30khz Analog or TTL
Optimum Operating Temperature :20~30oc
Storage Temperature:10~50oC
MTTF** :10,000hrs

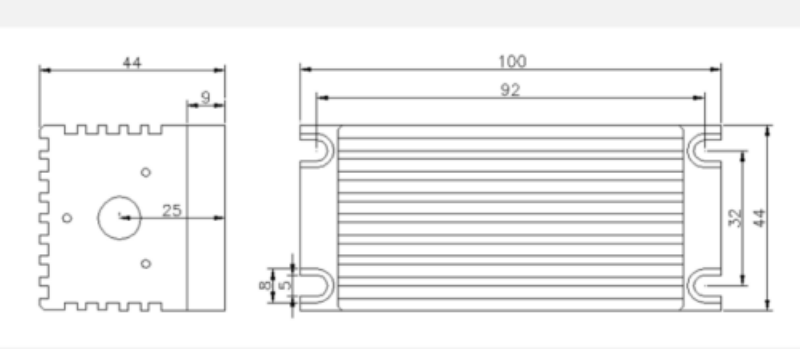

Laser Dimensions ：114(L)x44(W)x65(H) mm

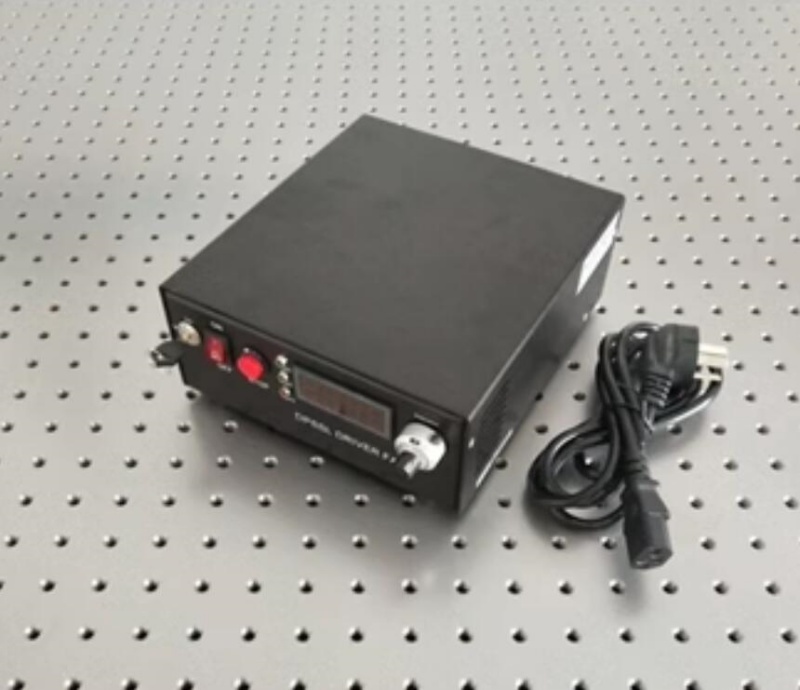

Adjustable power supply：178(W)x197(D)x84(H) mm3

Add collimator and fiber coupling for $300
