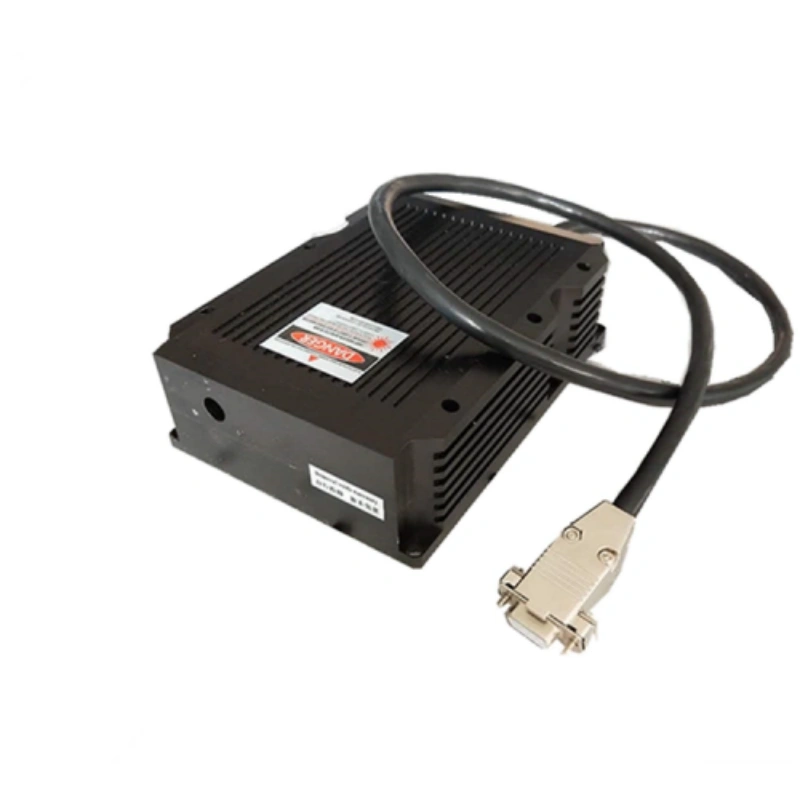

467nm 7W-26W blue semiconductor high power laser DPSS can be coupled with fiber
Specifications
Model No:LSR467CP
Wavelength:467+/-5nm
Spatial Mode: Near TEM00
Output Power(average): >7W-26W
Spectral Linewidth:2nm
Spatial Mode :Multi Mode
Operation Mode: CW or Modulation
Beam Size:5mmx6mm.
Beam Height :29mm
Beam Divergence:<1.1×0.7mrad.
Power Stability*:<±3% per 4 hrs
Cooling Way:TEC
Warm Up Time:<1 minutes
Modulation:0-30khz Analog or TTL
Optimum Operating Temperature :20~30oc
Storage Temperature:10~50oC
MTTF** :10,000hrs

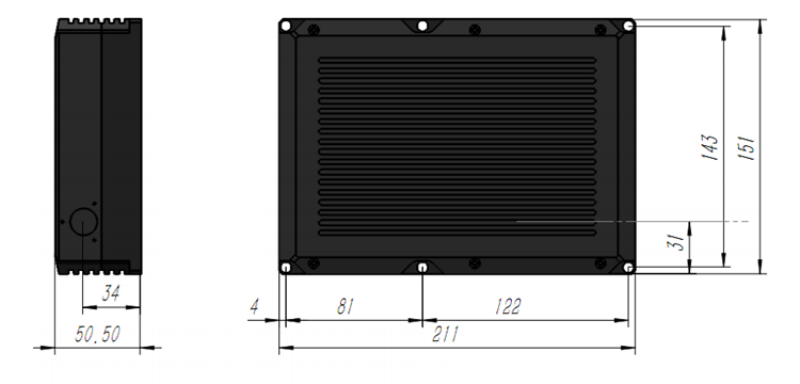

Laser Dimensions :211(L)x151(W)x50(H) mm

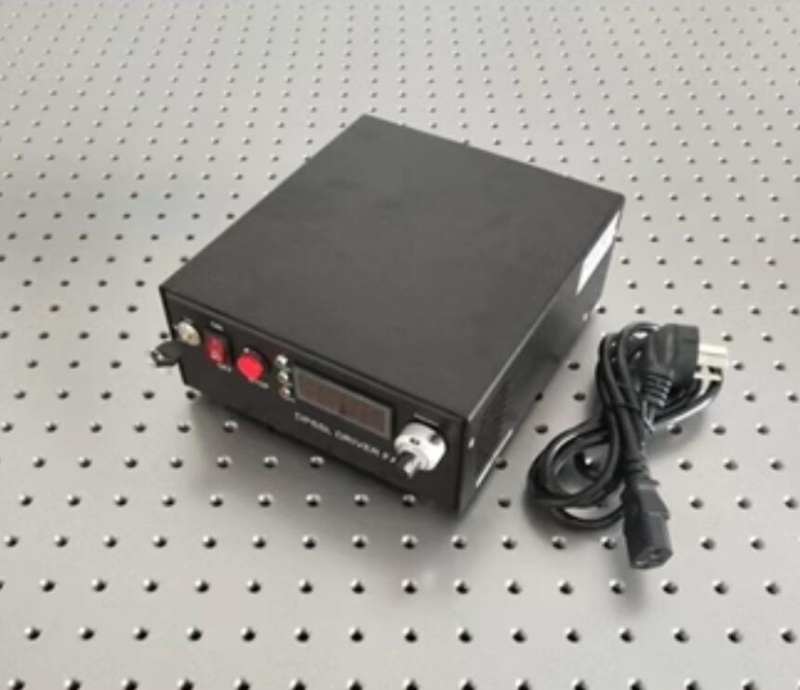

Adjustable power supply:178(W)x197(D)x84(H) mm3
