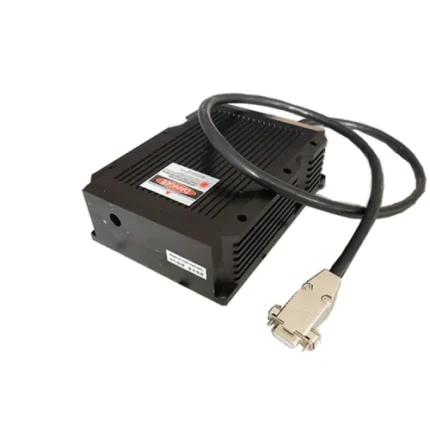

460nm 462nm 100mW 1000mW Blue Diode Laser DPSS can be coupled with fiber coupling

460nm 462nm 100mW 1000mW Blue Diode Laser DPSS can be coupled with fiber coupling

peculiarity
Compact form factor
The beam quality is excellent
Stable and reliable, long service life

apply
Scientific research experiments and industrial fields

Specifications

Model No:LSR460NL
Wavelength:460+/-4nm
Spatial Mode: Near TEM00
Output Power(average): >100mW-1000mW
Spectral Linewidth:2nm
Spatial Mode :Multi Mode
Operation Mode: CW or Modulation
Beam Size:4.5mmx4mm.
Beam Height :25mm
Beam Divergence:<1.2×0.5mrad.
Power Stability*:<±3% per 4 hrs
Cooling Way:TEC
Warm Up Time:<1 minutes
Modulation:0-30khz Analog or TTL
Optimum Operating Temperature :20~30oc
Storage Temperature:10~50oC
MTTF** :10,000 hrs
Laser Dimensions ：100(L)x40(W)x50(H) mm
Adjustable power supply：178(W)x197(D)x84(H) mm3

Add collimator and fiber coupling for $300
