46.2 degree rectangular frame with cross effect viewfinder laser infrared projection lamp laser module

46.2 degree rectangular frame with cross effect viewfinder laser infrared projection lamp laser module

Specifications:

Lens angle:46.2°
Number of grids:Rectangular frame with cross
Mounting height: 0~5m
Output wavelength: 650nm / 520nm / 450nm (optional)
Core power: 100MW (optional)
Working voltage: DC 2.8V to 5.2v
Working current: <500mA

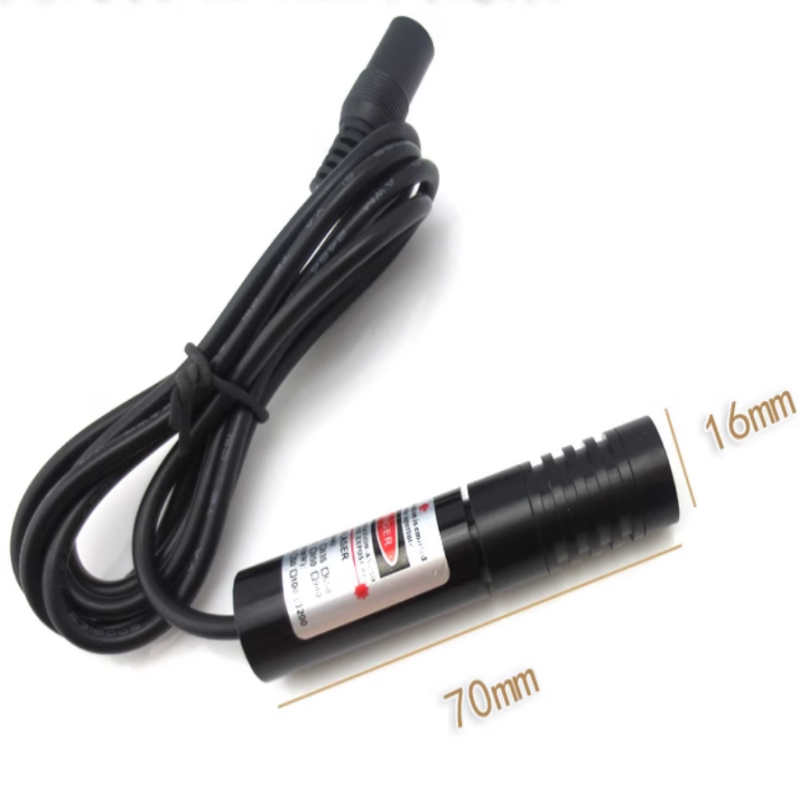

Laser dimension: 16 * 70mm (customizable)
Optical lens: grating ( Germany)

Spot description
At 0.5 meters: Length (46.2°): 427 mm
At 0.5 meters: Width (29.58°): 268 mm
At 0.5 meters: Cross length (36.74°): 332 mm Cross width (19.84°): 266 mm
0.5 meters: L-shaped side length: 36 mm
