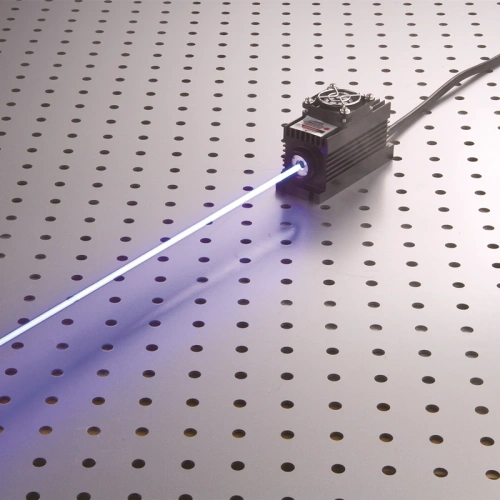

440nm 1W 2W 5W 8W semiconductor blue laser DPSS adjustable power supply

440nm 1W 2W 5W 8W semiconductor blue laser DPSS adjustable power supply

peculiarity
Compact form factor
The beam quality is excellent
Stable and reliable, long service life

apply
Scientific research experiments and industrial fields

Specifications

Model No:LSR440nmCPD
Wavelength:440+/-2nm
Spatial Mode: Near TEM00
Output Power(average): >1W-4W
Spatial Mode :Multi Mode
Operation Mode: CW or Modulation
Beam Height :29mm
Beam Size:4.5x4mm.
Beam Divergence:1.2×0.5mrad.
Power Stability*:<±3% per 4 hrs
Cooling Way:TEC
Warm Up Time:<1 minutes
Modulation:0-30khz Analog or TTL
Optimum Operating Temperature :20~30oc
Storage Temperature:10~50oC
MTTF** :10,000 hrs

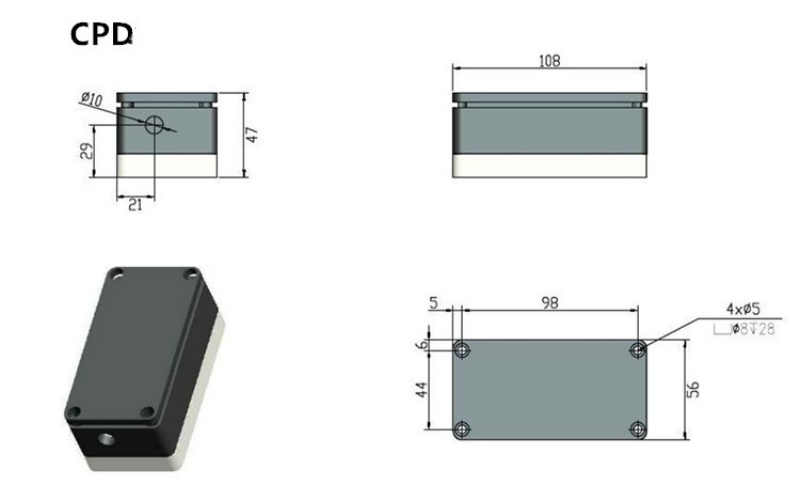

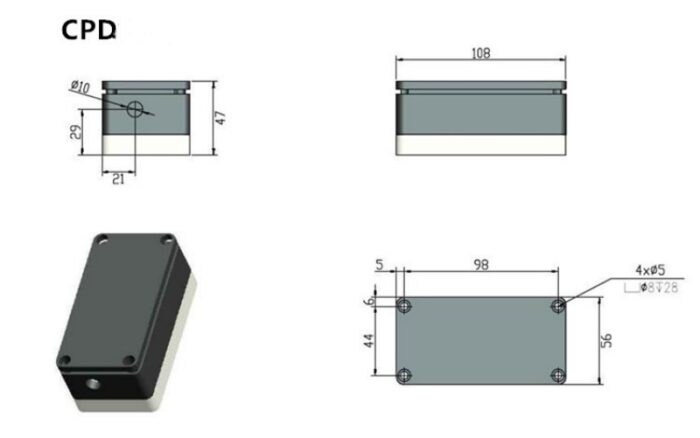

Laser Dimensions ：108(L)x56(W)x47(H) mm

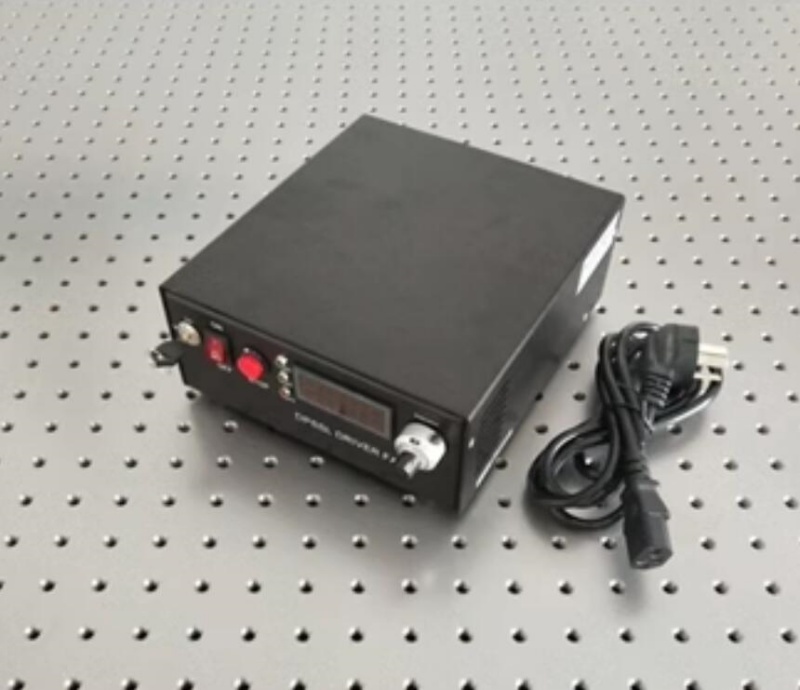

Adjustable power supply：179(W)x148(D)x56(H) mm3

Add collimator and fiber coupling for $300
