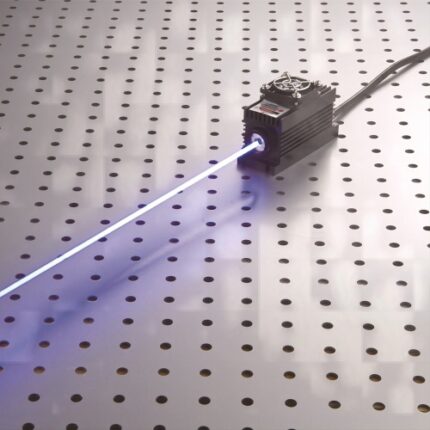

435nm 4.5W-25W high-power blue semiconductor laser DPSS Adjustable Power Supply

435nm 4.5W-25W high-power blue semiconductor laser DPSS Adjustable Power Supply

FEATURES
TEC cooled
Longlife operation
Analog/TTL modulation
Collimated straight beam
High efficiency
High reliability

APPLICATIONS
Laser show
Display
Laser Alignment
Scanning Biochemistry
Material Inspection Lidar

Specifications

Model No:LSR435cpd
Wavelength:435+/-5nm
Spatial Mode: TEM00
Output Power(average): >4.5W-25W
Spatial Mode :Multi Mode
Operation Mode: CW or Modulation
Beam Height :29mm/34mm
Beam Size:3x4mm.5x6mm.7x7mm
Beam Divergence:1.1×0.7mrad.1.1×1.5mrad,1.5×1.5mrad
Power Stability*:<±3% per 4 hrs
Cooling Way:TEC
Warm Up Time:<1 minutes
Optimum Operating Temperature :20~30oc
Storage Temperature:10~50oC
MTTF :10,000 hrs

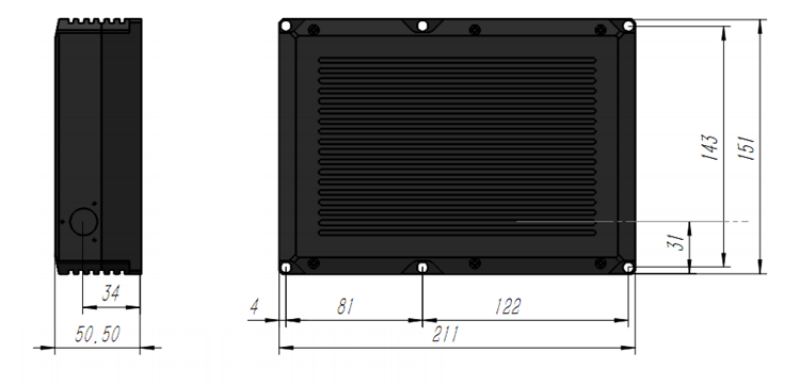

Laser Dimensions ：97(L)x91(W)x46(H) mm.211(L)x151(W)x50(H) mm

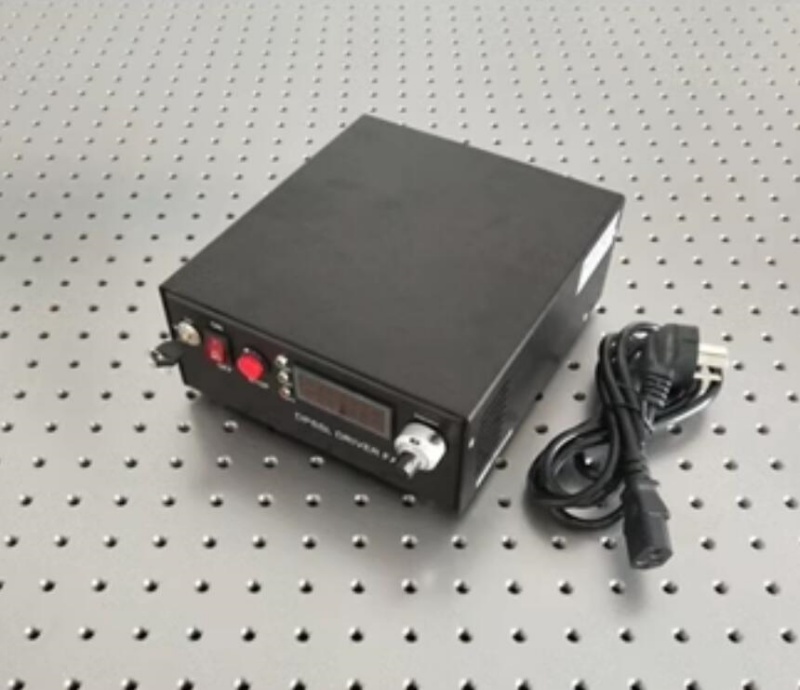

Adjustable power supply：178(W)x197(D)x84(H) mm3

Add collimator and fiber coupling for $300
