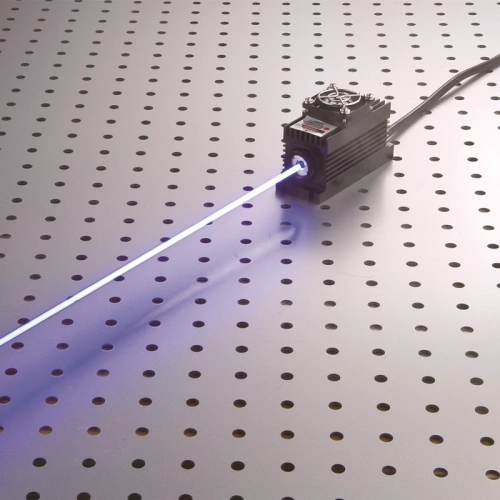

410nm 200mW-3000mW blue semiconductor multimode laser DPSS adjustable power supply
Specifications
Model No:LSR410NL
Wavelength:410+/-5nm
Spatial Mode: TEM00
Output Power(average): >200mW-3000mW
Spatial Mode :Multi Mode
Operation Mode: CW or Modulation
Beam Height :29mm
Beam Size:3x4mm.
Beam Divergence:1.1×0.7mrad.
Power Stability*:<±3% per 4 hrs
Cooling Way:TEC
Warm Up Time:<1 minutes
Optimum Operating Temperature :20~30oc
Storage Temperature:10~50oC
MTTF** :10,000 hrs

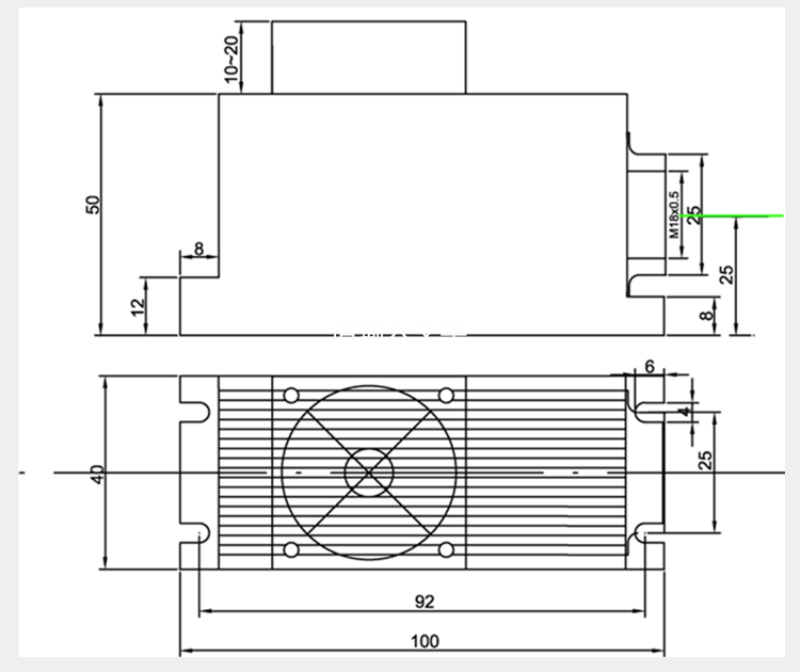

Laser Dimensions :97(L)x91(W)x46(H) mm

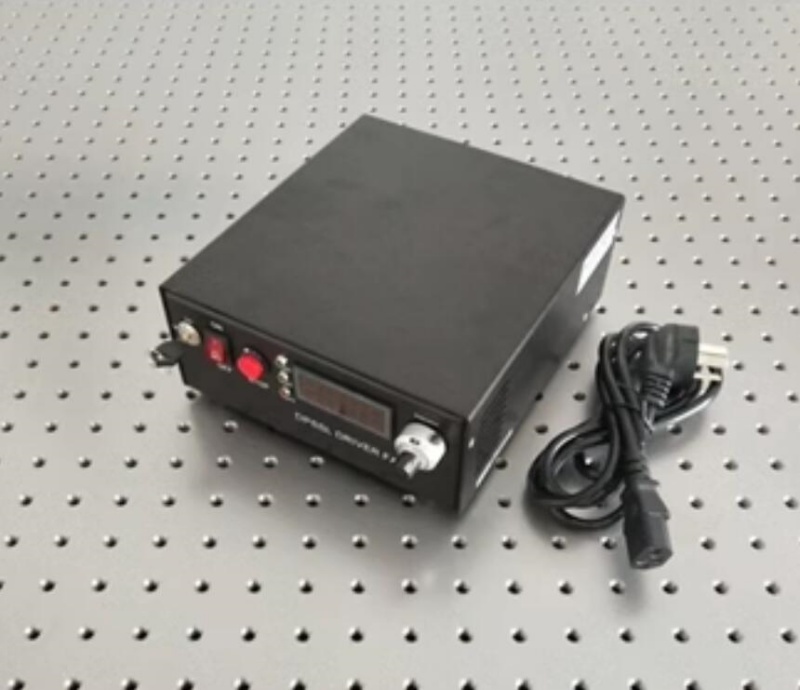

Adjustable power supply:178(W)x197(D)x84(H) mm3
