41° degree rectangular frame with cross effect laser module adjustable brightness adjustable coarse spot special spot positioning light

41° degree rectangular frame with cross effect laser module adjustable brightness adjustable coarse spot special spot positioning light

Specifications:

Lens angle:41°
Number of grids:Rectangular frame with cross
Mounting height: 0~5m
Output wavelength: 650nm / 520nm / 450nm (optional)
Core power: 100MW (optional)
Working voltage: DC 2.8V to 5.2v
Working current: <500mA

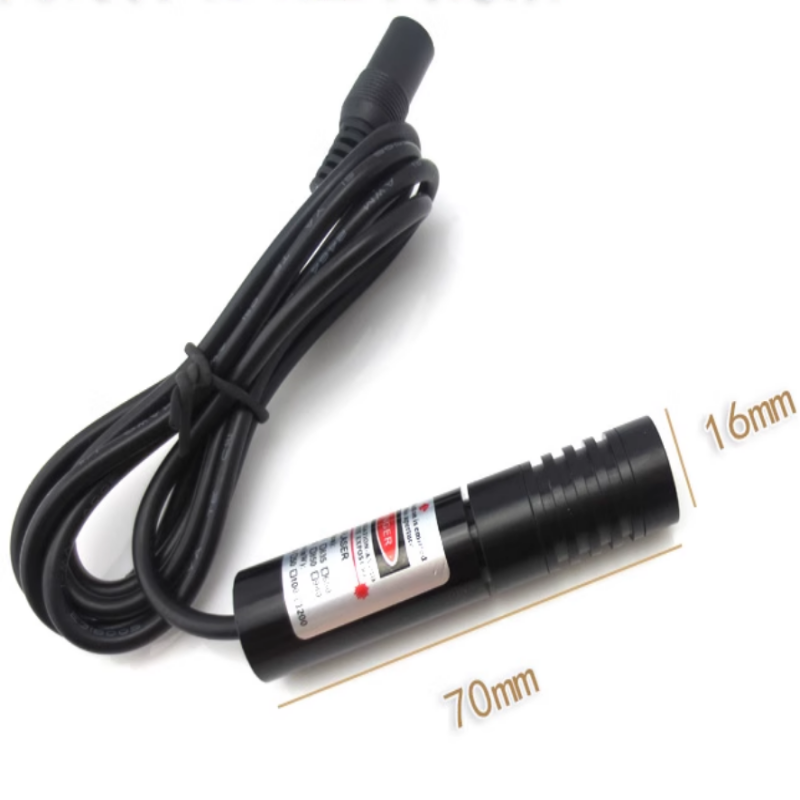

Laser dimension: 16 * 70mm (customizable)
Optical lens: grating ( Germany)

Spot description
At 0.5 meters: Length (40.6°): 370 mm
At 0.5 meters: Width (31.5°): 281mm
At 0.5 meters: Cross length (13°): 115 mm
