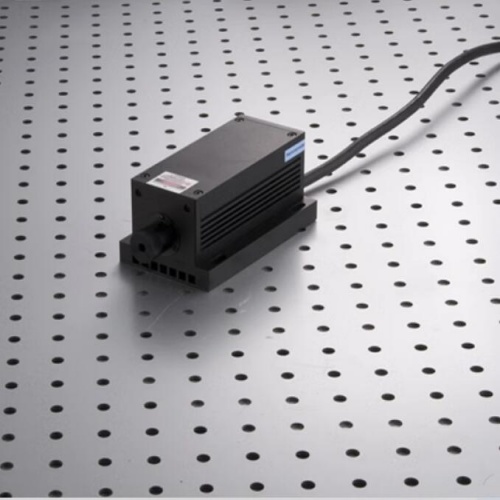

375nm 150mW-3500mW DPSS UV semiconductor laser fluorescence detection of organisms
Specifications
Model No:LSR375NL
Wavelength:375+/-5nm
Spatial Mode: TEM00
OutputPower(average):>150mW.300mW.450mW.500mW.900mW.1800mW.2000mW.3500mW
Operation Mode: CW or Modulation
Beam Diameter: 2X4mm
Beam Divergence: <1.5X0.2 mrad
Beam Height from Base :25mm
Power Stability*:<±3% per 4 hrs
Temperature Stabilizing :TEC
Warm Up Time:<1 minutes
Beam Quality m2:<2
Fibercoupling acceptable:>25um NA0.22
Optimum Operating Temperature :20~30oc
Storage Temperature:10~50oC
MTTF** :10,000 hrs
Dimensions ：100(L)x40(W)x50(H) mm

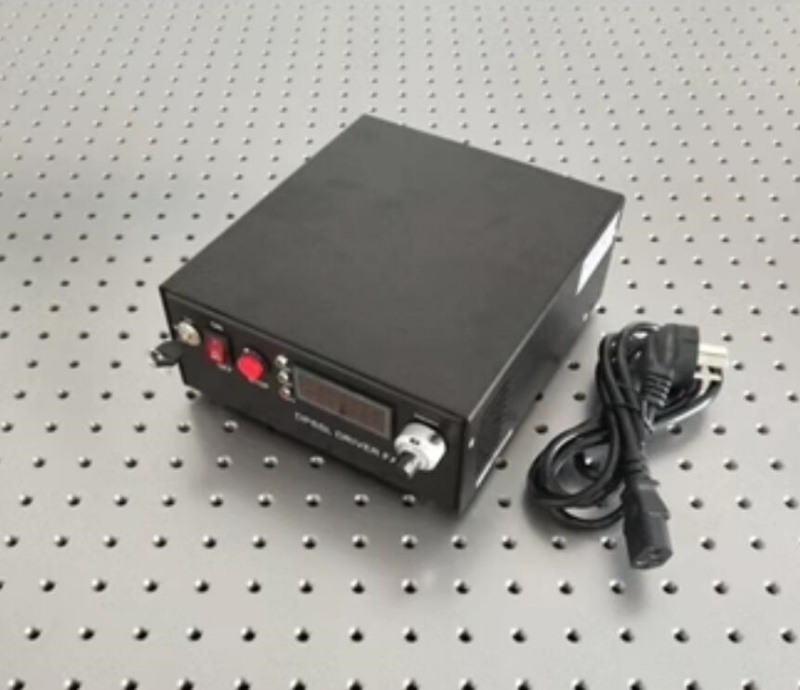

Adjustable power supply：LSR-PS-FA: 179(W)x148(D)x56(H) mm3
Add collimator and fiber coupling for $300
