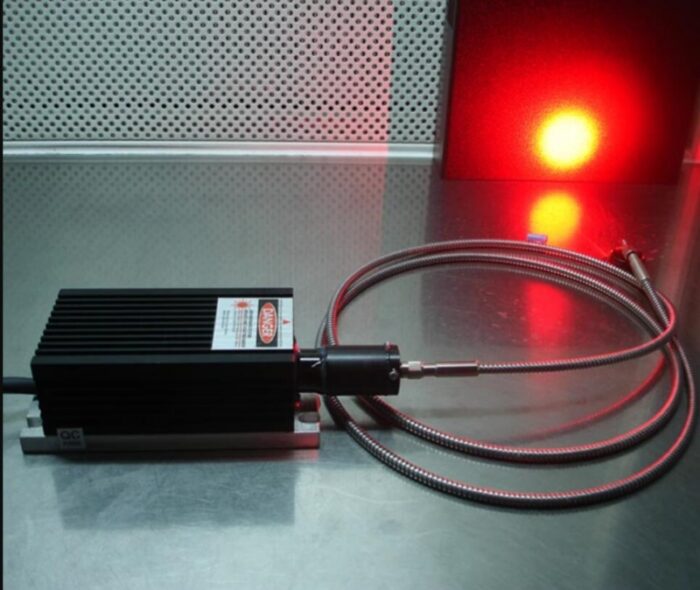

355nm 3000mW DPSS UV solid-state pulsed laser DPSS With Power Supply

355nm 3000mW DPSS UV solid-state pulsed laser DPSS With Power Supply

[Specifications]

Output Wavelength: 355nm±1nm
Output Power(Average): 3000mW@30KHz
Operating Mode: Pulsed laser
Single Pulse Energy: 100μJ@30kHz
Repeat frequency: 30~100kHz
Pulse Width: <20ns@30KHz
Spatial Mode: TEM00(M²<1.3)
Beam Diameter(1/e2): 0.5±0.1mm
Power Stability: <3% RMS over 8 hours
Pulse stability: <3% RMS over 10mins
Light spot stability: <50μrad
Beam Divergence: <2mrad (full angle)
Spot roundness: >90%
Control method: RS232, Gate, Trigger
Cooling method: Air-cooling
Polarization direction: Horizontal
Polarization: >100:1
Optimum Operating Temperature: 15~35℃
Relative humidity: 10% ~ 80%
Warm Up Time:<15 minutes
Operating Voltage: 90V ~ 260V
Warranty: 1 Year

Add collimator and fiber coupling for $300
