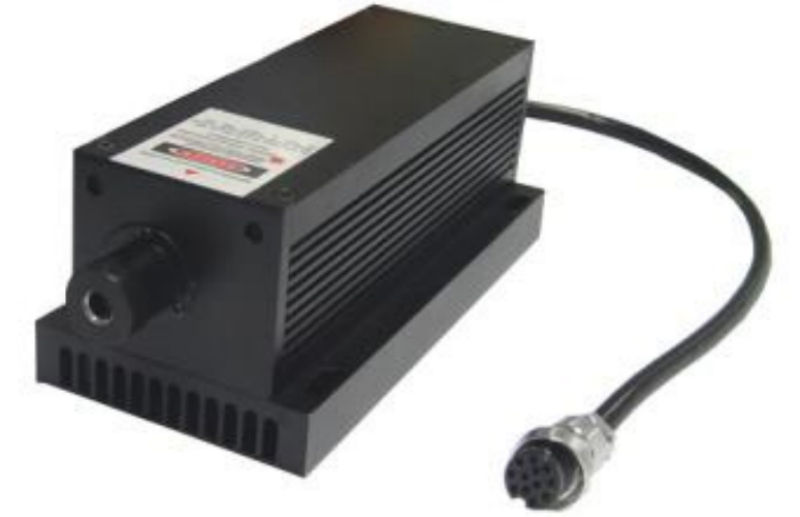

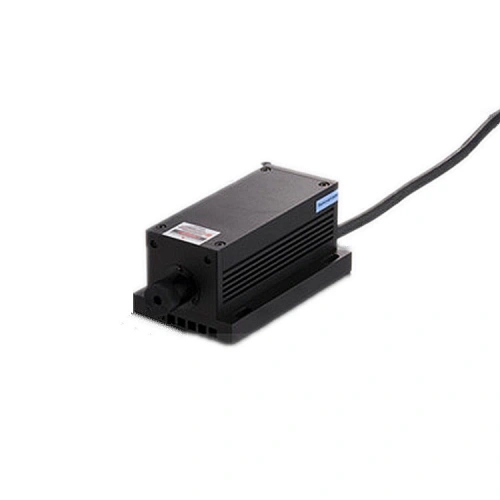

355nm 10mW -100mW DPSS UV solid-state pulsed laser Adjustable Power Supply

355nm 10mW -100mW DPSS UV solid-state pulsed laser Adjustable Power Supply

Passively Q-switch Pulse UV laser
Repeat rate adjustable
External controllable

Easy use & maintenance free
Longlife operation
High efficiency
High reliability

Specifications

Model No:LSR355F-Q
Wavelength:355+/-1nm
Spatial Mode: near TEM00
Output Power(average): >1, 5, 10,…, 100mW
Operation Mode: Pulsed laser
Single pulse energy: 1-10uJ
Pulse Width: 5-20ns
Peak Power: 100W~2KW
Repeat rate: 1~10KHz
Polarization: >50:1
Beam Spot Shape: Circular, aspect ratio<1.1:1
Pointing Stability:<0.05 mrad
Beam Diameter(1/e2): 2mm
Beam Divergence: <1.5  mrad
Beam Height from Base :45mm
Power Stability*:<±5% per 4 hrs
Temperature Stabilizing :TEC
Warm Up Time:<5 minutes
Optimum Operating Temperature :20~30oc
Storage Temperature:10~50oC
MTTF** :10,000 hrs

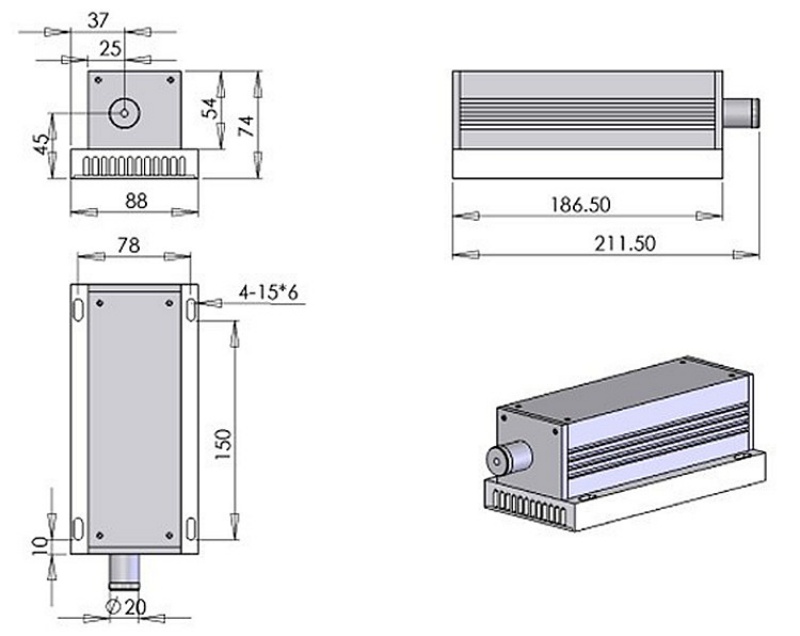

Dimensions ：211(L)x88(W)x74(H) mm

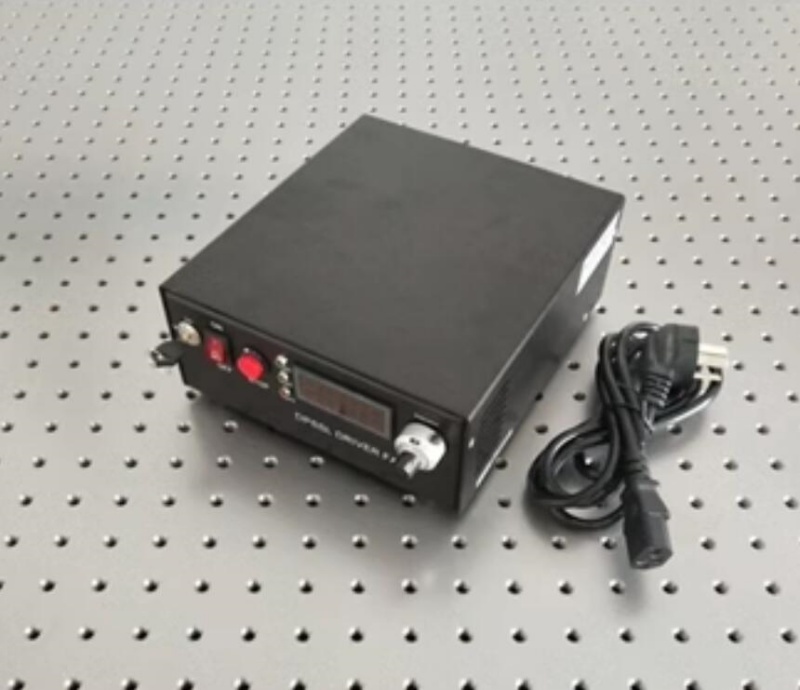

Adjustable power supply：LSR-PS-FA: 178(W)x197(D)x84(H) mm3

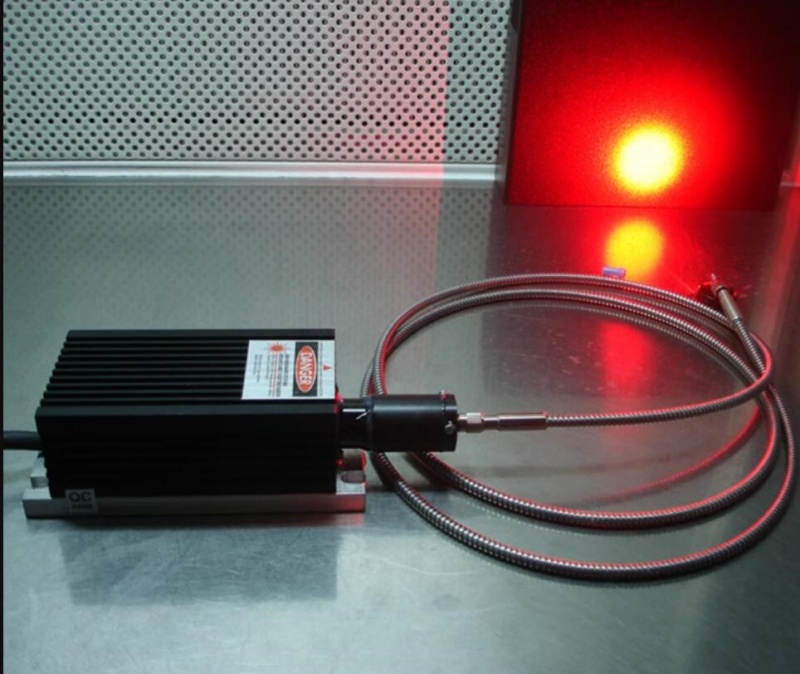

Add collimator and fiber coupling for $300
