30.2 degree rectangular frame with cross effect laser module adjustable brightness adjustable coarse spot special spot positioning light

30.2 degree rectangular frame with cross effect laser module adjustable brightness adjustable coarse spot special spot positioning light

Specifications:

Lens angle:30.2°
Number of grids:Rectangular frame with cross
Mounting height: 0~5m
Output wavelength: 650nm / 520nm / 450nm (optional)
Core power: 100MW (optional)
Working voltage: DC 2.8V to 5.2v
Working current: <500mA

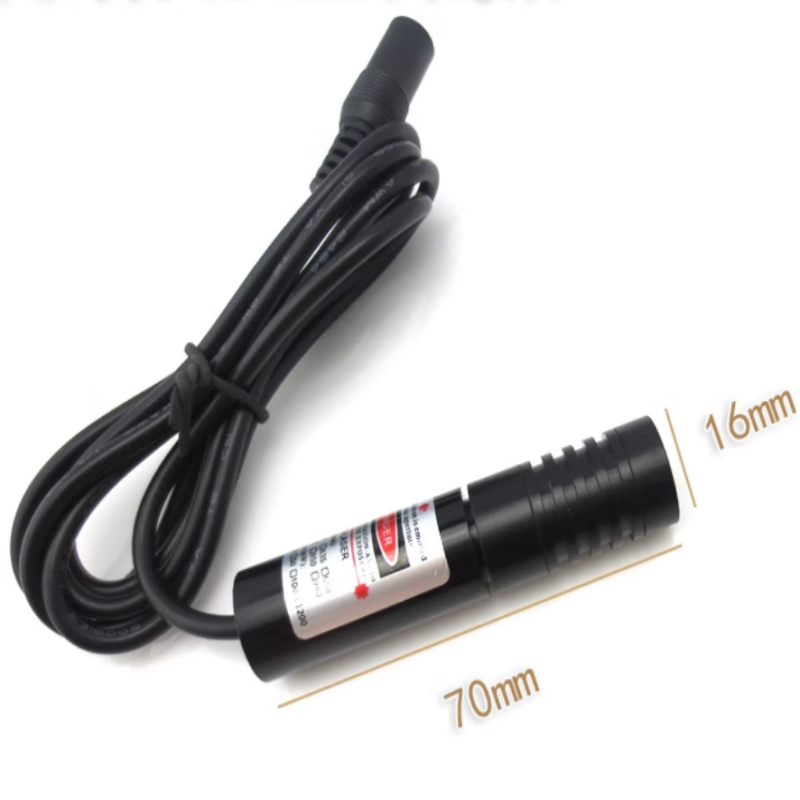

Laser dimension: 16 * 70mm (customizable)
Optical lens: grating ( Germany)

Spot description
At 0.5 meters: Length (30.2°): 270 mm
At 0.5 meters: Width (23.2°): 206mm
At 0.5 meters: Cross length (9.14°): 80 mm Cross width (6.98°): 61 mm
0.5 meters: L–shaped side length: 29 mm
