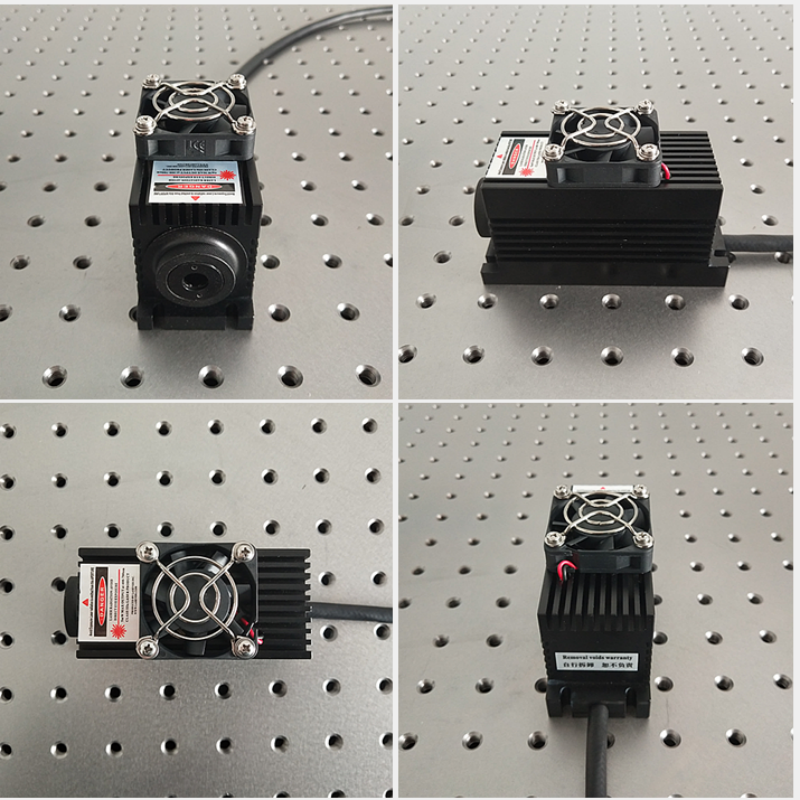

1875nm 700mW 1200mW 2500mW 5W 10W IR Laser semiconductor Single Mode Laser DPSS Adjustable Power Supply
Specifications
Model No:LSR1875NL
Wavelength:1875+/-5nm
Spatial Mode:TOM00
Output Power(average): 700mW 1200mW 2500mW 5W 10W
Operation Mode: CW or Modulation
Spectral width：0.5nm
Beam Quality m2:≤1.2
Beam Asymmetry:≤1：1.2
Beam Size:2.8mm
Beam Divergence:0.8mrad
Beam Height from Base :25mm
Power Stability*:<±2% per 2hrs
Temperature Stabilizing :TEC
Warm Up Time:<1minutes
Modulation: 0~30khz Analog or TTL
MTTF** :10,000 hrs
Optimal operating temperature：20-30℃
Storage temperature：10-50℃

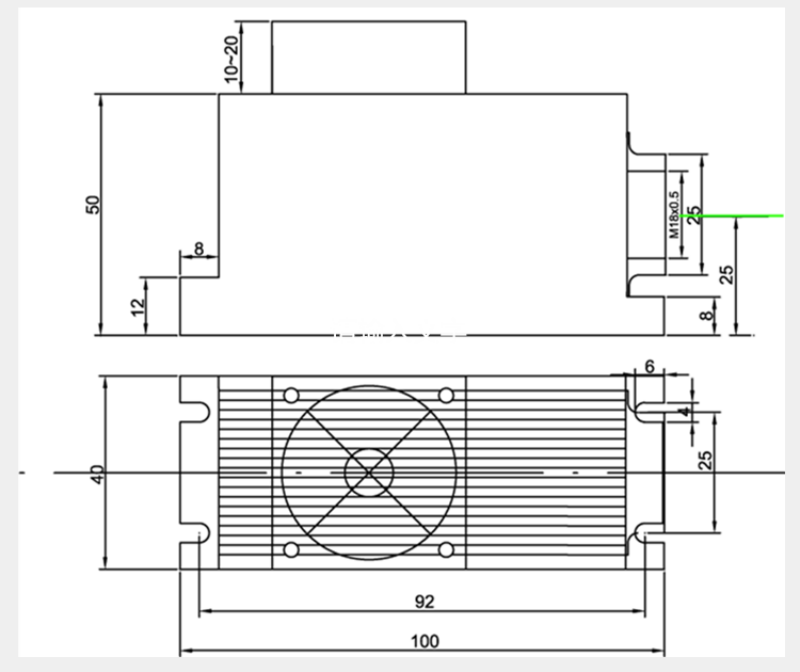

Dimensions ：100(L)x40(W)x50(H) mm

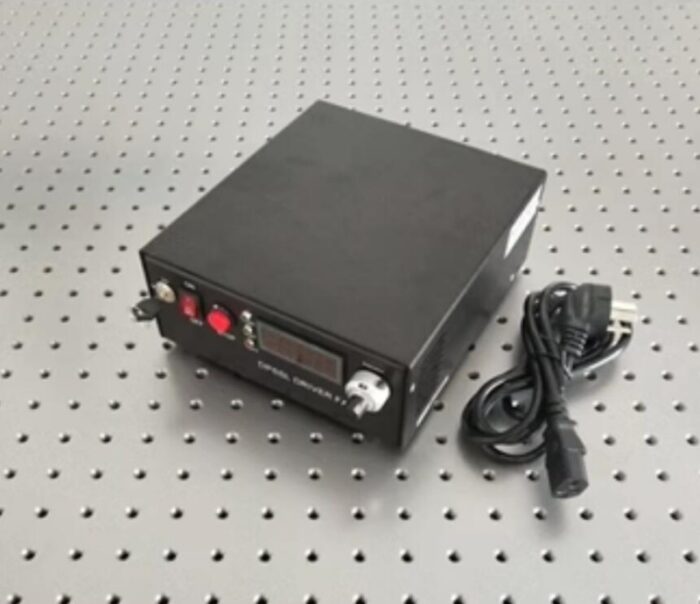

Adjustable power supply：LSR-PS-FA: 179W)x148(D)x56(H) mm3
Add collimator and fiber coupling for $300
