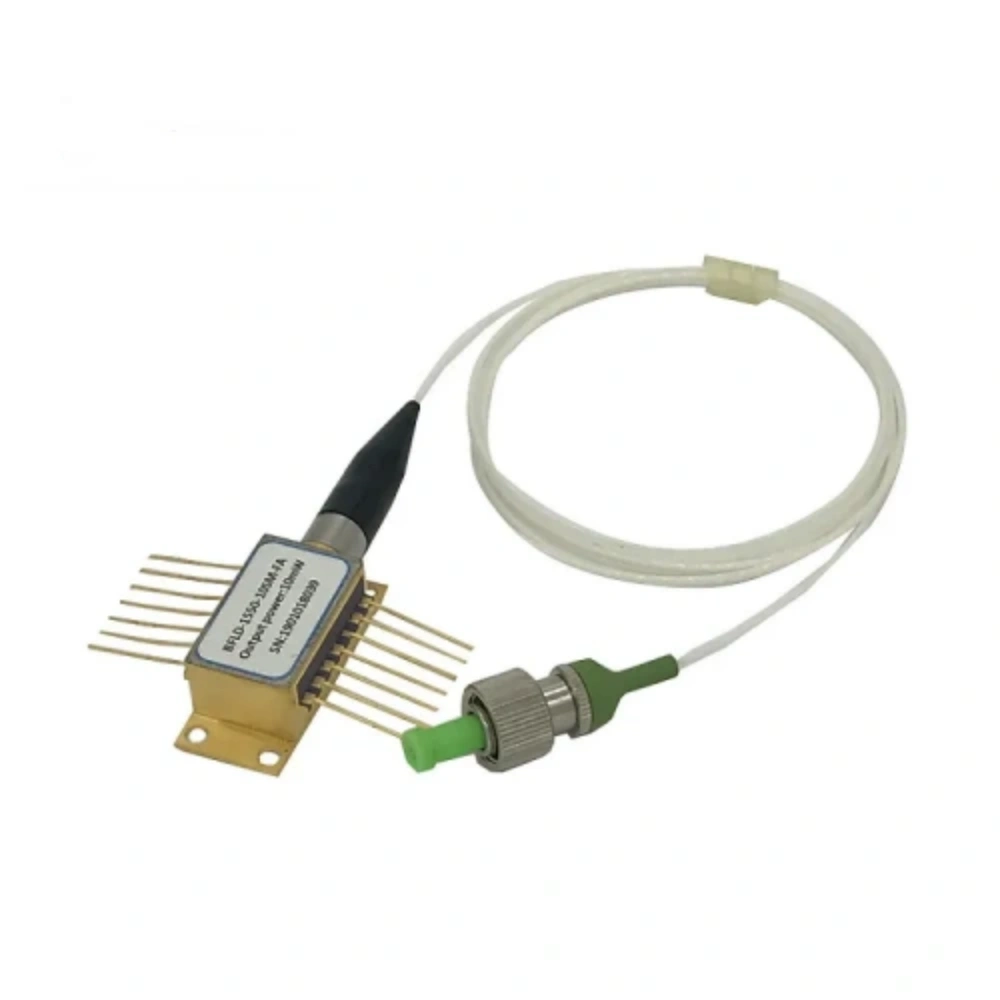

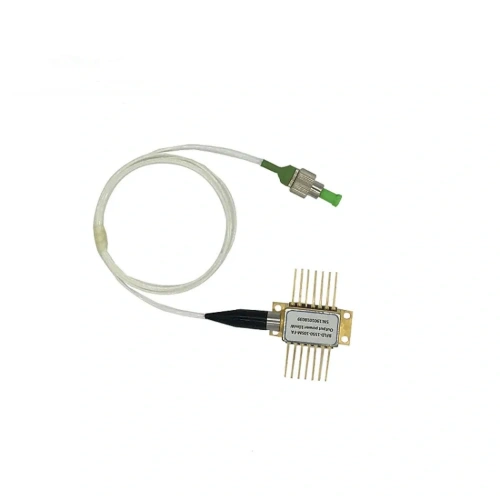

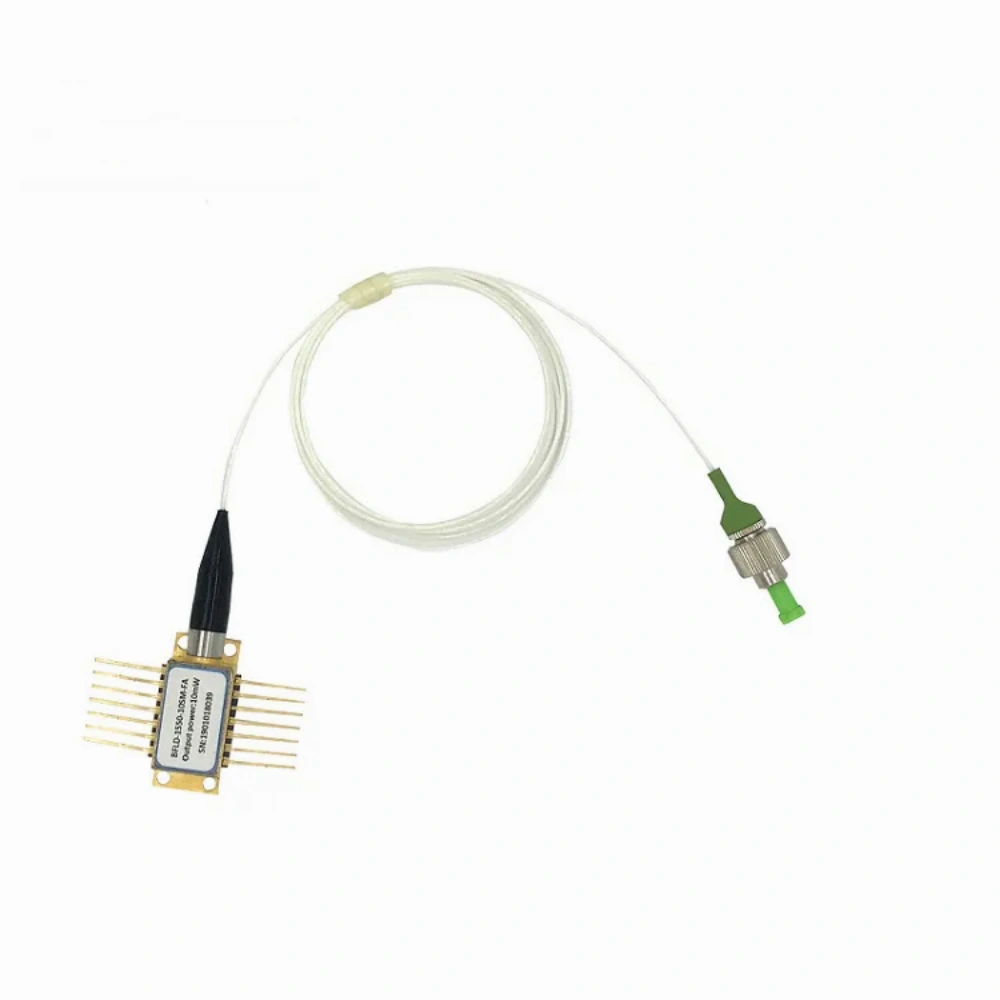

1570nm 10mW DFB 14PIN Butterfly Package Single Fiber Laser Built-in TEC

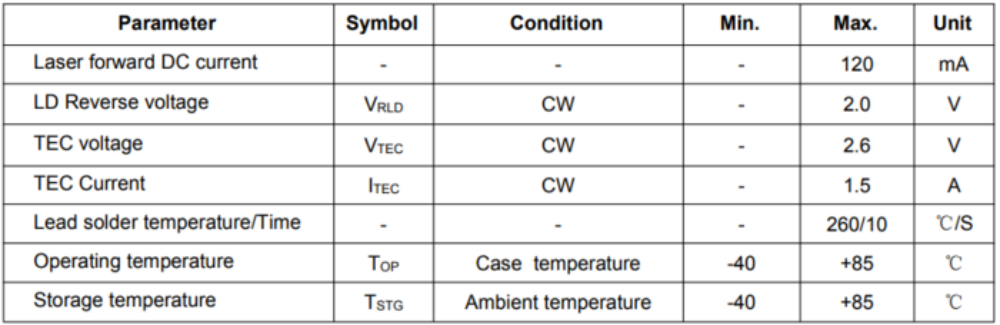

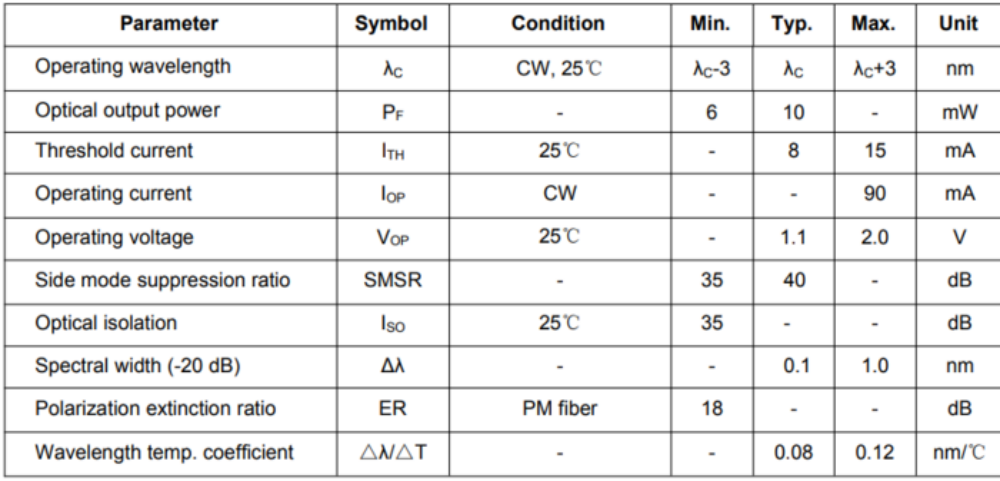

parameter:
Wavelength: 1570nm
Output power: 10mW
Line width: 2-3MHZ
Threshold current:15mA

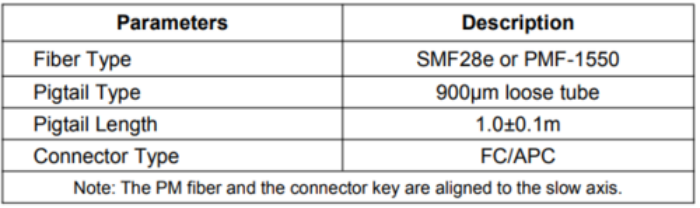

Fiber specification: single mode Fiber，Polarization-maintaining fibers
Fiber connection: FC/APC
Chip type: DFB

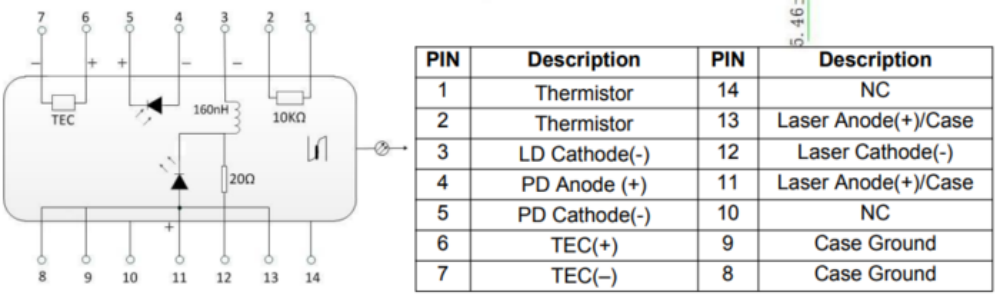

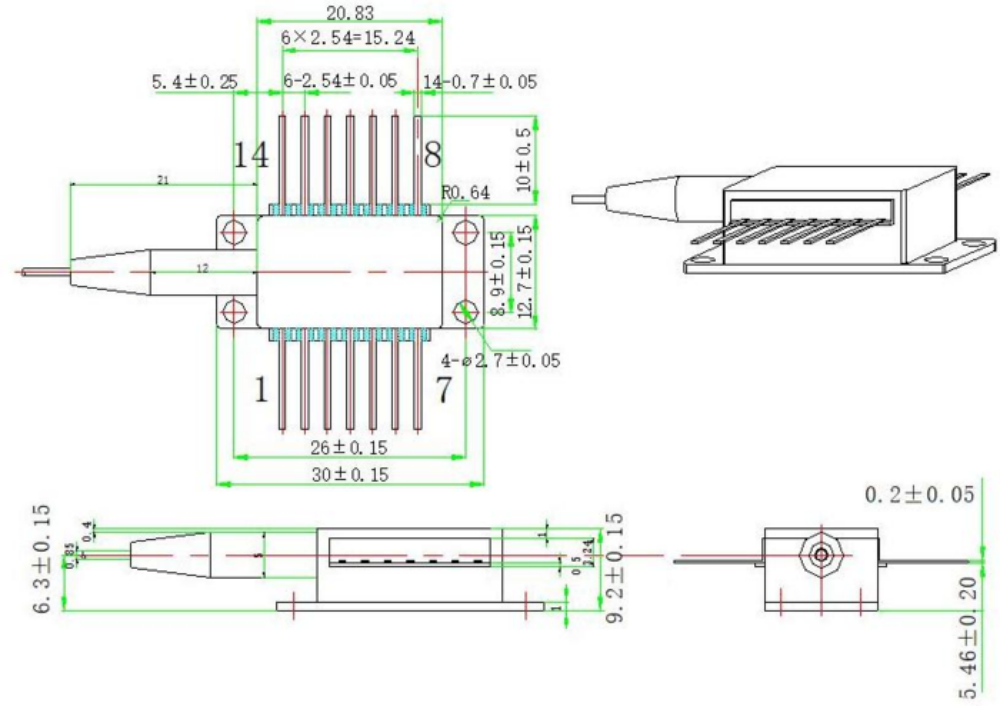

Package Type: Butterfly 14PIN
Peculiarity:
Multi-quantum well (MQW) distributed feedback (DFB) lasers;
14pin Butterfly package;

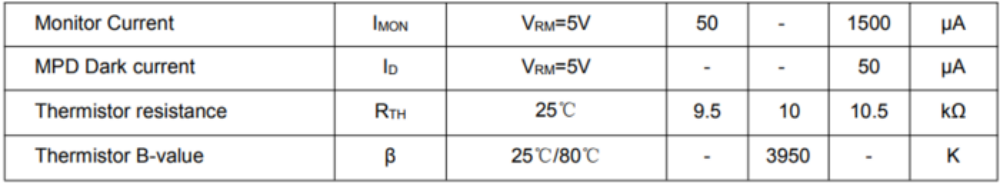

Built-in thermistor, and TEC;
The fiber type can be SMF-28e or PM fiber;
Working temperature: -20~ +70°C;
RoHS compliant.
Apply:
Optical fiber communication;
optical instruments;
fiber optic sensors;
Light source
