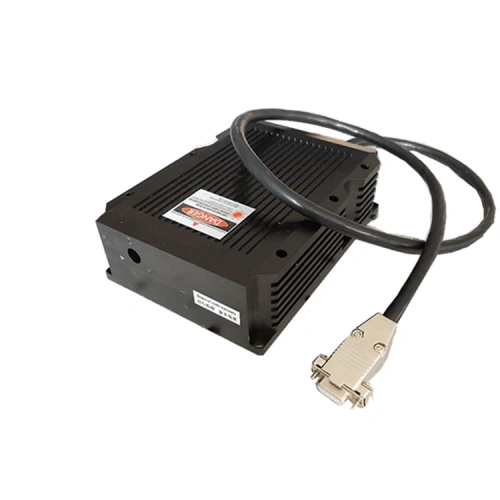

1550nm High Power 3W 4W 5W 10W 15W 20W 30W infrared laser semiconductor laser DPSS digital display Adjustable Power Supply

1550nm 3W 4W 5W 10W 15W 20W 30W infrared laser semiconductor laser DPSS digital display Adjustable Power Supply

Specifications

Model No:LSR1550CP
Wavelength:1550+/-5nm
Spatial Mode:Multimode
Output Power(average): 3W 4W 5W 10W 15W 20W 30W
Operation Mode: CW or Modulation
Beam Stability: <0.05mrad
Beam Size: 6mmx6mm
Beam Divergence: <3mrad
Beam Height from Base :29mm
Beam Quality m2:<2
Power Stability*:<±3% per 4hrs
Temperature Stabilizing :TEC
Warm Up Time:<5minutes
Modulation: 0~30khz Analog or TTL
MTTF** :10,000 hrs
Optimal operating temperature：20-30℃
Storage temperature：10-50℃
Dimensions ：211(L)x151(W)x50(H) mm
Adjustable power supply：LSR-PS-FA: 178W)x197(D)x84(H) mm3

Add collimator and fiber coupling for $300
