1550nm 80mW DFB 14PIN Butterfly Package Fiber Laser Built-in TEC

1550nm 80mW DFB 14PIN Butterfly Package Fiber Laser Built-in TEC

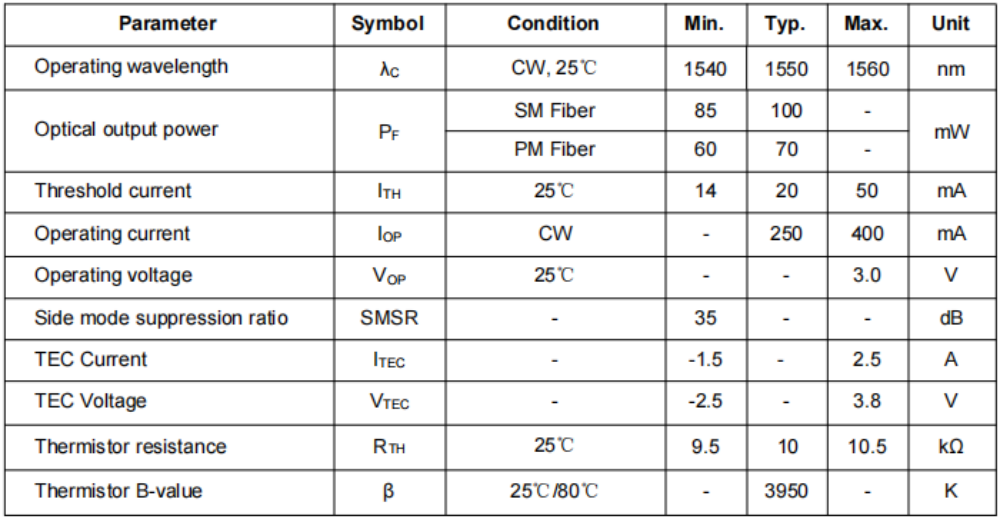

parameter:

Wavelength: 1550nm
Output power: 80mW
Fiber specification: single mode. Polarization
Threshold current:50mA，
Operating current:400mA
Operating Voltage:3V
Fiber connection: FC/APC.
Chip type: DFB

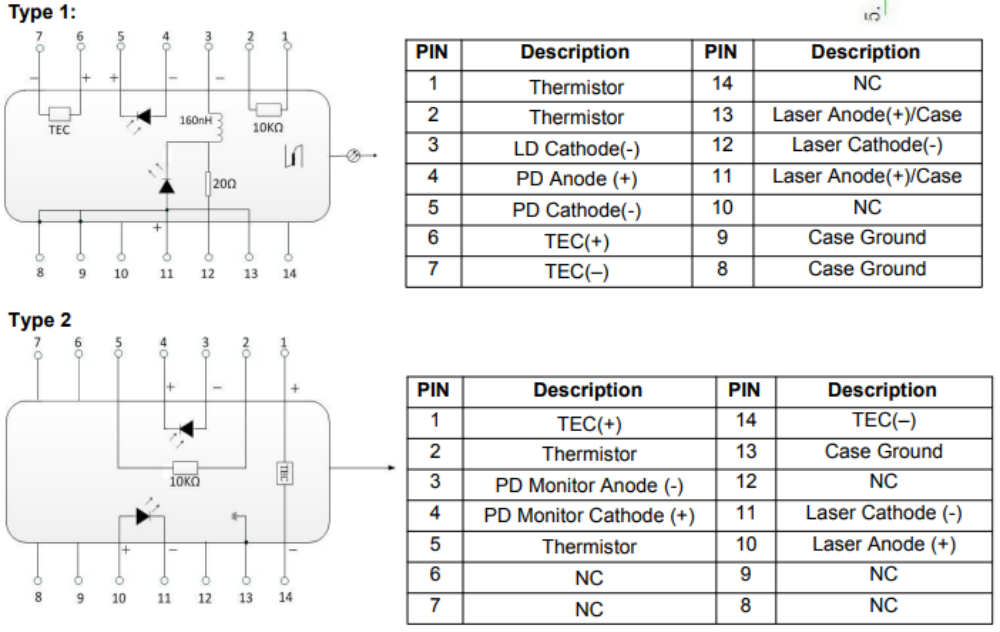

Package Type: Butterfly 14PIN

Peculiarity:

High optical output power;
Built-in isolators;
FC/APC SM optical fiber;
High side mode rejection ratio. OC-48 output compatible.

Apply:

test systems;
High optical power system.
