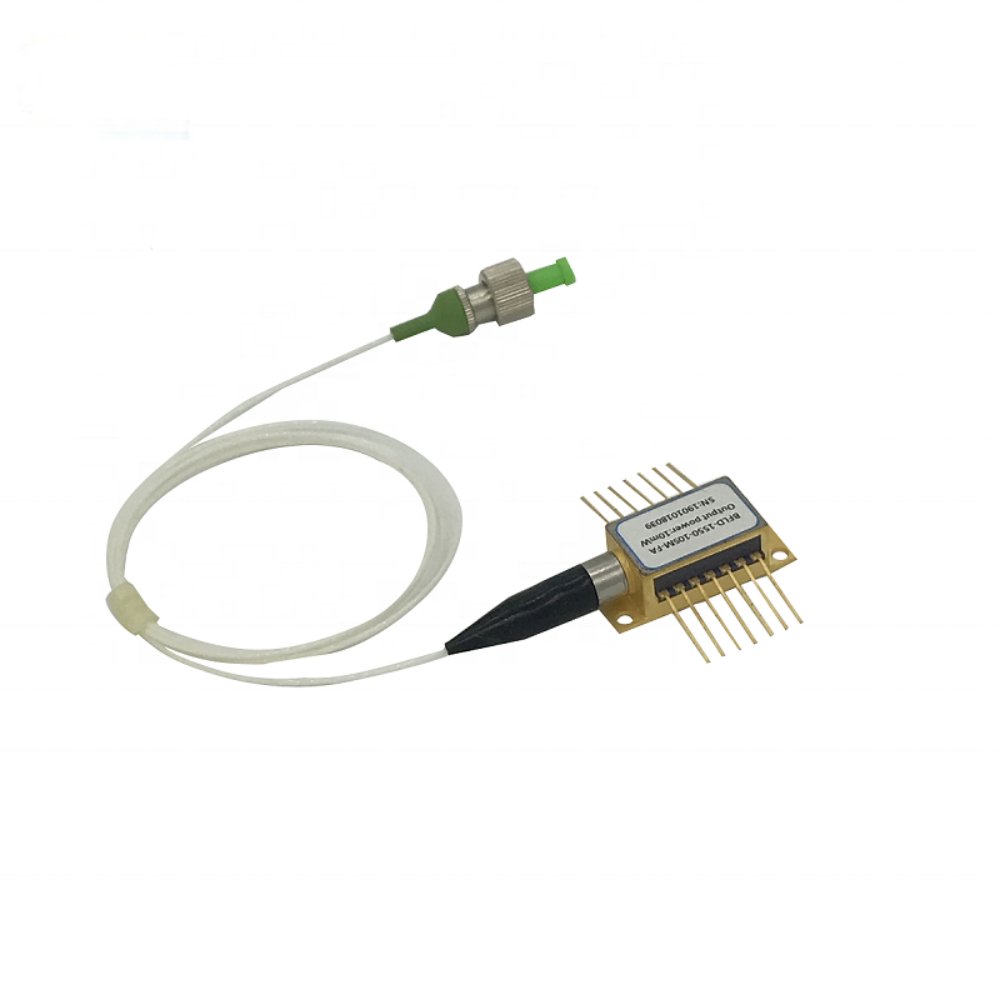

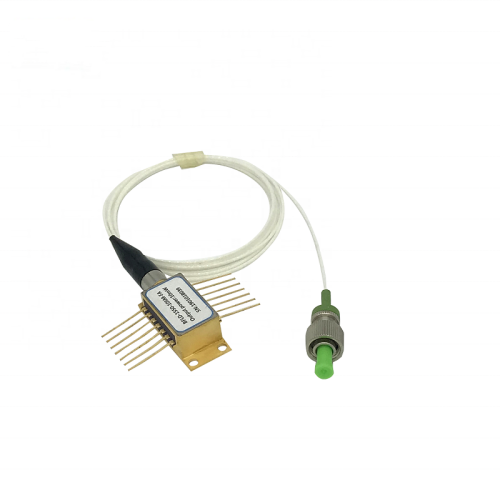

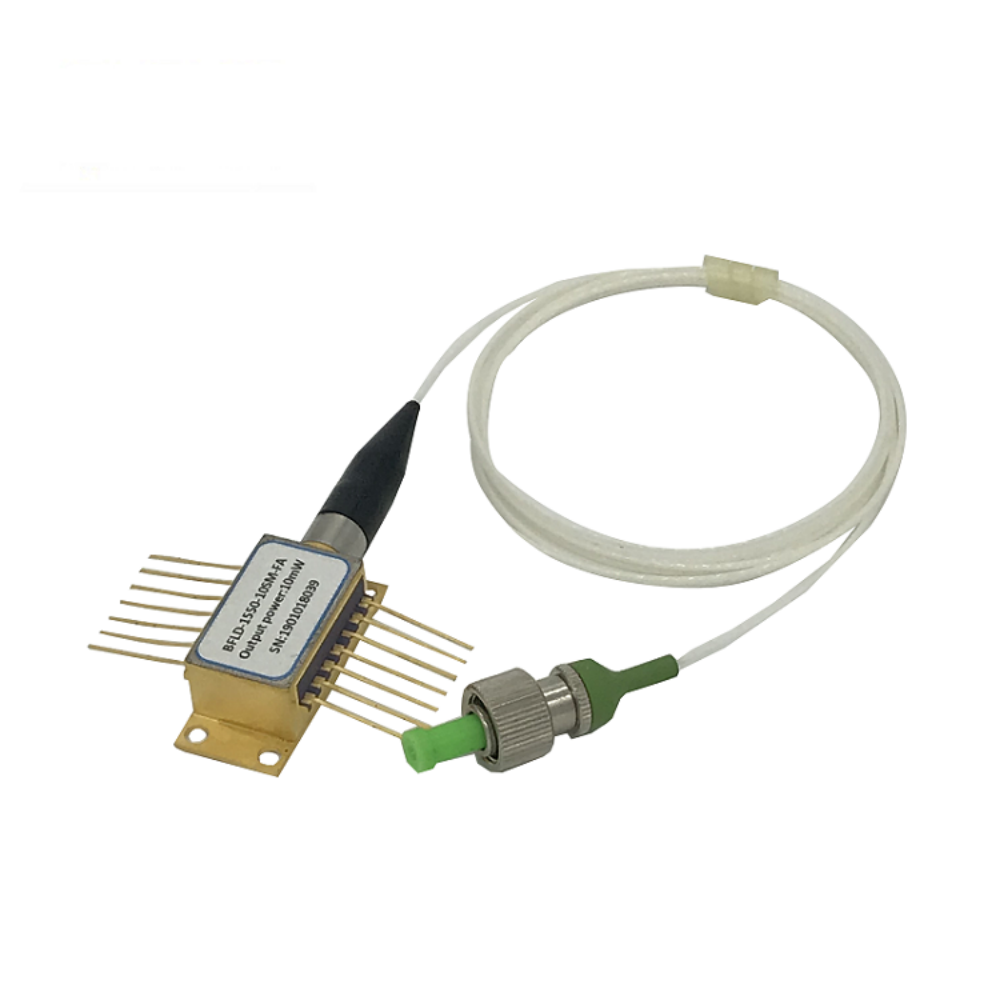

1550nm 50mW 100khz-200khz narrow linewidth butterfly laser For lidar fiber optic communication and other equipment

1550nm 50mW 100khz-200khz narrow linewidth butterfly laser For lidar  fiber optic communication and other equipment

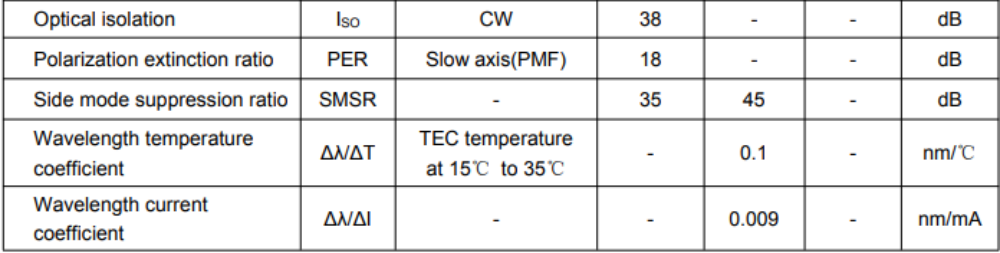

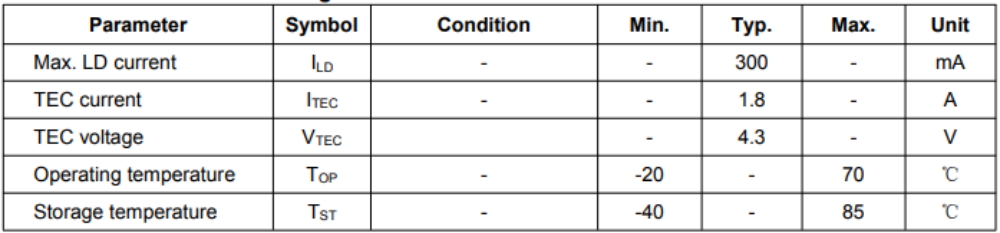

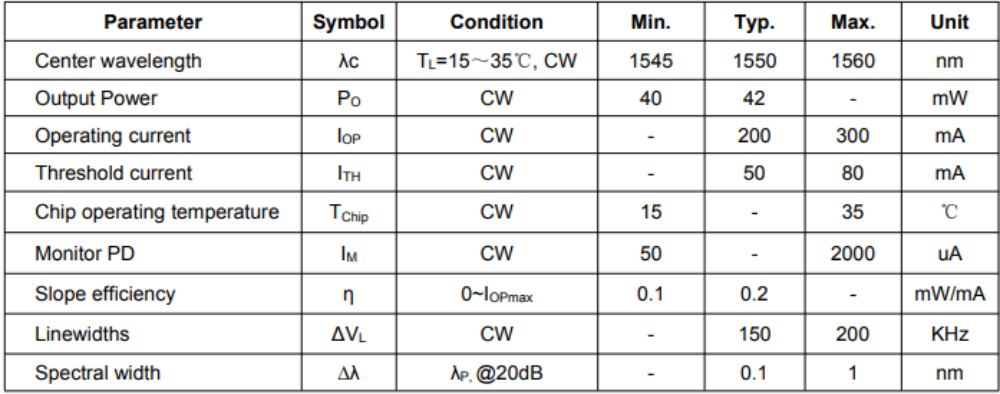

parameter:

Wavelength: 1550nm
Output power: 70mW.
Fiber specification: Polarization fiber
Operating current:300mA
TEC Voltage:4.3V
Fiber connection: FC/APC. FC/UPC. SC/APC

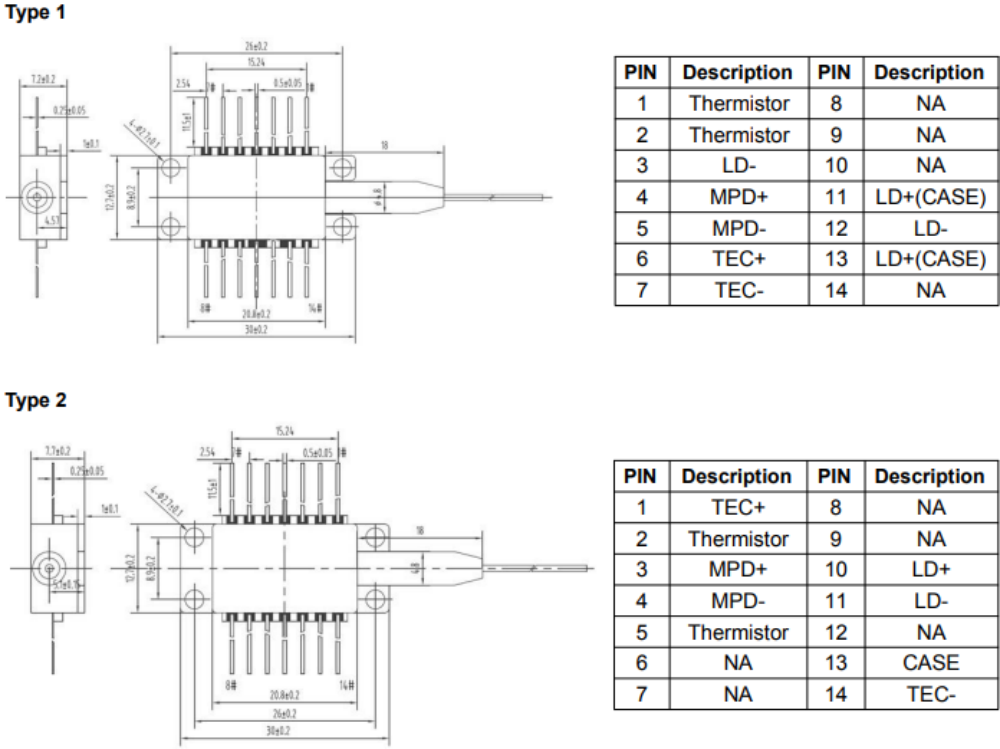

Package Type: Butterfly 14PIN

1. Description:

Narrow linewidth lasers are based on a unique single DFB chip with a unique chip design, advanced packaging technology, low linewidth and relative intensity noise, and low sensitivity to wavelength and operating current. The equipment adopts a standard 14-pin butterfly package, with high output power, high stability and high reliability.
2. Features:

Multiple quantum wells (MQW);
14-pin butterfly package;
Built-in thermistor, and TEC;
Operating temperature: -20~ +70°C;
SM or PM fiber optic pigtails. RoHS and REACH compliant
3. Applications:
Lidar;
Optical fiber communication;
fiber optic sensors;
Light source
