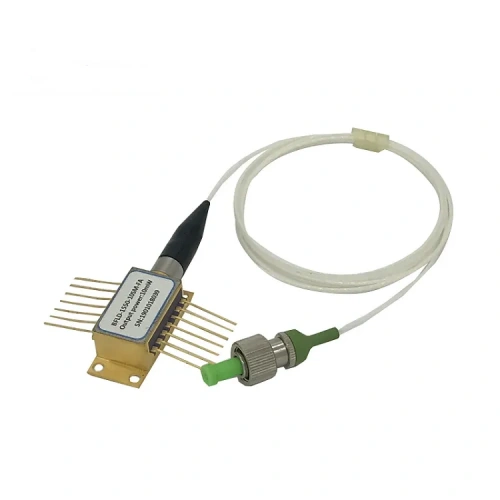

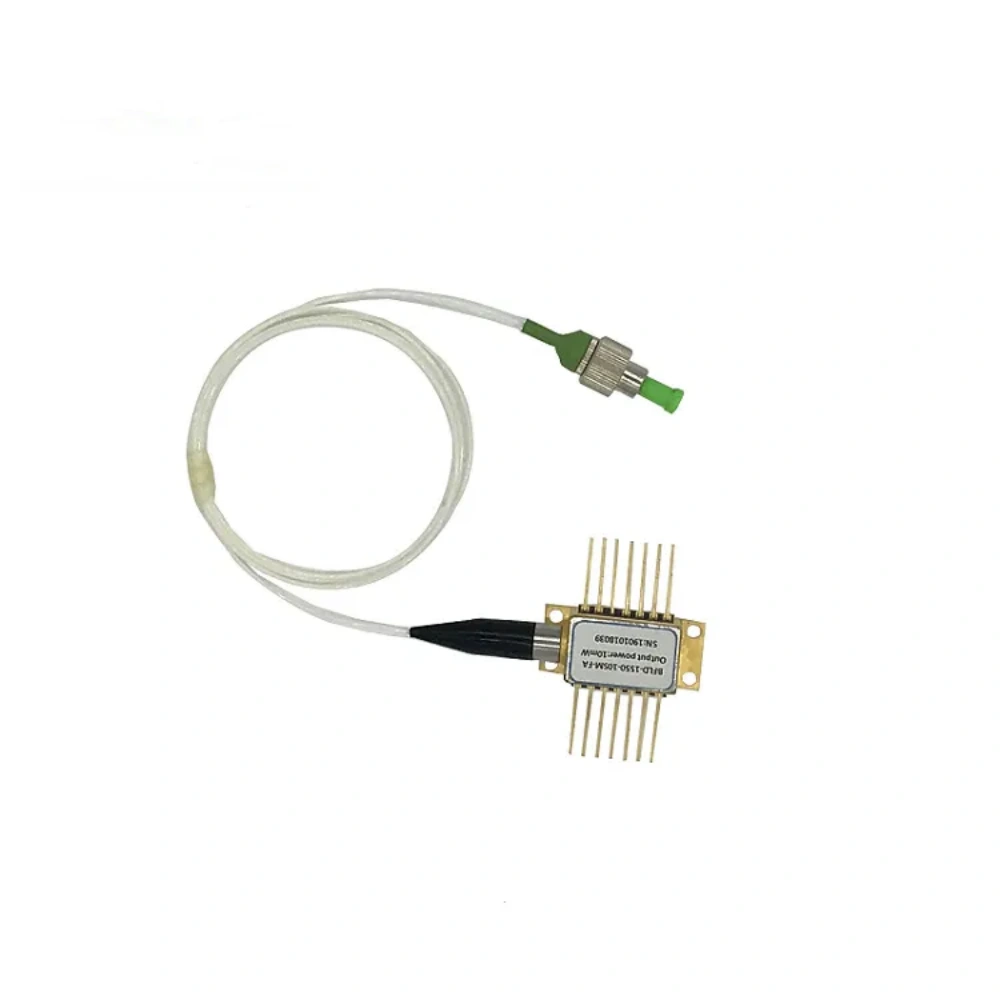

1277nm 10mW DFB 14PIN Butterfly Package Fiber Laser With TEC LAN-WDM

1277nm 10mW  DFB 14PIN Butterfly Package Fiber Laser With TEC LAN-WDM

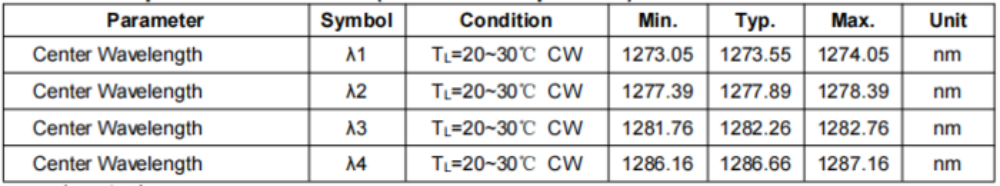

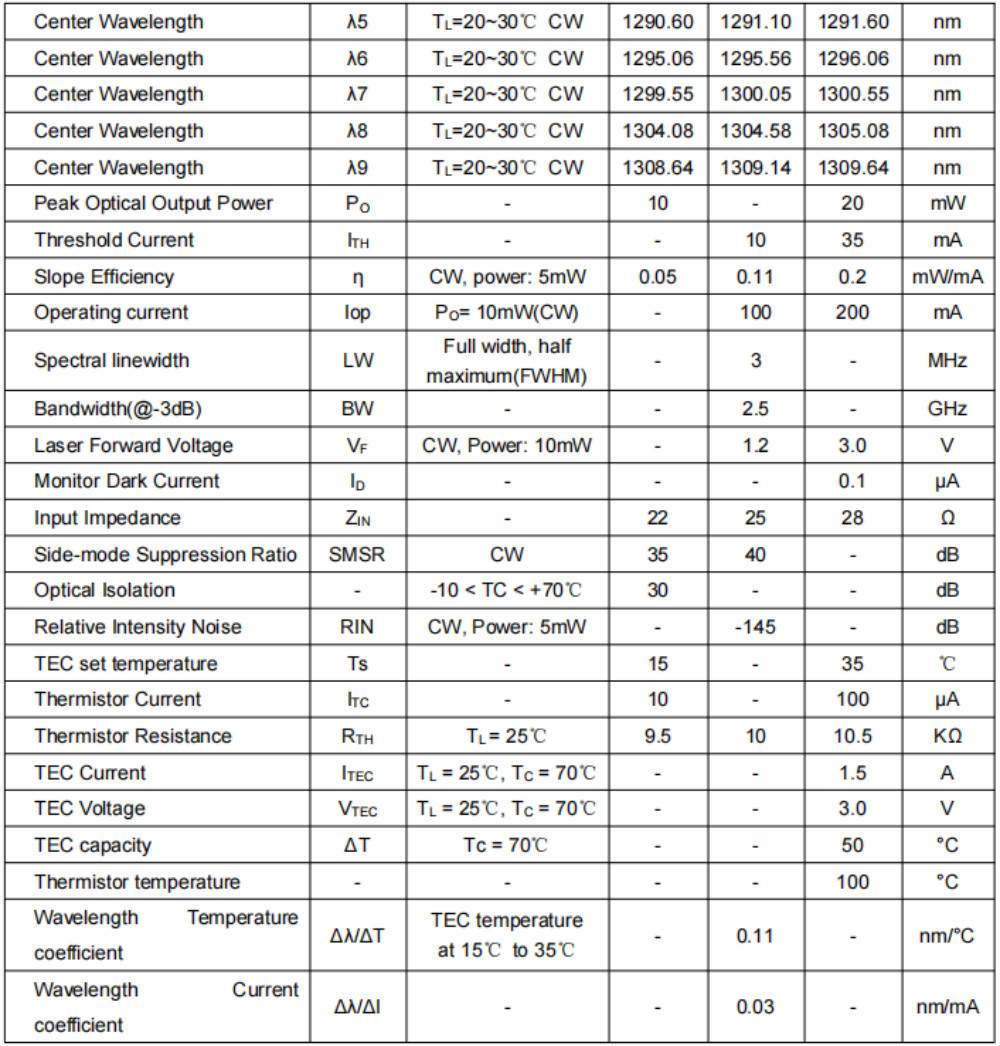

parameter:

Wavelength: 1277.89nm
Output power: 10mW.
Fiber specification: single mode. Polarization
Threshold current:35mA，
Operating current:200mA
Operating Voltage:3.0V
Fiber connection: FC/APC.
Chip type: DFB

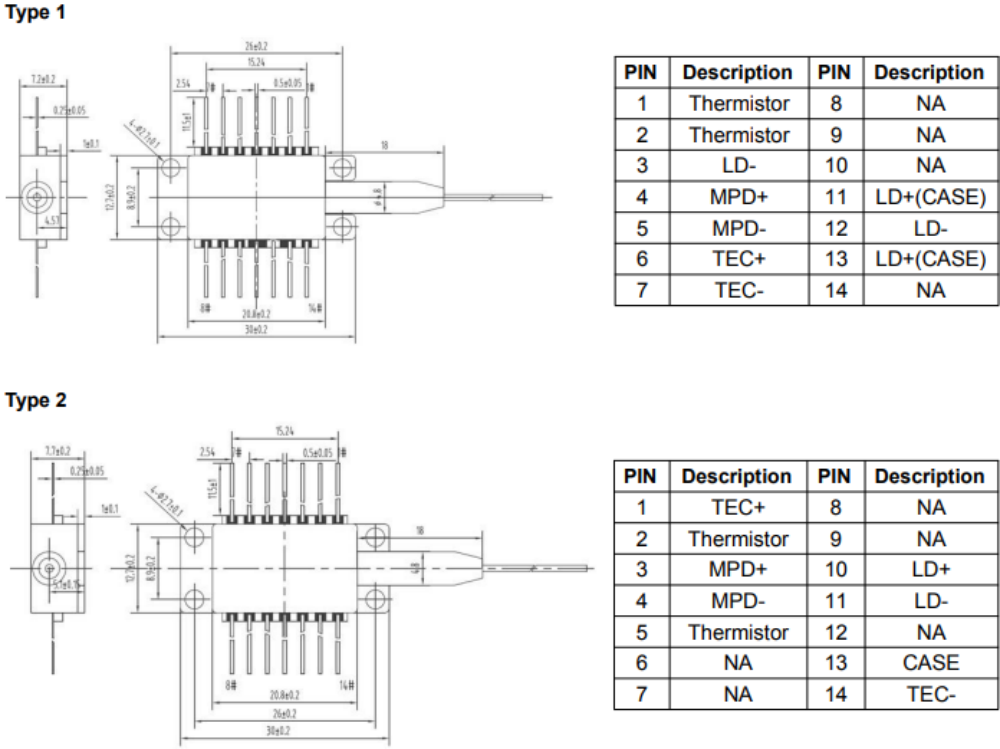

Package Type: Butterfly 14PIN

1. Product Description:

The LAN-WDM laser diodes are 1273.55nm, 1277.89nm, 1282.26nm, 1286.66nm, 1291.10nm, 1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm, and multi-quantum well (MQW) DFB lasers. The laser diode is housed in a hermetically sealed 14-pin butterfly package that contains a TEC, thermistor, monitor PD, and opto-isolator. We also have full customer selection of output power, package type and SM fiber, PM fiber and other special fibers. This module follows 10~20mW high output. Telcordia GR-468-CORE is required and RoHS compliant.

2. Features:

High output power;
high-performance multi-quantum well distributed feedback (DFB) lasers;
Industry standard 14PIN butterfly package;
Built-in TEC and optical isolator;
ITU wavelength of LAN WDM.

3. Applications:

LAN, WAN and MET;
optical sensors;
laser source;
Data Centers.
