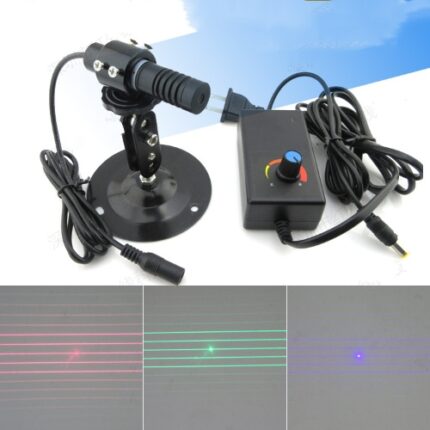

11 parallel line lasers multi line parallel adjustable linewidth laser module red green and blue

11 parallel line lasers multi line parallel adjustable linewidth laser module red green and blue

Parameter:
Output wavelength: 650nm 520nm 450nm
Die power: 100mw 50mW 100mW
Operating voltage: DC 2.8V to 5.2V
Operating current: <500mA

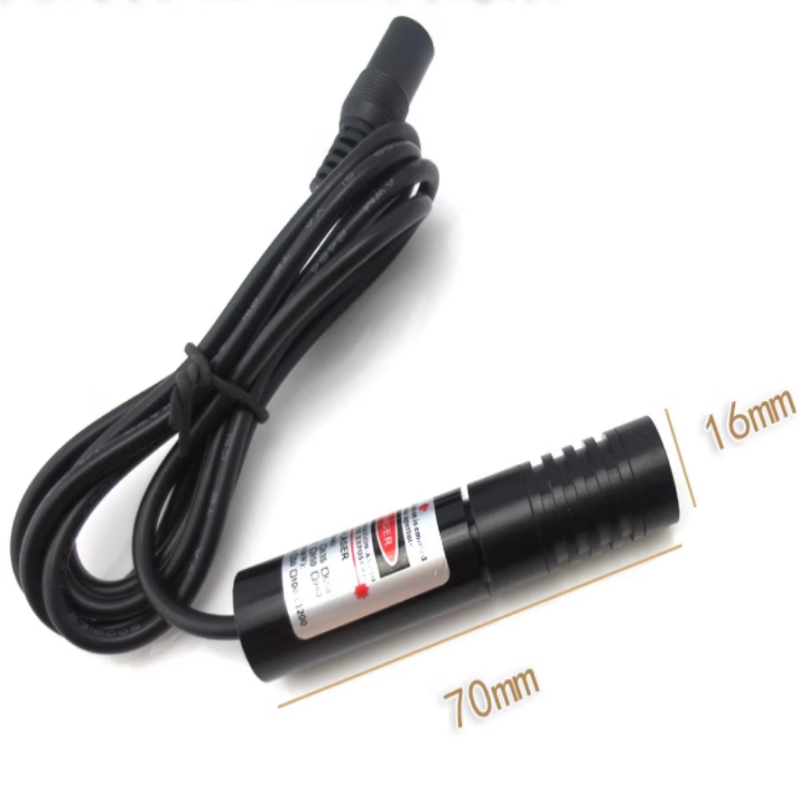

Dimensions: 16*70mm
Optical lens: Grating sheet 47 degrees (Germany)

Lens angle: 6°
At 50 cm: Line length 27 cm, edge width 27cm, line distance 2.7cm, diagonal length: 38 cm
At 100 cm: Edge line 54cm, edge width 54 cm, line distance 5.4cm, diagonal length: 76cm
At 150 cm: Line length 81 cm, edge width 81 cm, line distance 8.1cm, diagonal length: 114cm
