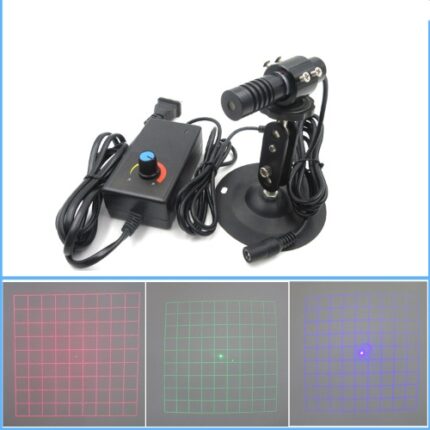

10×10=100 Grids Dot matrix Effect Red Green Blue laser module Adjustable line width laser positioning light

10×10=100 Grids Dot matrix Effect Red Green Blue laser module Adjustable line width laser positioning light

Specifications:

Lens angle: 39.62°
Number of grids: 10 x 10 = 64
Mounting height: 0~5m
Output wavelength: 650nm / 520nm / 450nm (optional)
Core power: 100MW (optional)
Working voltage: DC 2.8V to 5.2v
Working current: <500mA

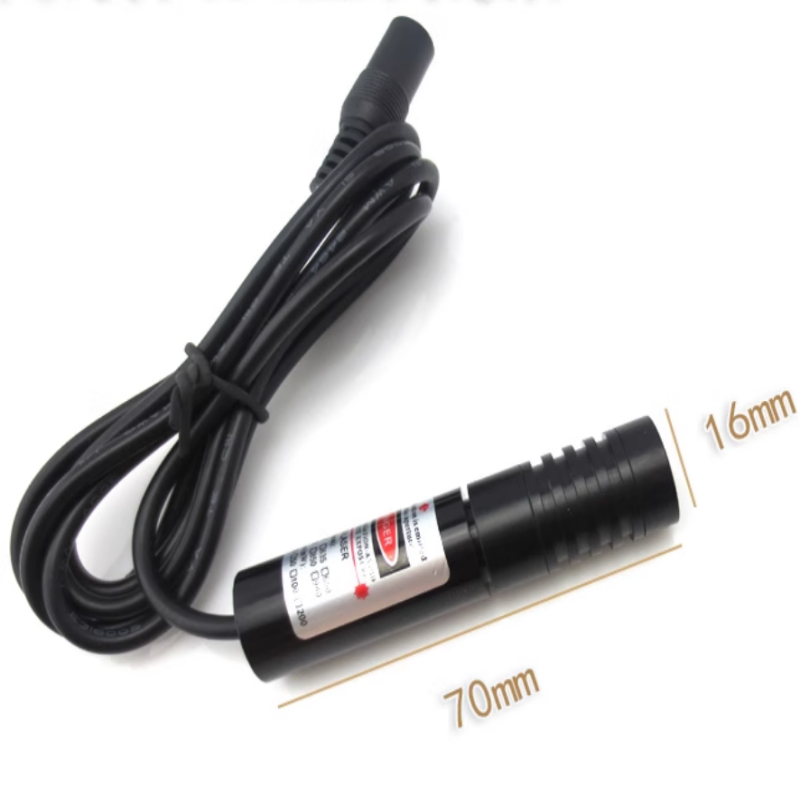

Laser dimension: 16 * 70mm (customizable)
Optical lens: grating ( Germany)

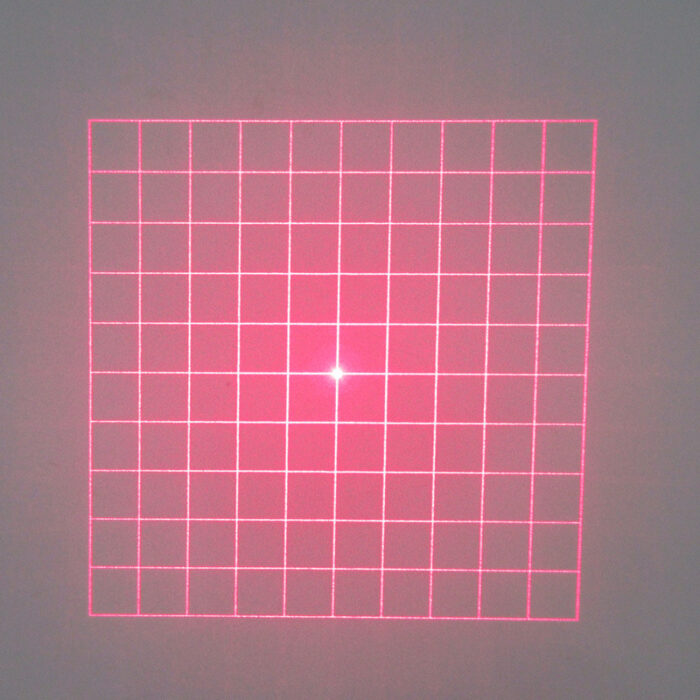

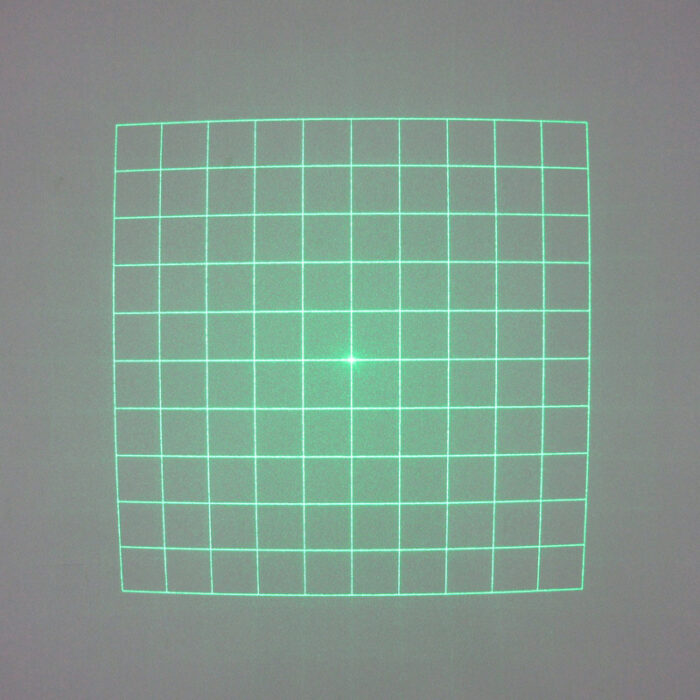

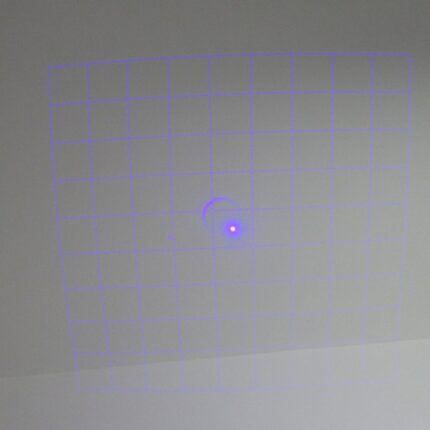

Grid size:

Lens angle: 39.62°
1, At 50cm distance, outer frame is 36cm long (single small grid side is 3.6cm long);
2, At 100cm distance, the outer frame is 72cm long (single small grid side is 7.2cm long).
